Upper B-Pillar Trim Panel Installation

Install the upper B-pillar trim panel.
Install the upper portion of the lower B-pillar trim panel to its original position.

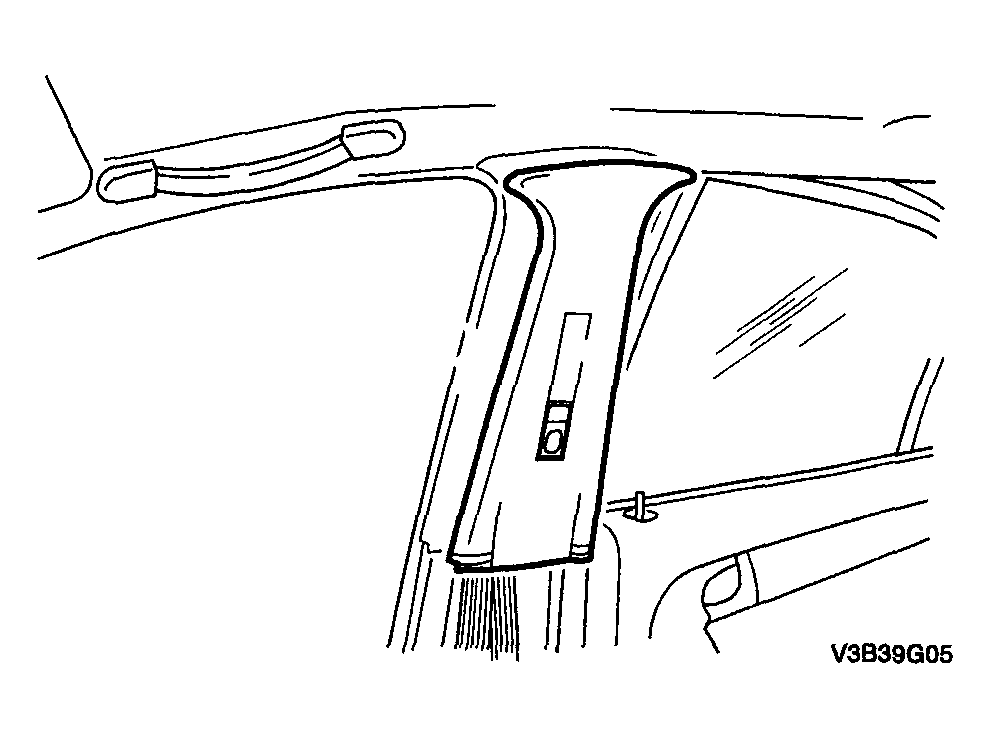

Fig 1: Installing Upper B-Pillar Trim Panel
Courtesy of SUZUKI OF AMERICA CORP.
Install the upper front seat belt anchor with the bolt.
Tighten

Tighten the seat belt anchor bolt to 38 N.m (28 lb-ft).
