Front Console Extension Removal

  1. Remove the floor console. Refer to "FLOOR CONSOLE REMOVAL ".
  2. Remove the screw and the front console extension.

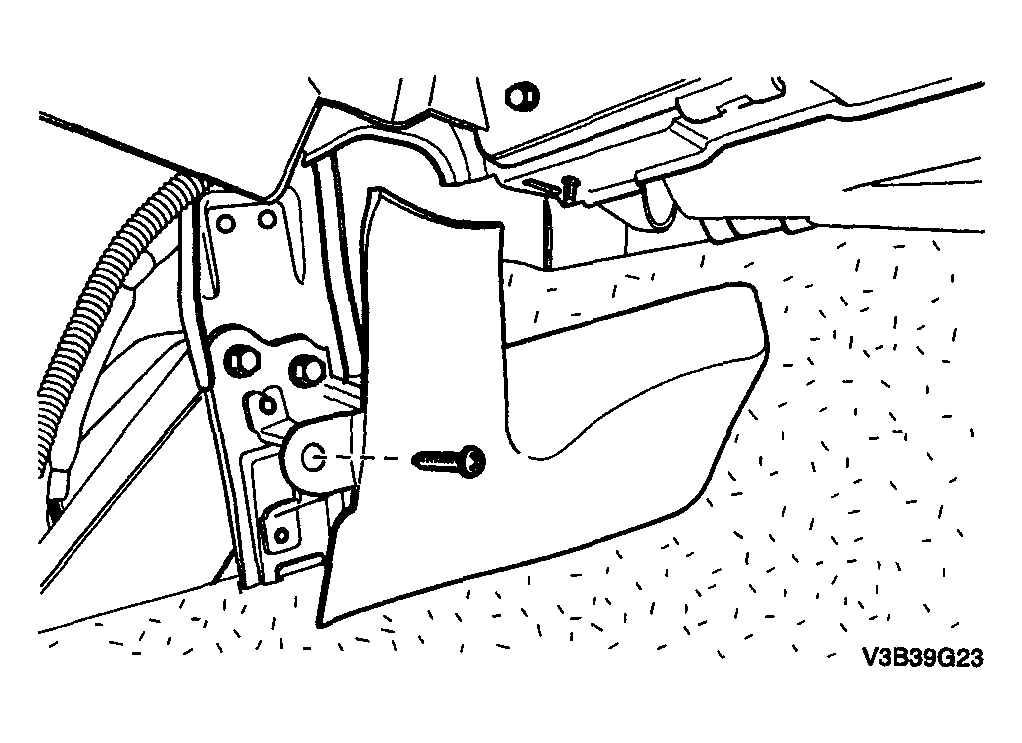

    Fig 1: Removing Screw And Front Console Extension
    G04096374Courtesy of SUZUKI OF AMERICA CORP.
