Front Console Extension Installation

  1. Install the front console extension with the screw.
  2. Install the floor console. Refer to "FLOOR CONSOLE INSTALLATION ".

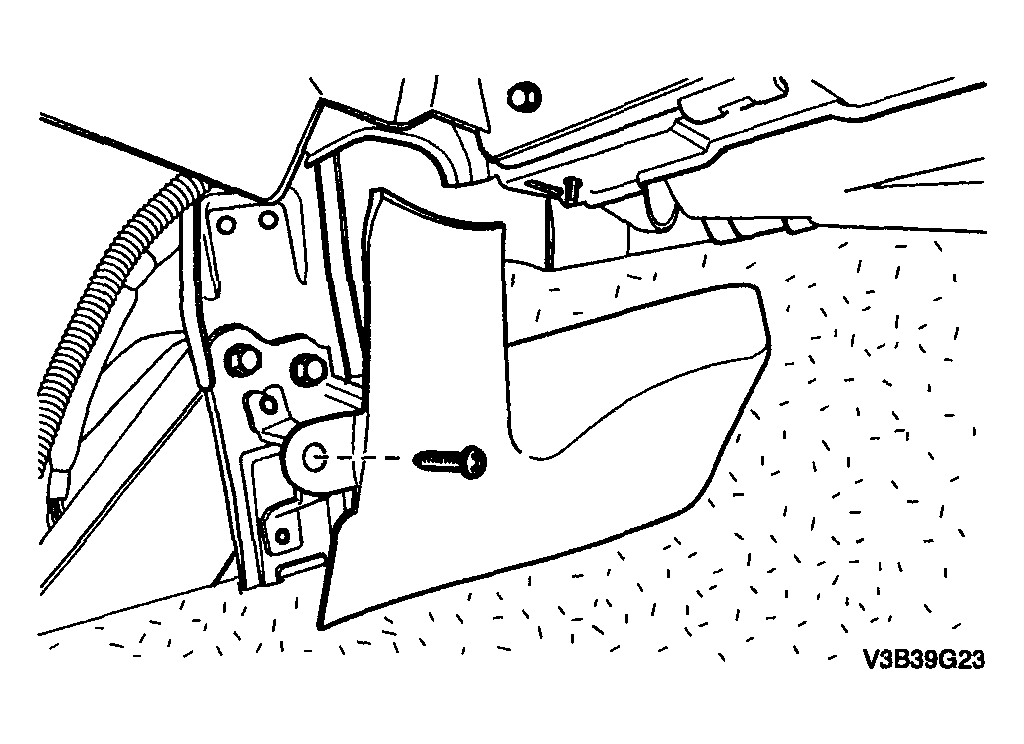

    Fig 1: Installing Front Console Extension With Screw
    G04096375Courtesy of SUZUKI OF AMERICA CORP.
