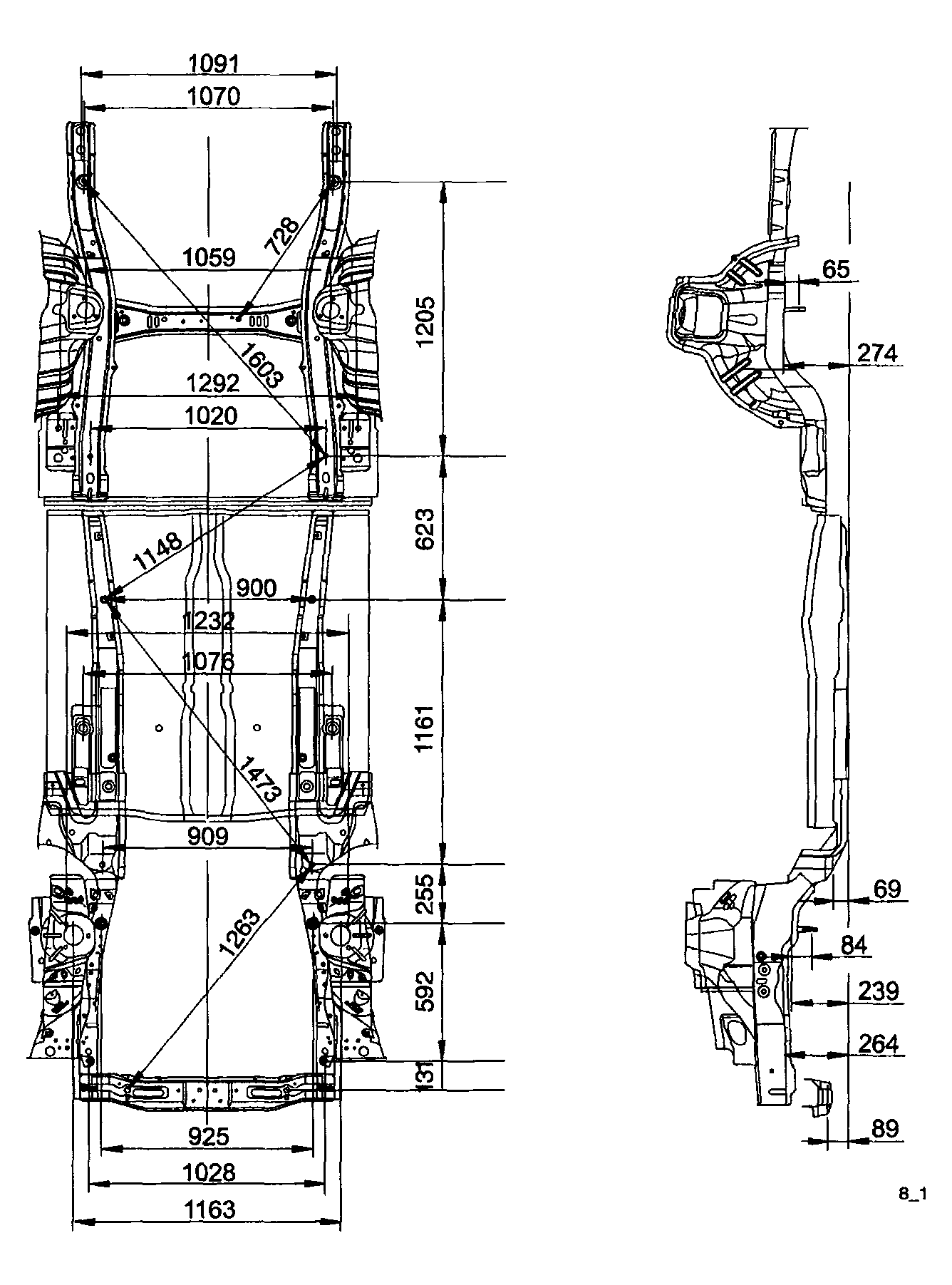

Under Body Dimension

Fig 1: Under Body Dimension Specifications
G04096494Courtesy of SUZUKI OF AMERICA CORP.

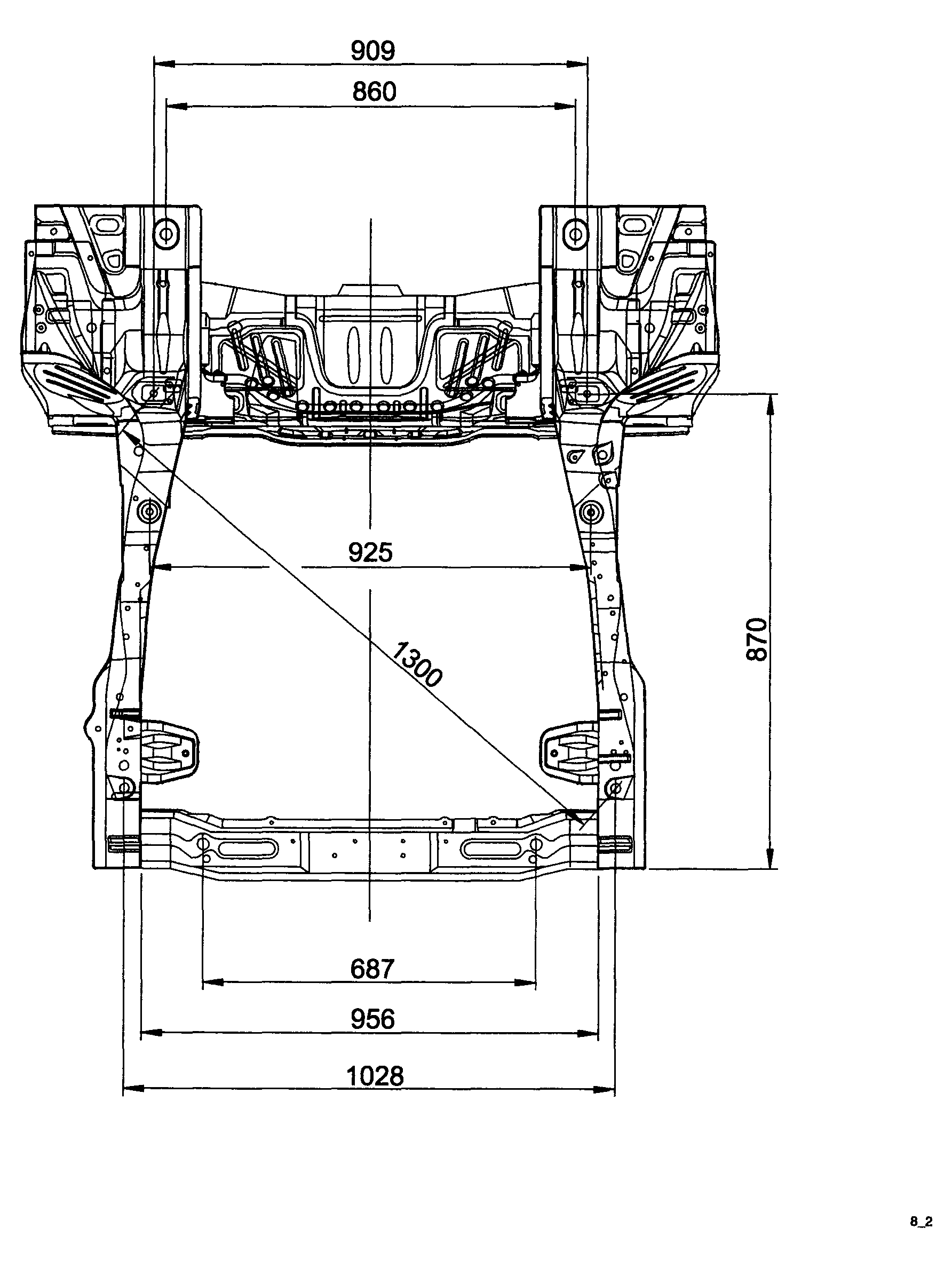

Front Frame

Fig 2: Front Frame Specifications
G04096495Courtesy of SUZUKI OF AMERICA CORP.

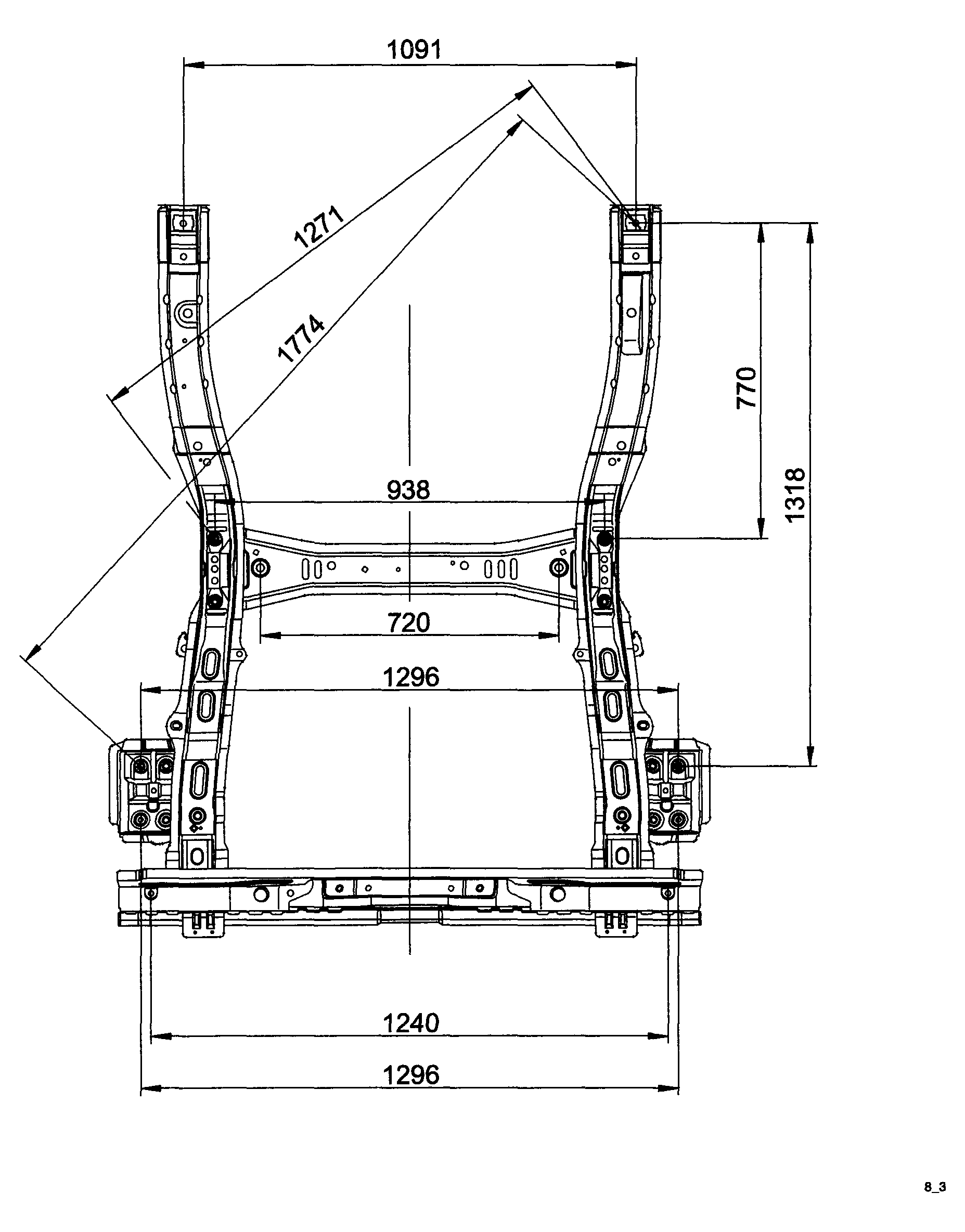

Rear Frame

Fig 3: Rear Frame Specifications
G04096496Courtesy of SUZUKI OF AMERICA CORP.
