Body Dimension

Front Panel

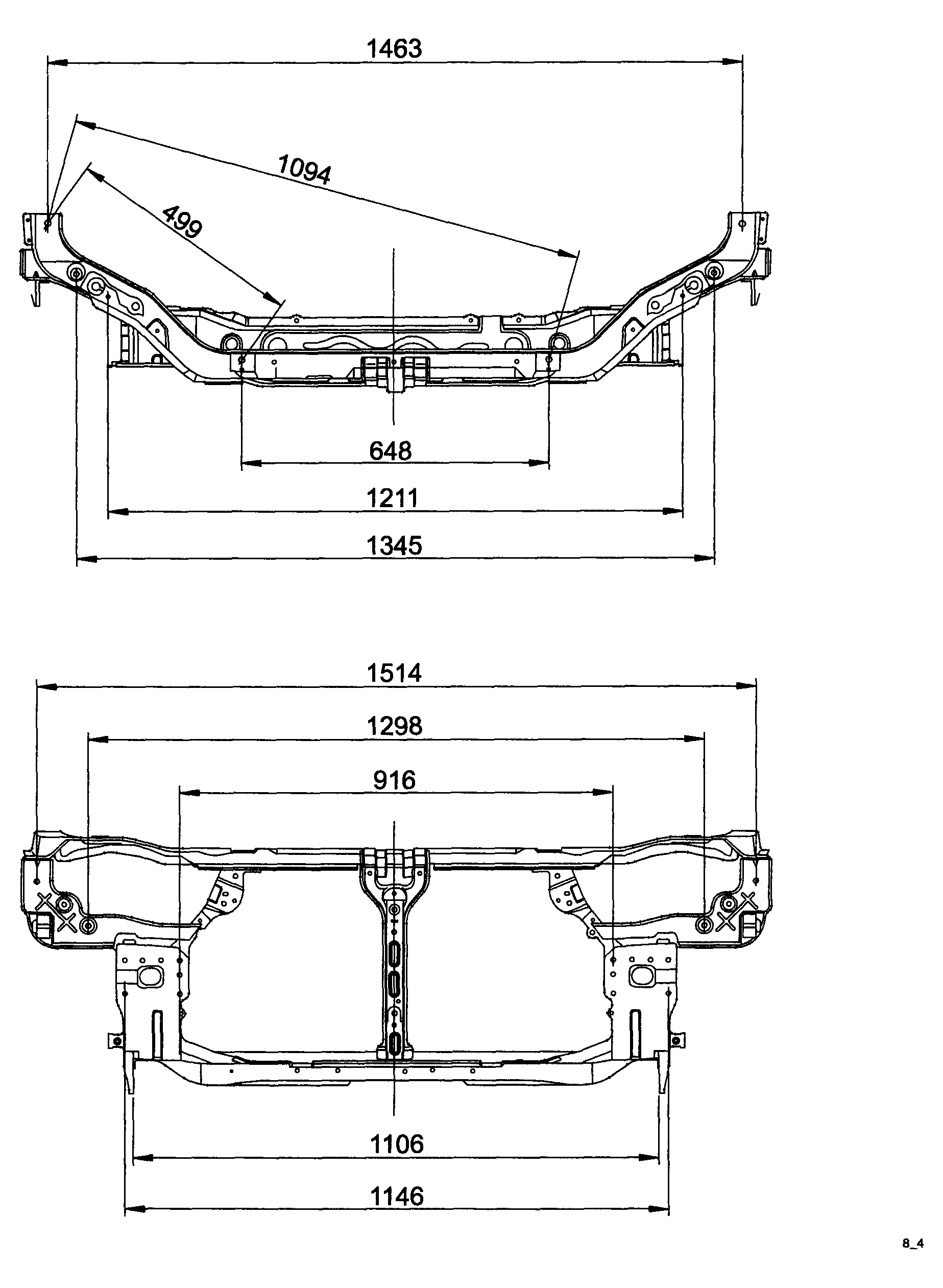

Fig 1: Body Dimension - Front Panel

Courtesy of SUZUKI OF AMERICA CORP.

Engine Room

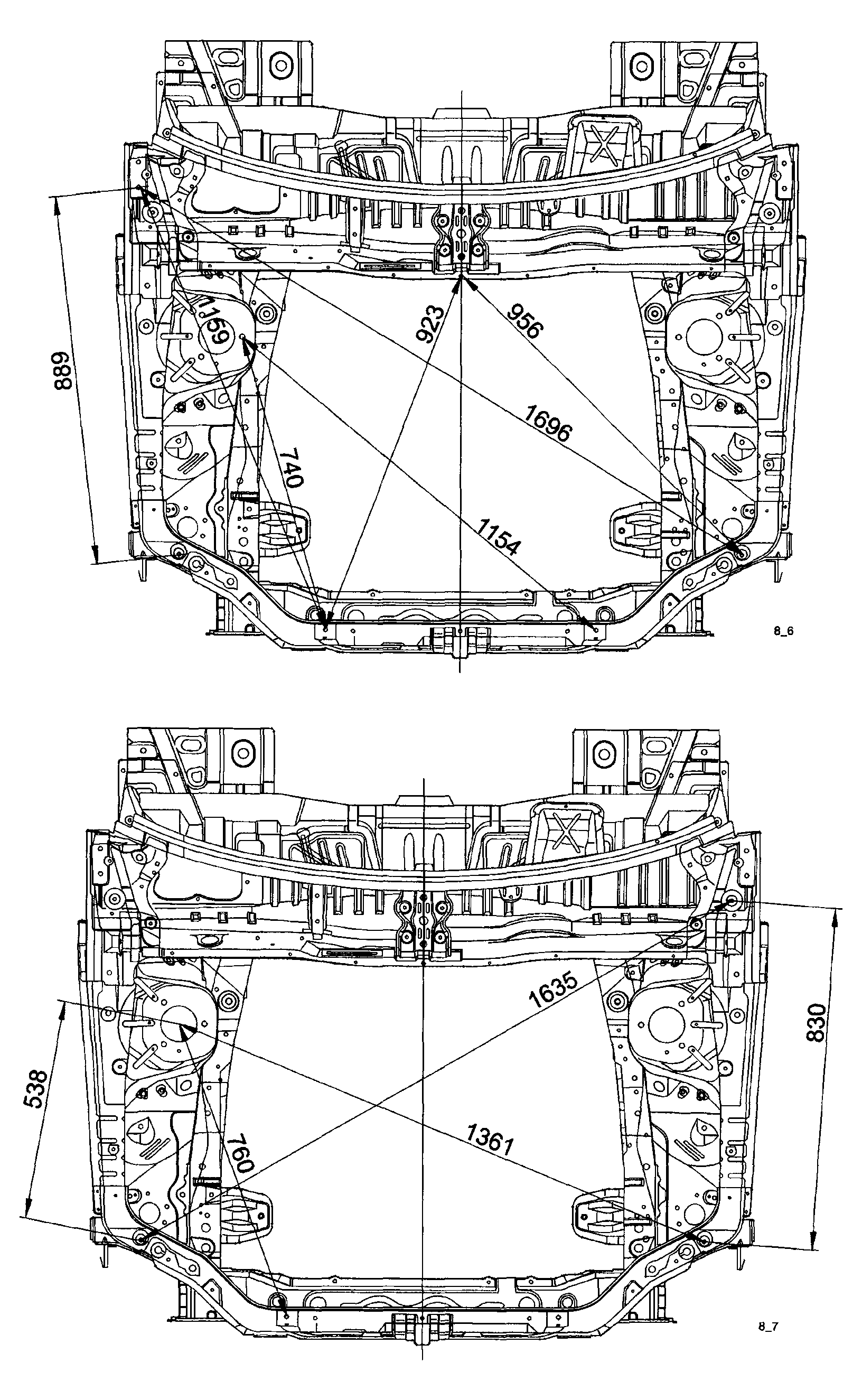

Fig 2: Body Dimension - Engine Room (1 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

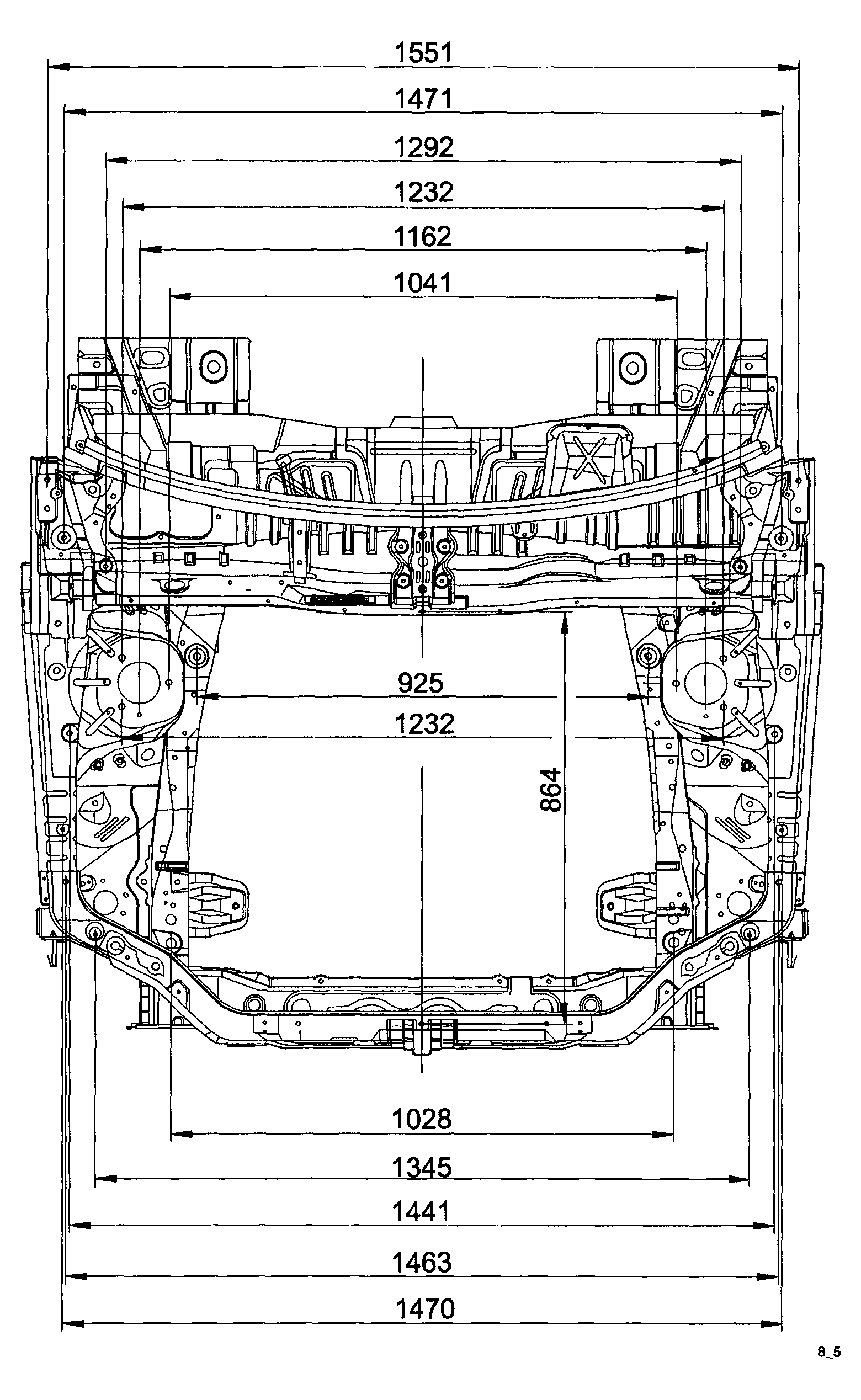

Fig 3: Body Dimension - Engine Room (2 Of 2)

Courtesy of SUZUKI OF AMERICA CORP.

Back Panel Lower

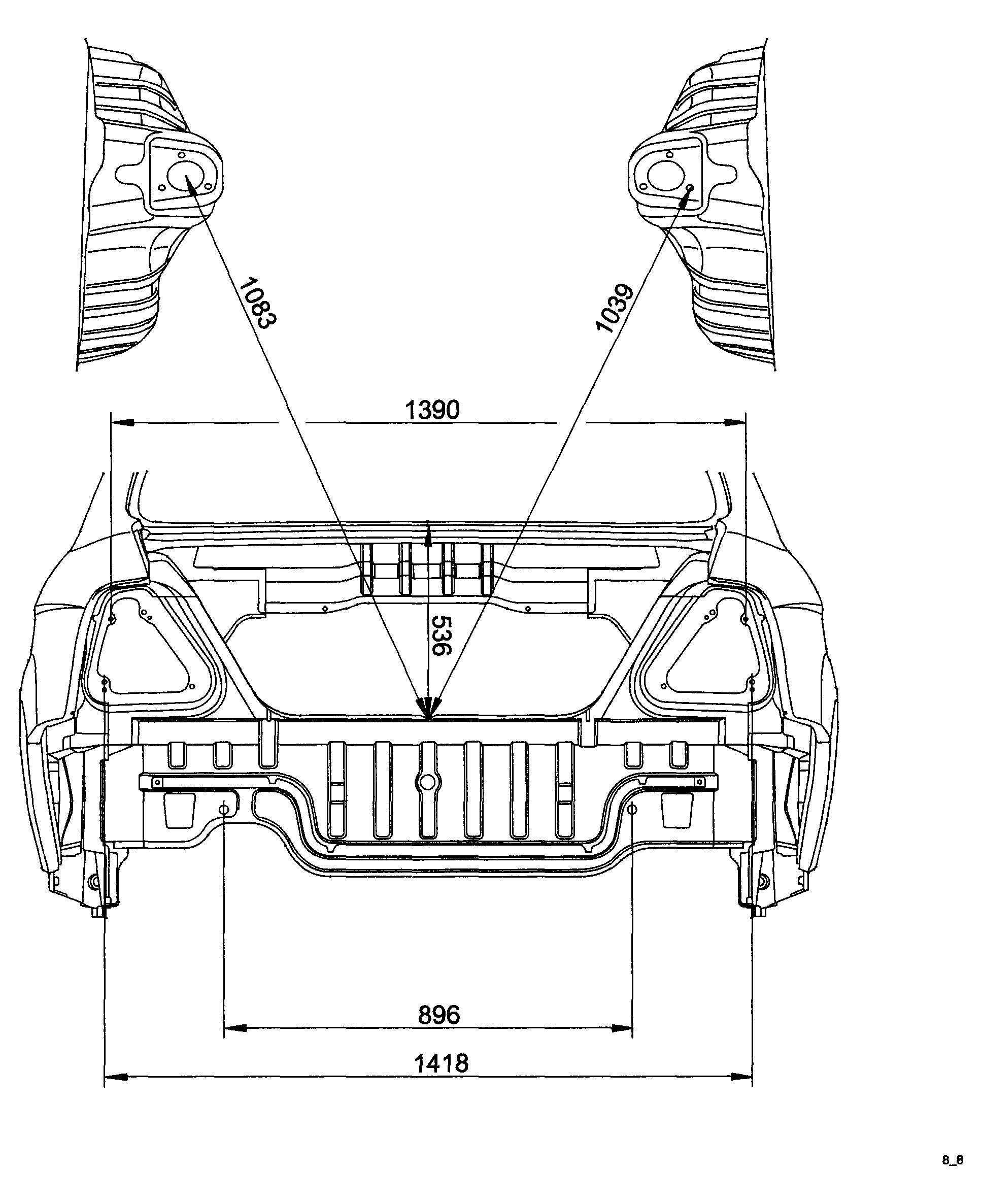

Fig 4: Body Dimension - Back Panel Lower

Courtesy of SUZUKI OF AMERICA CORP.

Side Outer

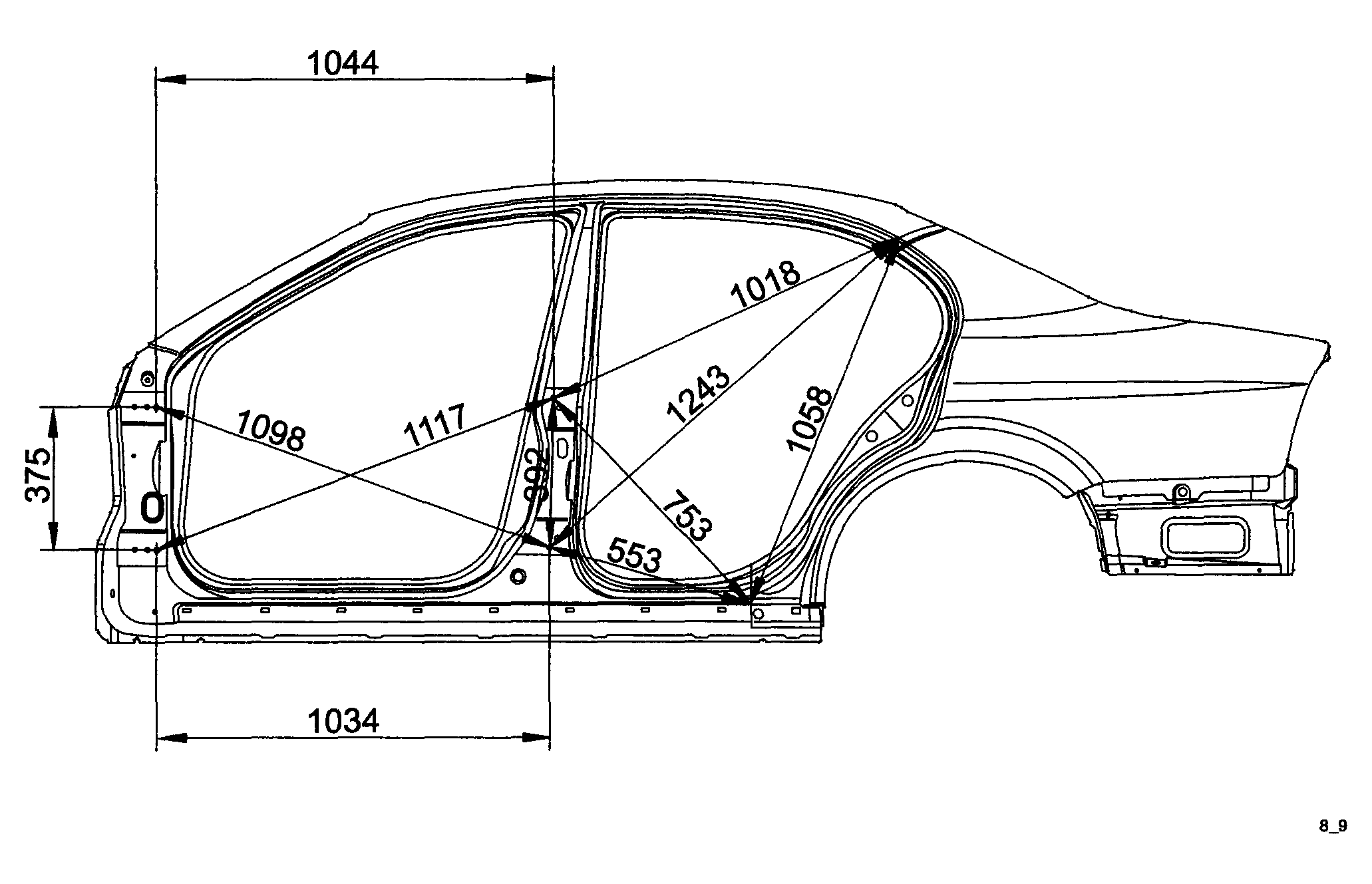

Fig 5: Body Dimension - Side Outer

Courtesy of SUZUKI OF AMERICA CORP.

Windshield and Rear Glass

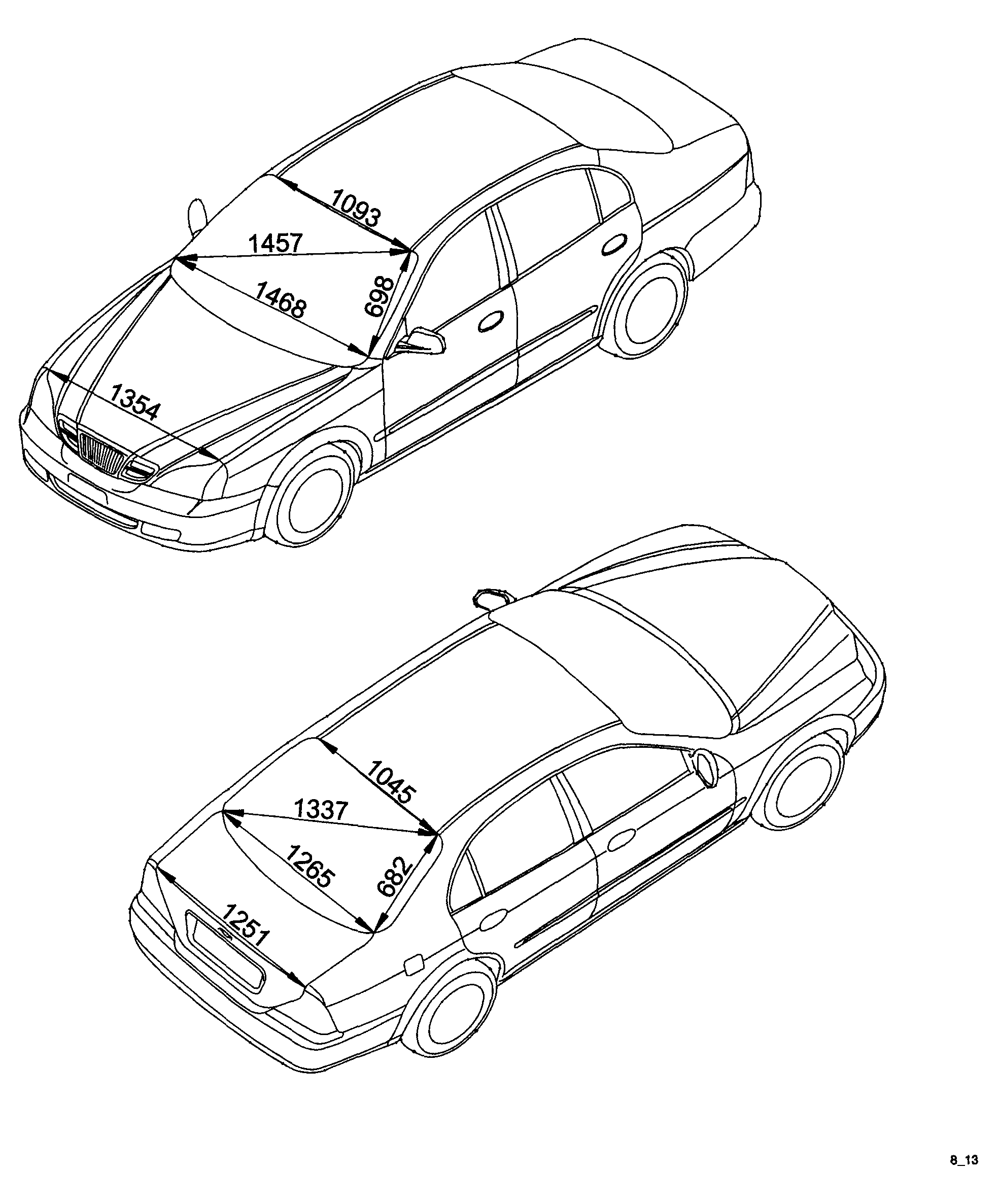

Fig 6: Body Dimension - Windshield And Rear Glass

Courtesy of SUZUKI OF AMERICA CORP.
