Engine Under Covers Installation

  1. Install the engine under cover with the bolts.

    Tighten

    Tighten the engine under cover bolts to 10 N.m (89 lb-in).

  2. Lower the vehicle.

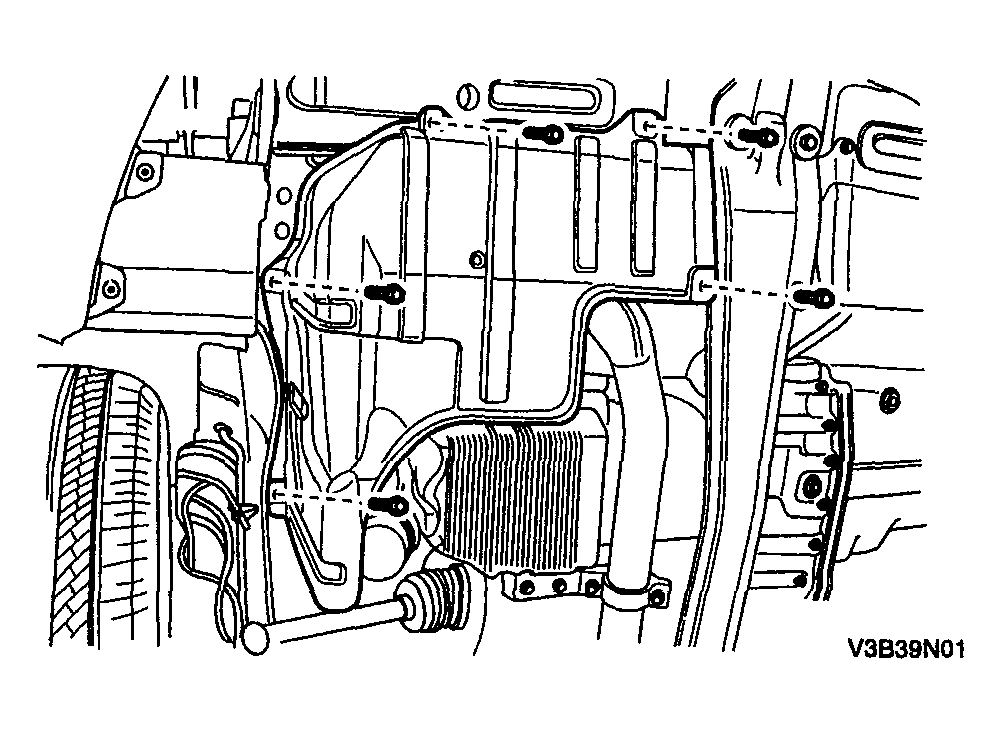

    Fig 1: Installing Engine Under Cover With Bolts
    G04096580Courtesy of SUZUKI OF AMERICA CORP.
