Siren Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the siren electrical connector.
  3. Remove the siren bracket mounting bolt.
  4. Remove the siren.

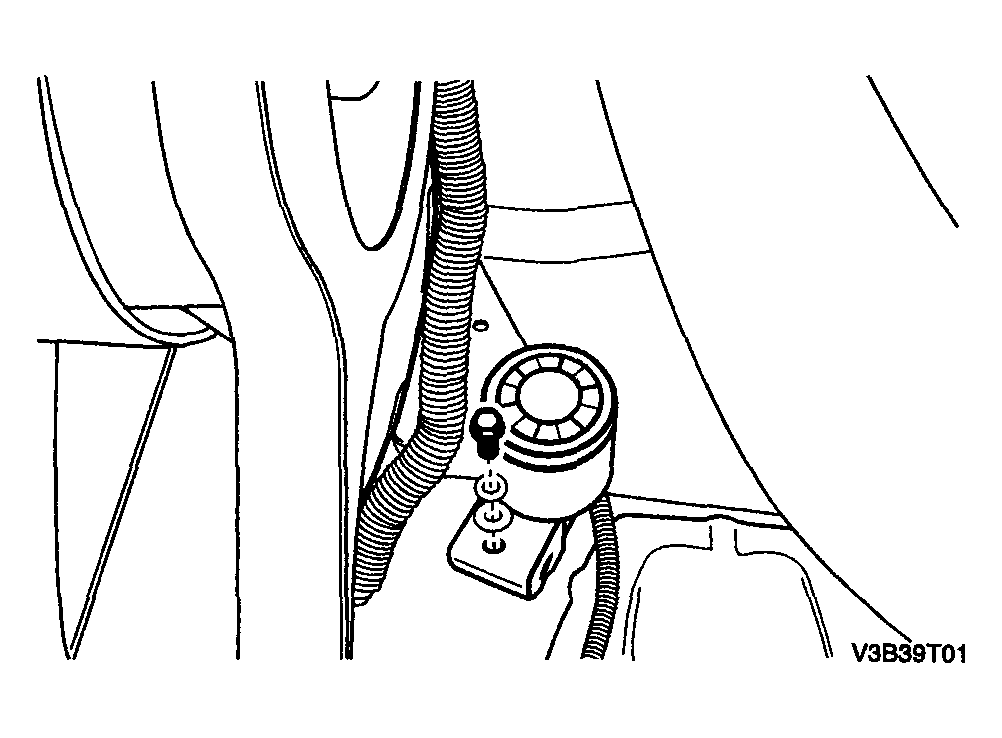

    Fig 1: Removing Siren Bracket Mounting Bolt
    G04096271Courtesy of SUZUKI OF AMERICA CORP.
