Outside Door Handle Removal

  1. Remove the door seal trim. Refer to "DOOR SEAL TRIM REMOVAL ".
  2. Disconnect the outside door handle and the lock rods.
  3. Remove the bolts and the door handle.

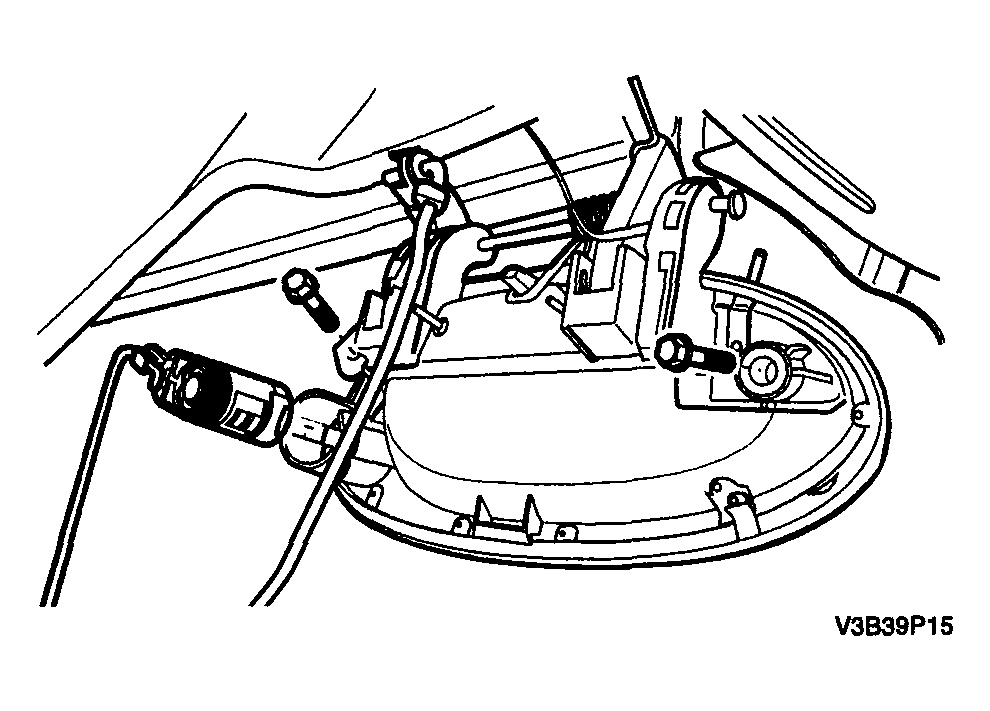

    Fig 1: Removing Bolts And Door Handle
    G04096262Courtesy of SUZUKI OF AMERICA CORP.
