Luggage Compartment Lock Striker Installation
- Connect the lock release cable.CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

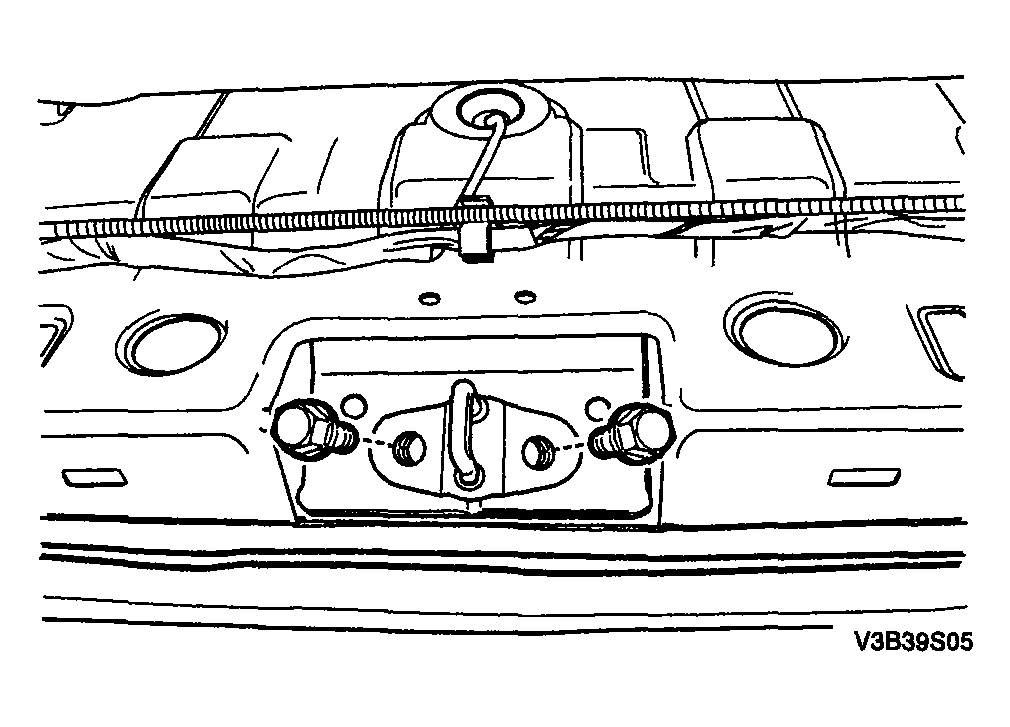

- Install the lock striker with the bolts.
Tighten
Tighten the luggage compartment lock striker bolts to 8 N.m (71 lb-in).
- Install the luggage compartment rear lower cover. Refer to "LUGGAGE COMPARTMENT REAR LOW COVER INSTALLATION ".
