Luggage Compartment Lock Installation

  1. Connect the lock rod.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the luggage compartment lock with the screws.

    Tighten

    Tighten the luggage compartment lock screws to 8 N.m (71 lb-in).

  3. Connect the electrical connector.
  4. Install the luggage compartment lock cover.
  5. Connect the negative battery cable.

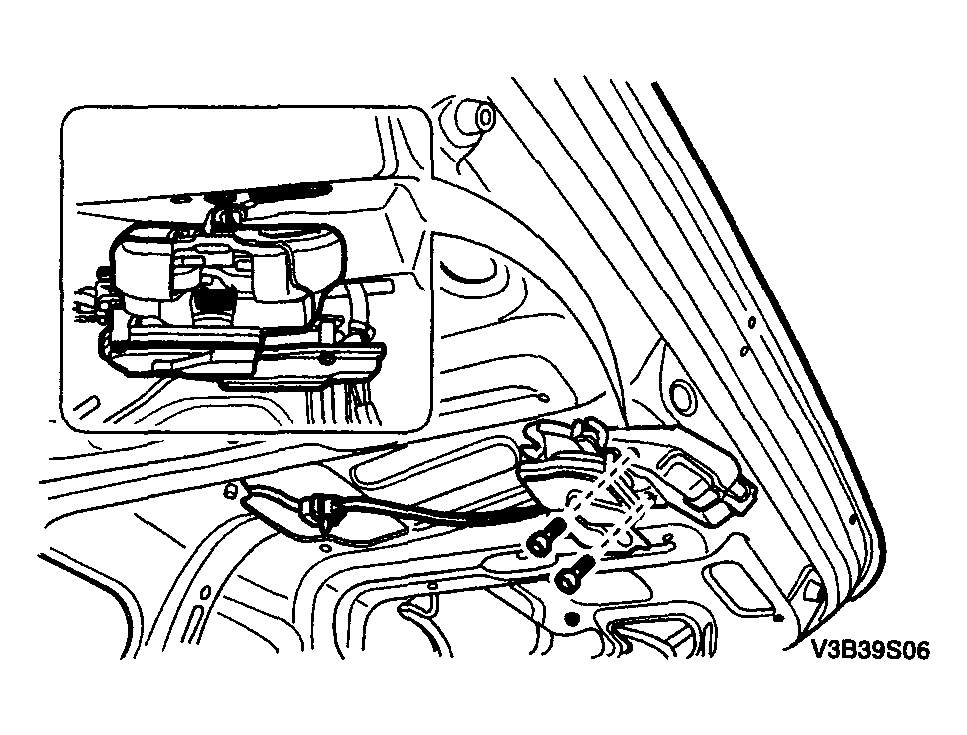

    Fig 1: Installing Luggage Compartment Lock With Screws
    G04096278Courtesy of SUZUKI OF AMERICA CORP.
