Front Door Lock Removal

  1. Disconnect the negative battery cable.
  2. Remove the seal trim. Refer to "DOOR SEAL TRIM REMOVAL ".
  3. Remove the screws and the front door lock.
  4. Disconnect the lock rods.
  5. Disconnect the electrical connector.

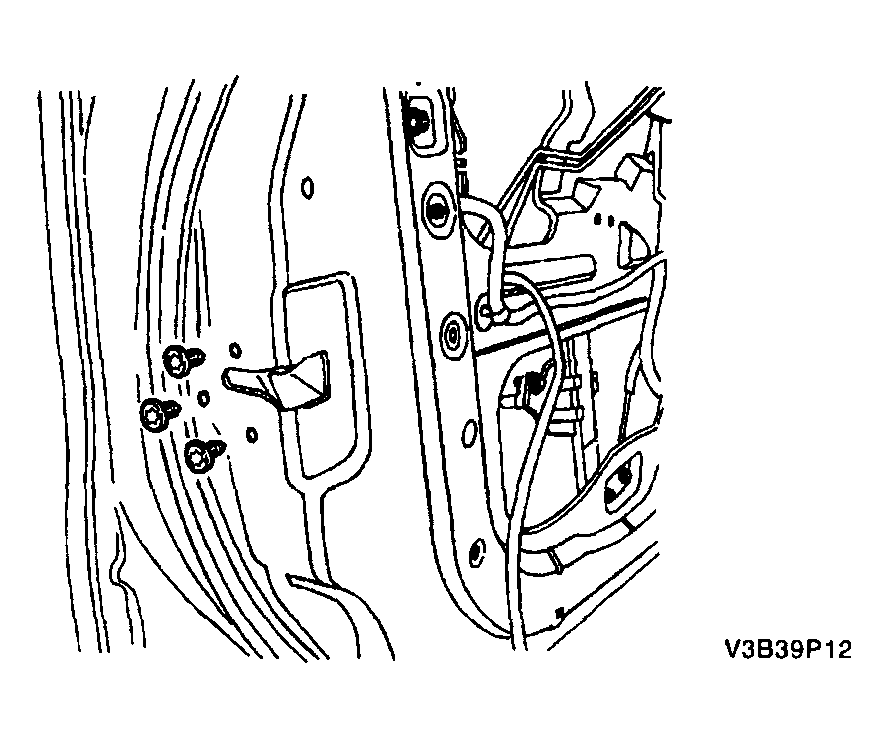

    Fig 1: Removing Screws And Front Door Lock
    G04096254Courtesy of SUZUKI OF AMERICA CORP.
