Door Lock Cylinder Installation

  1. Install the lock cylinder with the retaining clip.
  2. Connect the outside door handle lock rod.
  3. Install the door seal trim. Refer to "DOOR SEAL TRIM INSTALLATION ".

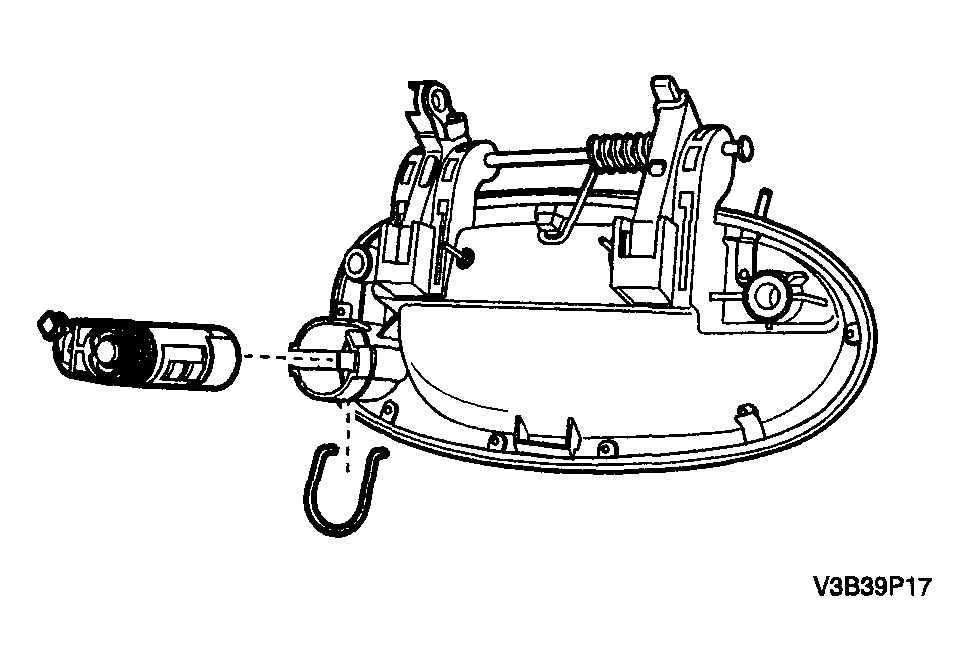

    Fig 1: Installing Lock Cylinder With Retaining Clip
    G04096267Courtesy of SUZUKI OF AMERICA CORP.
