Childproof Rear Door Lock Installation

  1. Connect the electrical connector.
    CAUTION: Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.
  2. Install the rear door lock with the screws.

    Tighten

    Tighten the rear door lock screws to 10 N.m (89 lb-in).

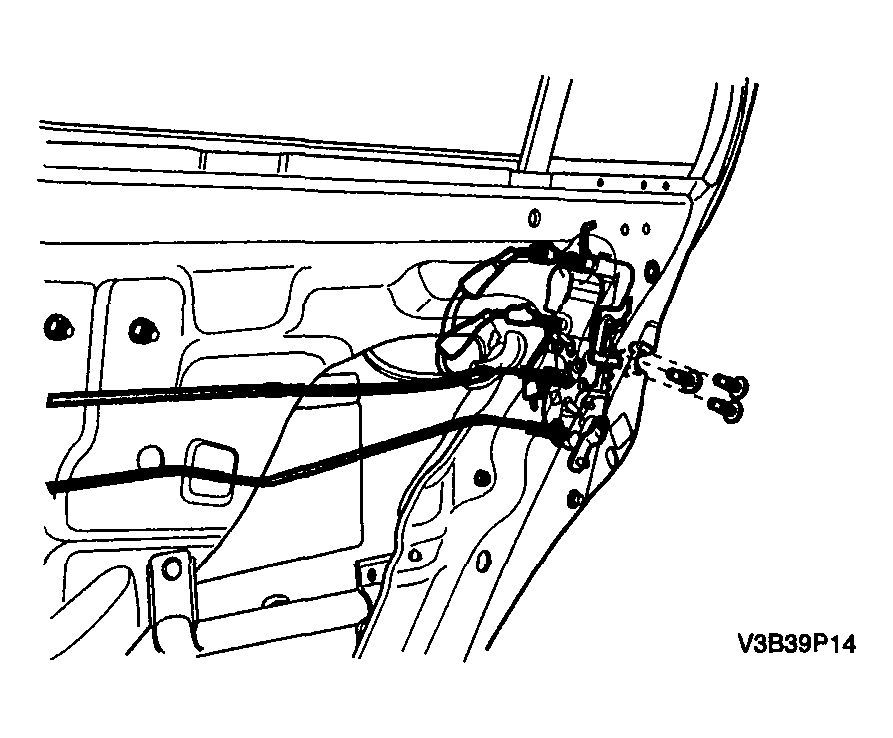

    Fig 1: Installing Rear Door Lock With Screws
    G04096258Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the lock rods.
  4. Install the guide rail with the bolts and the screw.

    Tighten

    Tighten the rear door guide rail screw to 4 N.m (35 lb-in).

    Tighten the rear door guide rail bolts to 10 N.m (89 lb-in).

  5. Install the door seal trim. Refer to "DOOR SEAL TRIM INSTALLATION ".
  6. Connect the negative battery cable.
    Fig 2: Installing Guide Rail With Bolts And Screw
    G04096259Courtesy of SUZUKI OF AMERICA CORP.
