Windshield Wipers and Washer System Diagram

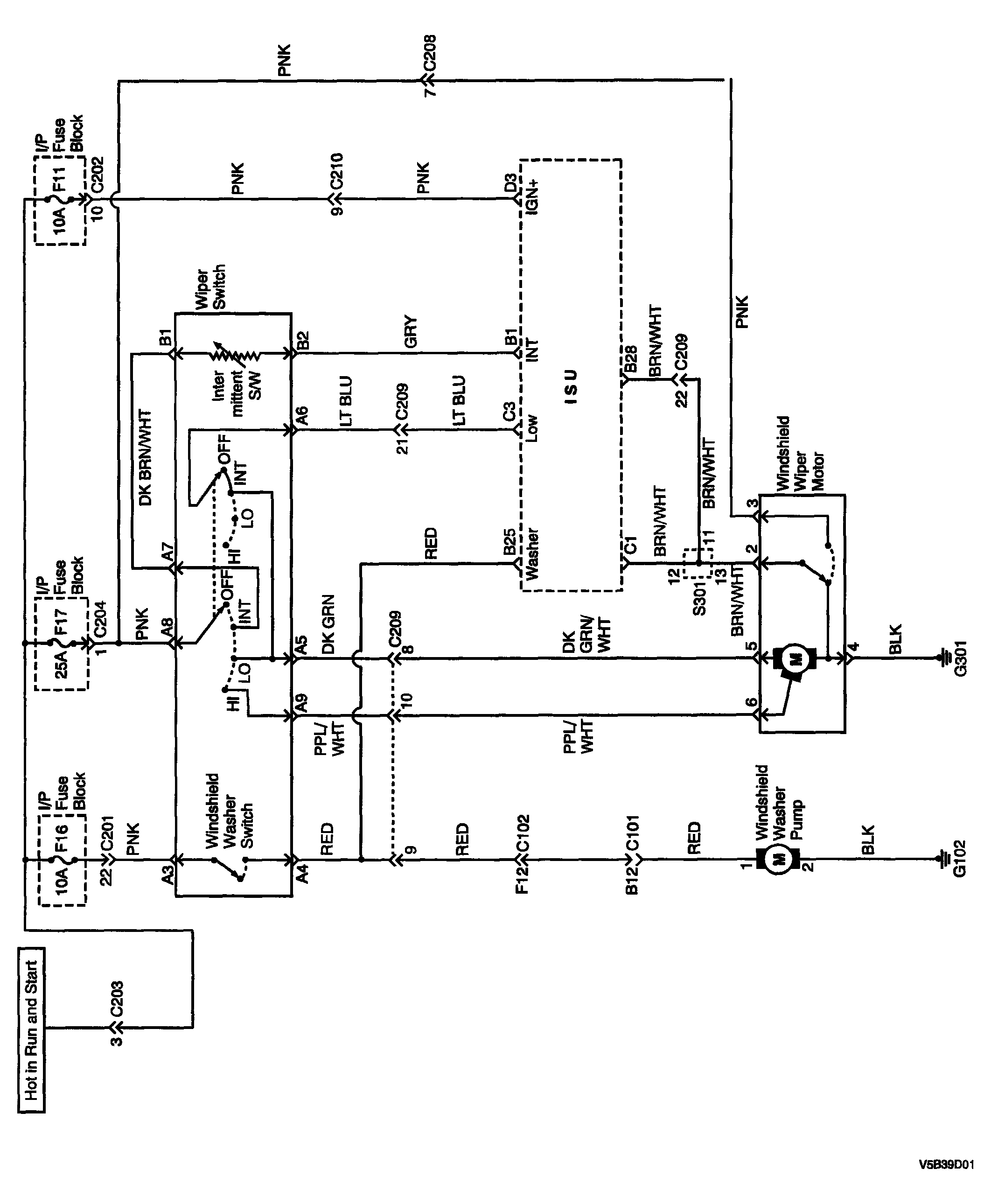

Fig 1: Windshield Wipers And Washer System Diagram
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
