Windshield Washer Reservoir Installation
CAUTION:
Dissimilar metals in direct contact with each other may corrode rapidly. Make sure to use the correct fasteners to prevent premature corrosion.

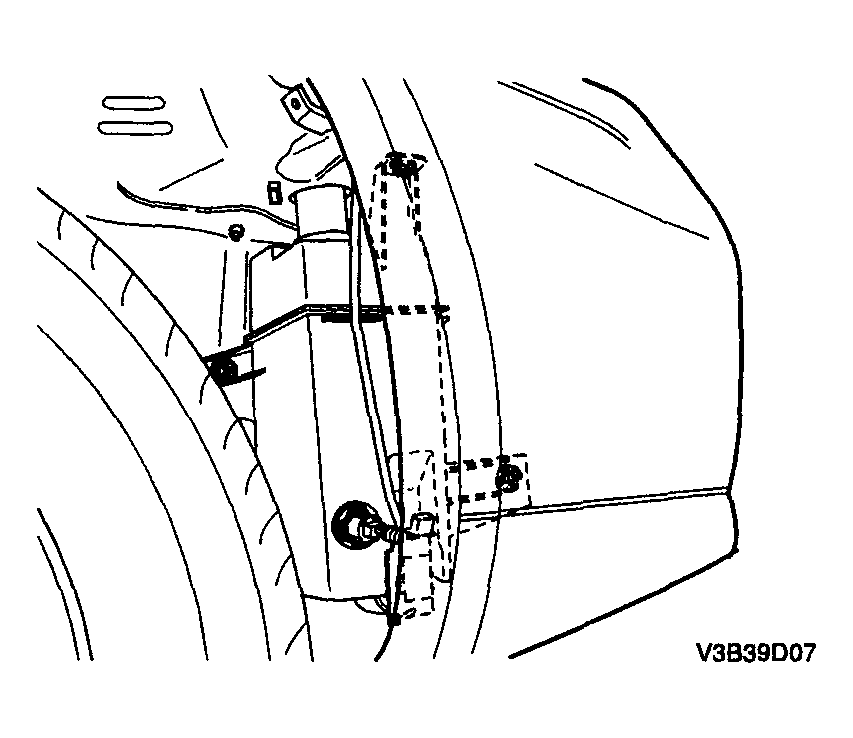

- Install the reservoir with the bolts.
Tighten
Tighten the washer fluid reservoir bolts to 9 N.m (80 lb-in).
- Connect the electrical connector.
- Connect the washer hose to the washer pump.
- Install the front wheel well splash shield. Refer to "FRONT WHEEL WELL SPLASH SHIELD INSTALLATION ".
- Install the front right wheel. Refer to "WHEEL INSTALLATION ".
- Connect the negative battery cable.
