Windshield Washer Hoses Removal

  1. Open the hood.
  2. Disconnect the windshield washer hose from the washer nozzles on the hood.
  3. Remove the front right wheel. Refer to "WHEEL REMOVAL ".
  4. Remove the front wheel well splash shield. Refer to "FRONT WHEEL WELL SPLASH SHIELD REMOVAL ".
  5. Disconnect the washer hose from the washer reservoir.
  6. Remove the washer hose.

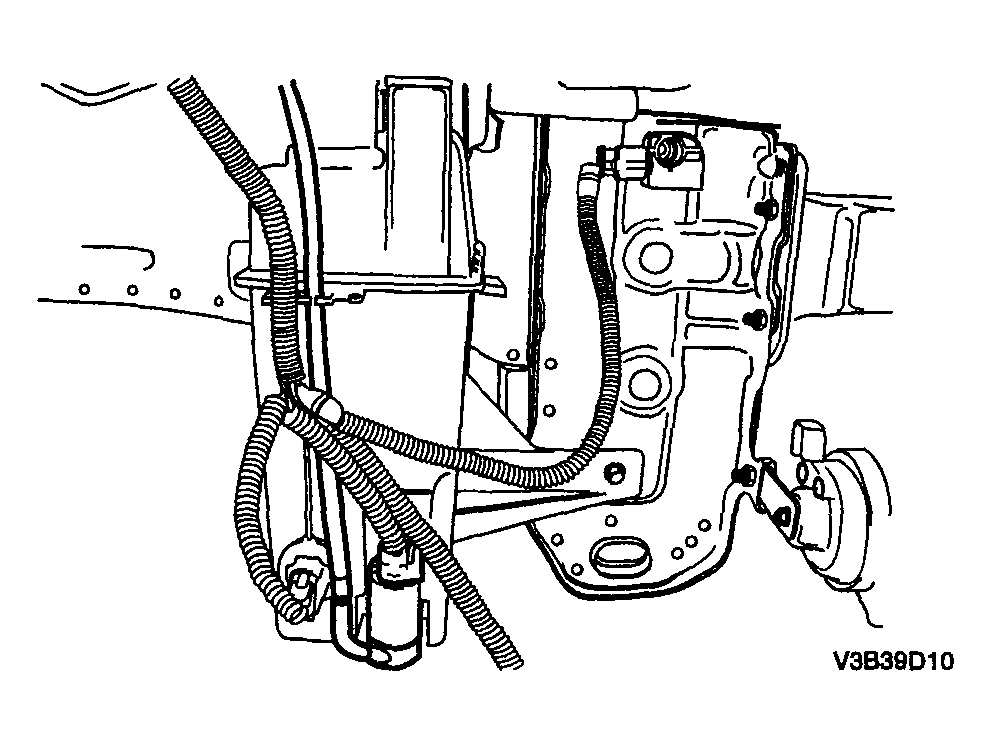

    Fig 1: Disconnecting Washer Hose From Washer Reservoir
    G04096203Courtesy of SUZUKI OF AMERICA CORP.
