DTC C0550 Input Failure of Vehicle Speed: Notes

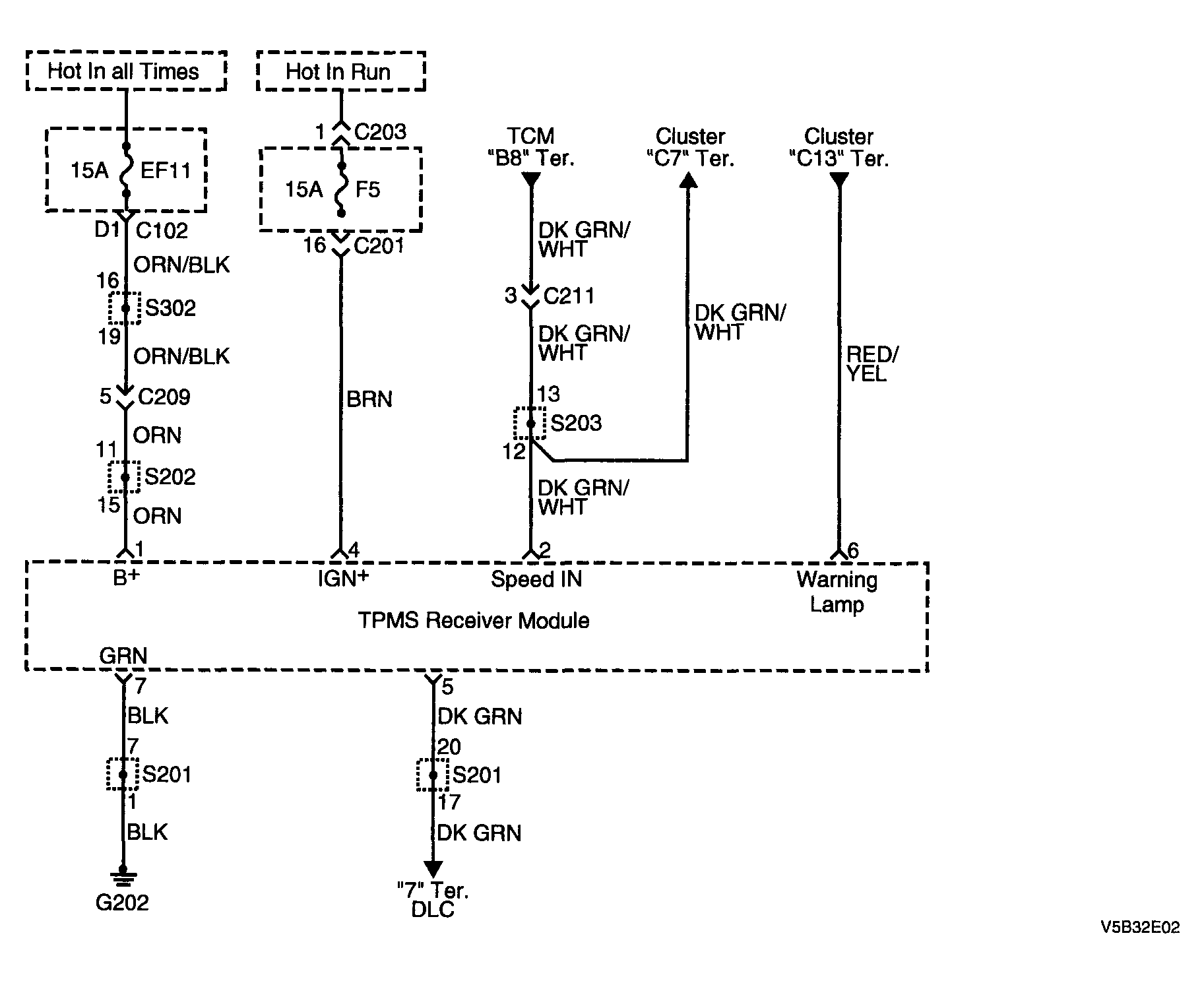

Fig 1: DTC C0550 Input Failure Of Vehicle Speed - Circuit Diagram
G04096569Courtesy of SUZUKI OF AMERICA CORP.
