Audio System Circuit Diagram

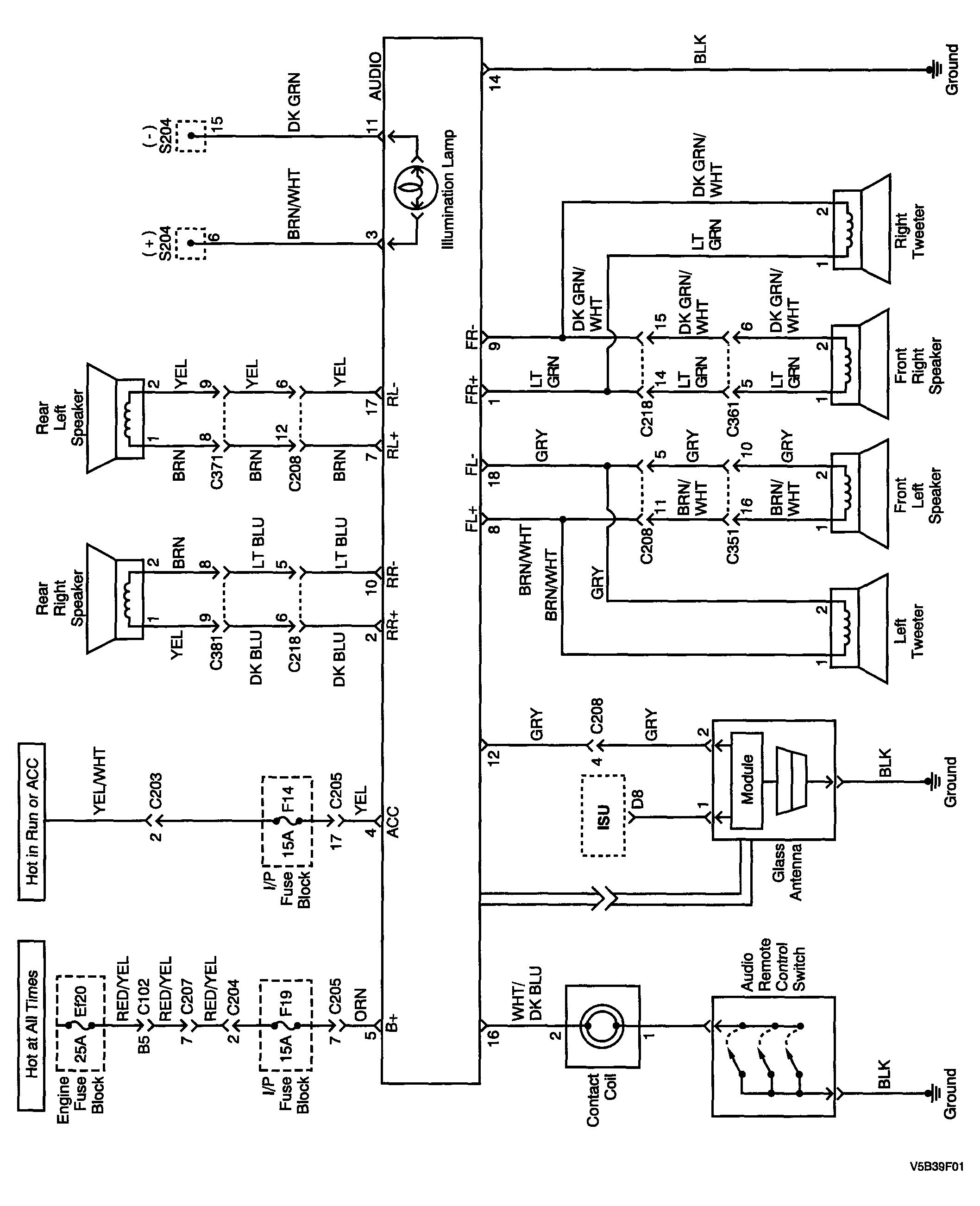

Fig 1: Audio System Circuit Diagram
Courtesy of SUZUKI OF AMERICA CORP.
