Glass Antenna Module Installation

  1. Install the glass antenna module with the screws.
  2. Connect the electrical connectors.
  3. Install the C-pillar trim panel. Refer to "C-PILLAR TRIM PANEL INSTALLATION ".
  4. Connect the negative battery cable.

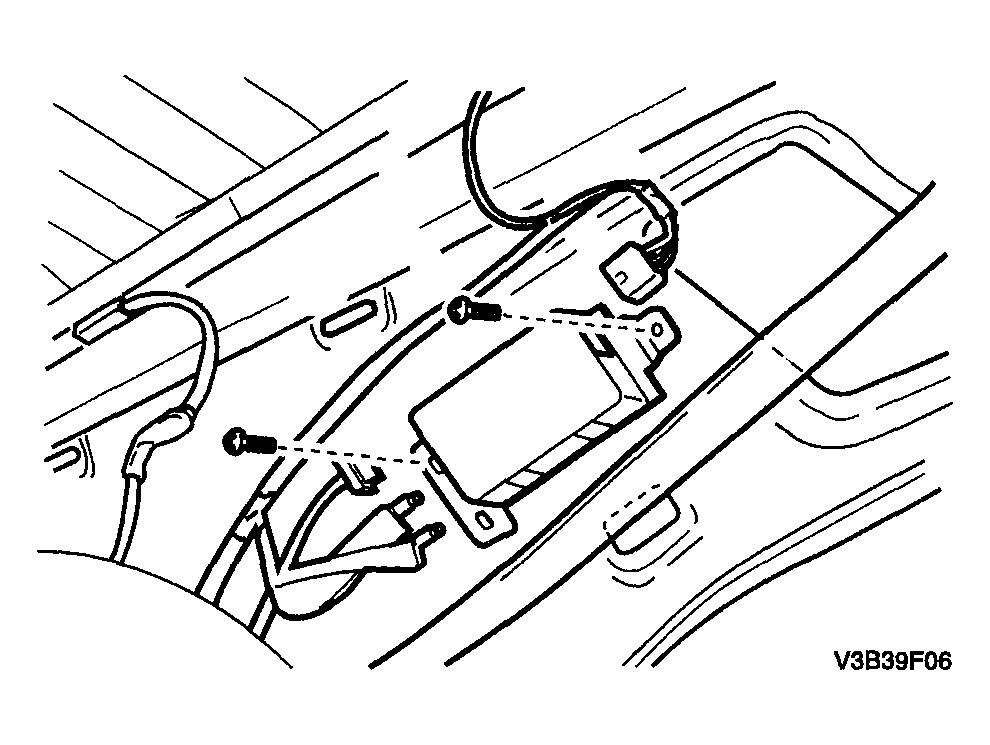

    Fig 1: Installing Glass Antenna Module With Screws
    G04096536Courtesy of SUZUKI OF AMERICA CORP.
