Cruise Control System Diagnosis: Notes

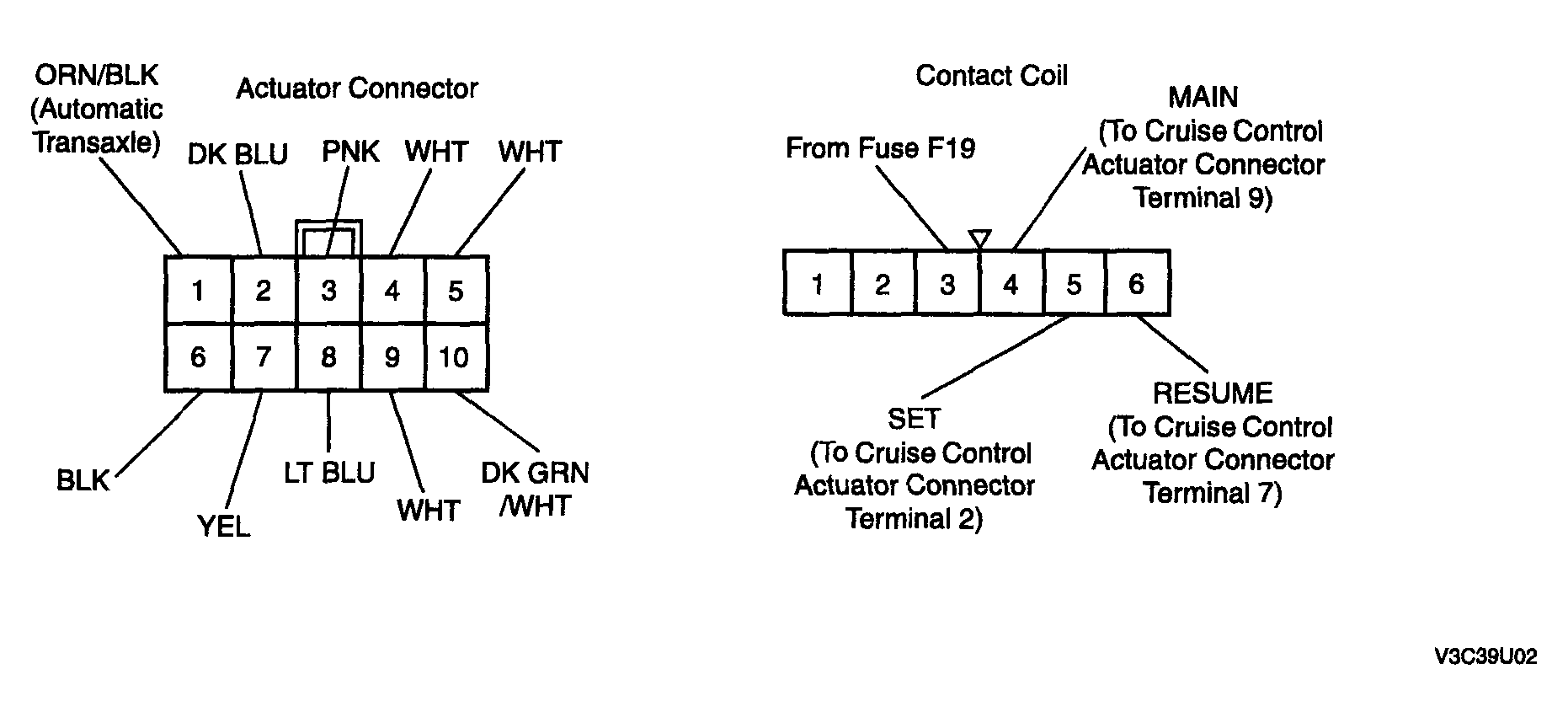

Fig 1: Cruise Control Actuator Connector & Contact Coil Connector
G04096538Courtesy of SUZUKI OF AMERICA CORP.
