TPMS (Tire Pressure Monitoring System) Module Installation

Install the TPMS module.
Install the ISU with the nuts.
Tighten

Tighten the ISU fixing nuts to 4 N.m (3 lb-ft).
Connect the electrical connectors.

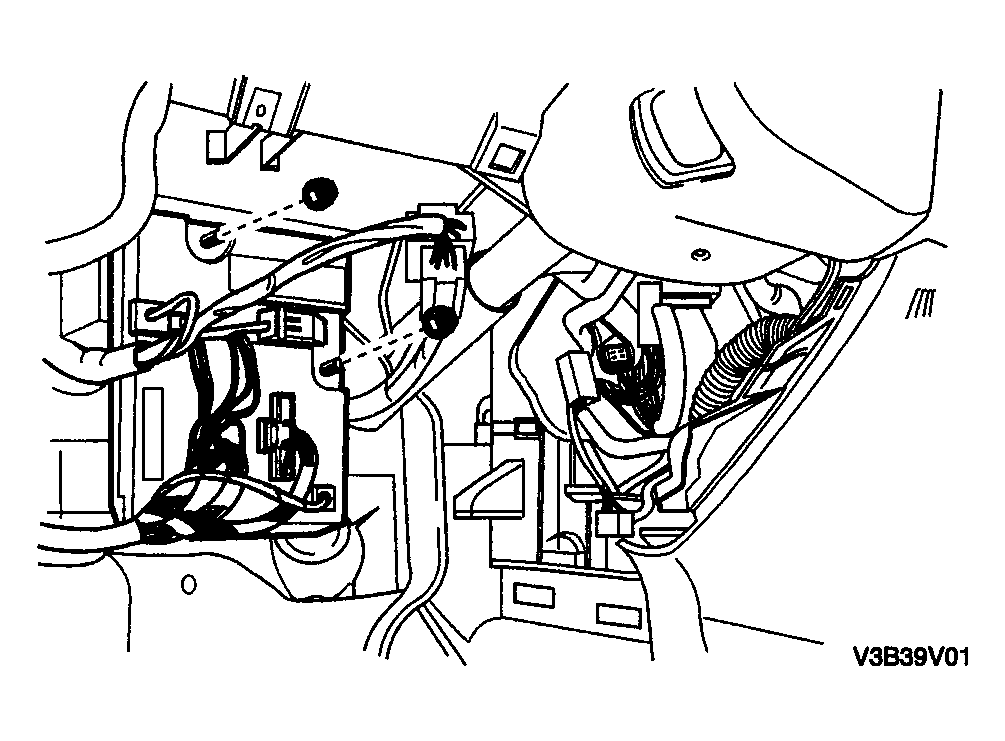

Fig 1: Installing ISU With Nuts
Courtesy of SUZUKI OF AMERICA CORP.
Install the knee bolster.
Install the instrument panel under cover,
Connect the negative battery connector.

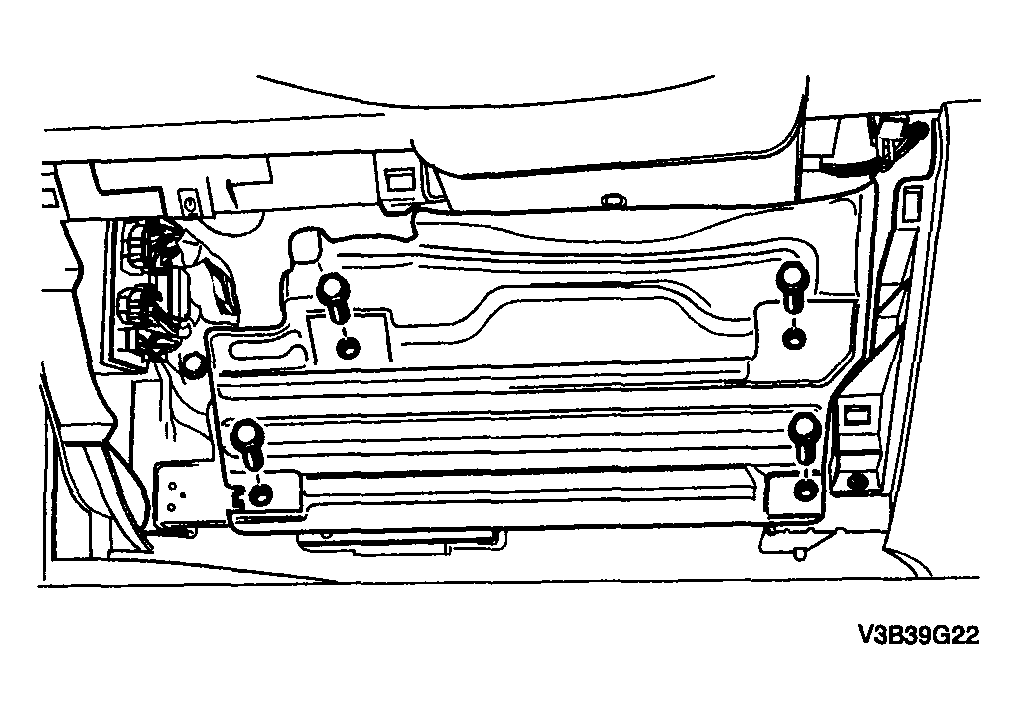

Fig 2: Installing Instrument Panel Under Cover
Courtesy of SUZUKI OF AMERICA CORP.
