Removal Procedure

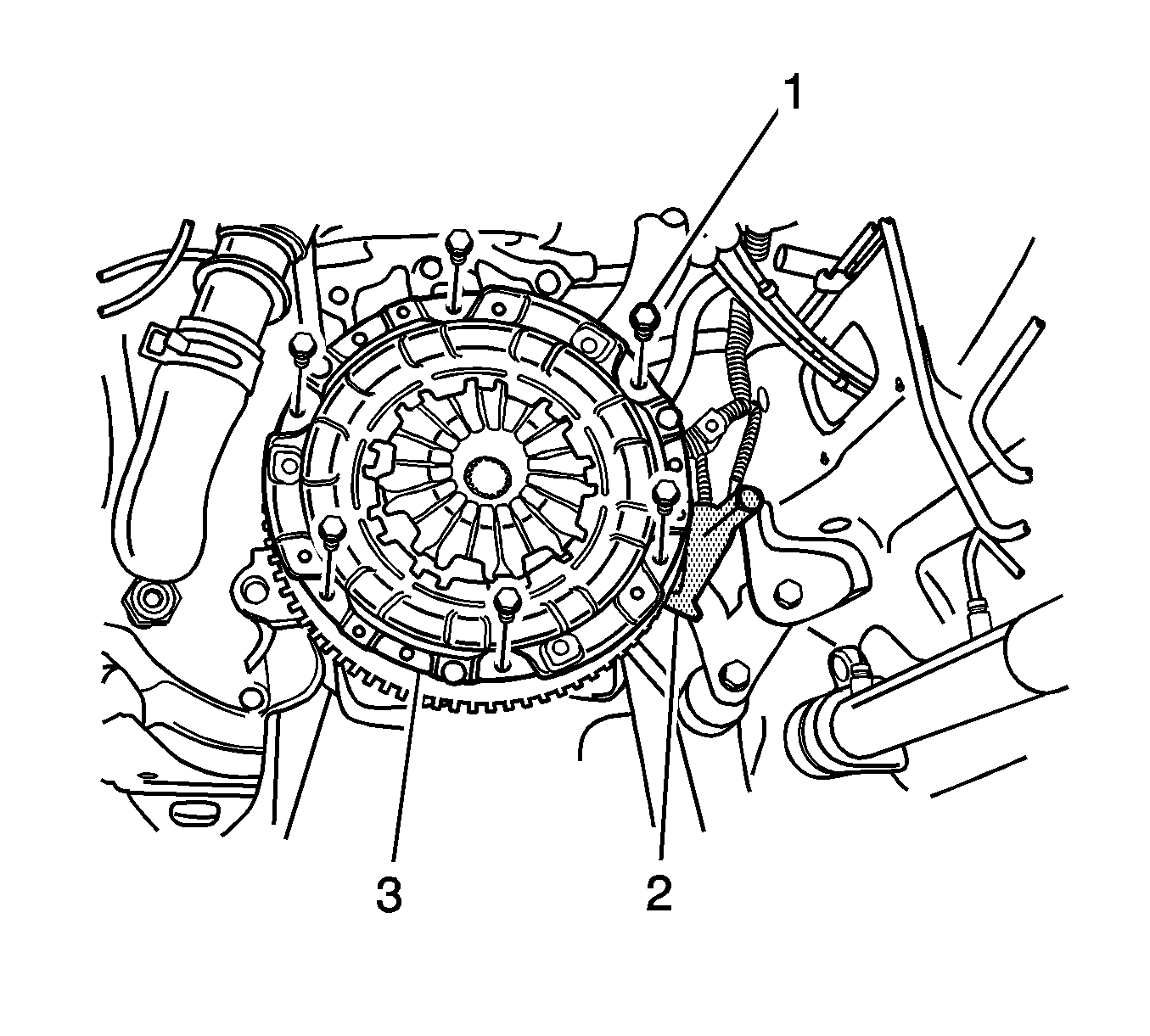

Fig 1: Pressure Plate, Clutch Disc & J 35271

Courtesy of GENERAL MOTORS CORP.

Remove the transaxle from the vehicle. Refer to Transmission Replacement in Manual Transmission - D16.
Install the J 35271 (2) to the flywheel. See Special Tools .
Remove the pressure plate and the clutch disc. Refer to Clutch and Pressure Plate Replacement .

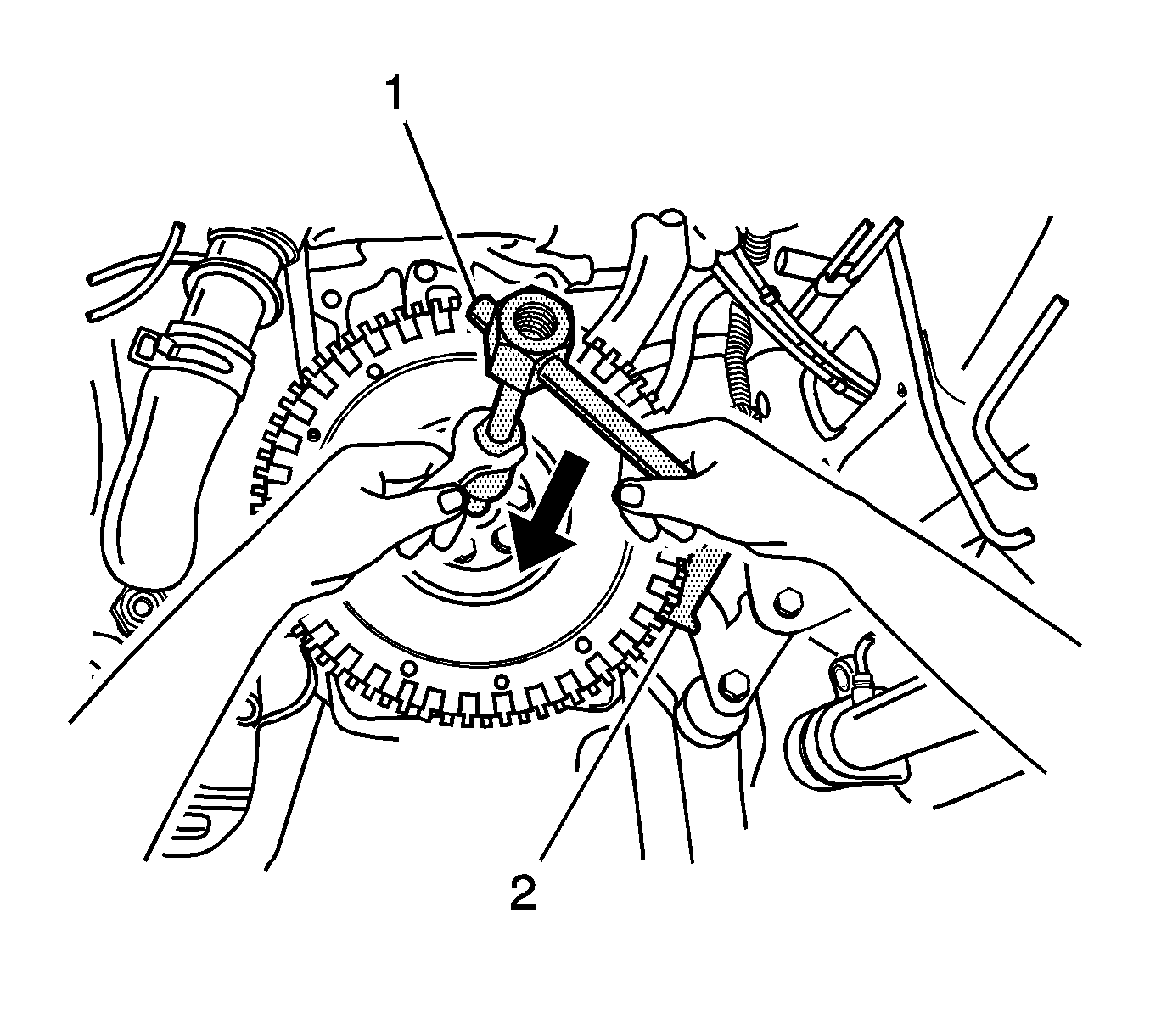

Fig 2: Removing Transmission Input Shaft Bearing From Crankshaft Using J 23907

Courtesy of GENERAL MOTORS CORP.

CAUTION: Wear safety glasses in order to avoid eye damage.

Remove the transmission input shaft bearing from the crankshaft using the J 23907 (1). See Special Tools .
