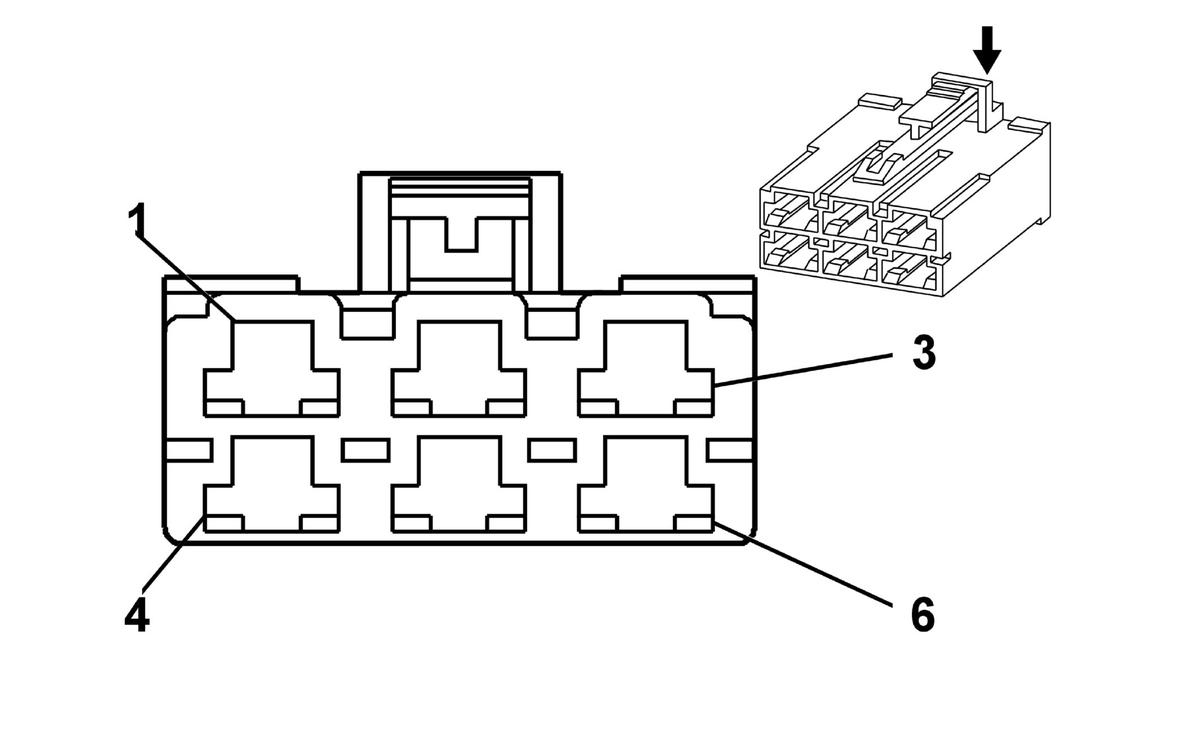

Blower Switch Connector End View

Blower Switch

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		KET MG 610049 6-Way F 250 Series (WH)
Pin	Wire Color	Circuit No.	Function
1	YE	362	HVAC On Signal
2	YE	343	Accessory Voltage
2	YE	343	Accessory Voltage
3	WH	72	Blower Motor Medium 2 Control
4	WH	60	Blower Motor Low Control
5	D-BU/WH	63	Blower Motor Medium 1 Control
6	BN	361	Defrost Mode Valve Solenoid Control
