SIR Connector End Views (Hatchback)

WARNING: This page is about a different car, the 2008 Suzuki Swift +, 2008 Pontiac Wave, and 2008 Chevrolet Aveo. However, it is still accessible from the selected car via links, so may be relevant.
Inflatable Restraint Front Passenger Presence Sensor (PPS) (OCS)

GM810084Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 1-0967640-1
  • 4-Way F Connector (BK)
Pin Wire Color Circuit No. Function
1 PK 739 Ignition 1 Voltage
2 D-BU/WH 355 Communication
3 BK 250 Ground
4 - - Not Used
Inflatable Restraint I/P Module

GM1481288Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 160201704
  • 2-Way Connector (YE)
Pin Wire Color Circuit No. Function
1 D-GN 347 Instrument Panel Module - High Control
2 BN 348 Instrument Panel - Low Control
Inflatable Restraint Sensing and Diagnostic Module (SDM) LHD

GM1481263Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 4-368231
  • 50-Way (RD)
Pin Wire Color Circuit No. Function
1 YE 2117 Seat Belt Pretensioner Right - High Control
2 GY 2116 Seat Belt Pretensioner Right - Low Control
3 D-GN/RD 2119 Seat Belt Pretensioner Left - Low Control
4 WH/BK 2118 Seat Belt Pretensioner Left - High Control
5 PK 139 Ignition 1 Voltage
6 BK 250 Ground
7 D-GN/WH 358 Air Bag Indicator Control
8 - - Not Used
9 BN 337 SIR Serial Data
10 GY 1403 Steering Wheel Module - High Control
11 L-BU 1404 Steering Wheel Module - Low Control
12 - - Not Used
13 D-GN 347 I/P Module - High Control
14 BN 348 I/P Module - Low Control
15 - - Not Used
16 D-GN/WH 1423 Side Impact Module - Passenger - Low Control (Side Air Bags)
17 PU 1422 Side Impact Module - Passenger - High Control (Side Air Bags)
18 L-BU 1421 Side Impact Module - Driver - High Control (Side Air Bags)
19 GY 1420 Side Impact Module - Driver - Low Control (Side Air Bags)
20 BN/BK 1424 Side Impact Sensing Module - Left - Voltage (Side Air Bags)
21 L-GN/RD 1425 Side Impact Sensing Module - Right - Voltage (Side Air Bags)
22-44 - - Not Used
45 BK/WH 754 Side Impact Sensing Module - Left - Signal (Side Air Bags)
46 BN/WH 715 Side Impact Sensing Module - Right - Signal (Side Air Bags)
47-50 - - Not Used
Inflatable Restraint Sensing and Diagnostic Module (SDM) RHD

GM1258040Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 4-368231
  • 50-Way
Pin Wire Color Circuit No. Function
1 GY 2119 Seat Belt Pretensioner Right - Low Control
2 WH/BK 2118 Seat Belt Pretensioner Right - High Control
3 YE 2117 Seat Belt Pretensioner Left - High Control
4 GY 2116 Seat Belt Pretensioner Left - Low Control
5 PK 139 Ignition 1 Voltage
6 BK/WH 351 Ground
7 D-GN/WH 358 Air Bag Indicator Control
8 - - Not Used
9 BN 337 SIR Serial Data
10 GY 1403 Steering Wheel Module - High Control
11 L-BU 1404 Steering Wheel Module - Low Control
12 - - Not Used
13 D-GN 347 I/P Module - High Control
14 BN 348 I/P Module - Low Control
15 - - Not Used
16 GY 1420 Side Impact Module - Driver - Low Control (Side Air Bags)
17 L-BU 1421 Side Impact Module - Driver - High Control (Side Air Bags)
18 PU 1422 Battery Positive Voltage
19 D-GN/WH 1423 Side Impact Module - Passenger - Low Control (Side Air Bags)
20 L-GN/RD 1425 Side Impact Sensing Module - Right - Voltage (Side Air Bags)
21 BN/BK 1424 Side Impact Sensing Module - Left - Voltage (Side Air Bags)
22-44 - - Not Used
45 BK/WH 715 Side Impact Sensing Module - Right - Signal (Side Air Bags)
46 BN/WH 754 Side Impact Sensing Module - Left - Signal (Side Air Bags)
47-50 - - Not Used
Inflatable Restraint Sensing and Diagnostic Module (SDM) (North America)

GM1500891Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 0-1393359-2
  • 75-Way F Connector (OG)
Pin Wire Color Circuit Number Function
1 - - Not Used
2-25 - - Not Used (Shorting Bar)
26 PK 139 Ignition 1 Voltage
27 D-GN/WH 358 Air Bag Indicator Control
28 BK 250 Ground
29 L-BU 1404 Steering Wheel Module - Stage 1 - Low Control
30 GY 1403 Steering Wheel Module - Stage 1 - High Control
31 D-GN 347 I/P Module - Stage 1 - High Control
32 BN 348 I/P Module - Stage 1 - Low Control
33 WH/BK 2118 Seat Belt Pretensioner - Driver - High Control
34 D-GN/RD 2119 Seat Belt Pretensioner - Driver - Low Control
35 YE 2117 Seat Belt Pretensioner - Passenger - High Control
36 D-BU/WH 2116 Seat Belt Pretensioner - Passenger - Low Control
37 GY 1420 Side Impact Module - Driver High Control
38 L-BU 1421 Side Impact Module - Driver Low Control
39 PU 1422 Side Impact Module - Passenger Low Control
40 D-GN/WH 1423 Side Impact Module - Passenger High Control
41 PK 3022 Steering Wheel Module - Stage 2 - High Control
42 WH 3023 Steering Wheel Module - Stage 2 - High Control
43 GY 3027 IP Module - Stage 2 - High Control
44 PU 3026 IP Module - Stage 2 - Low Control
45-53 - - Not Used
54 BN 337 Serial Data
55 - - Not Used
56 PU 1358 Driver Information Center (DIC) Switch Signal
57-63 - - Not Used
64 D-BU/WH 355 Communication
65-67 - - Not Used
68 BN/WH 715 Side Impact Sensor - Passenger Signal
69 L-GN/RD 1425 Side Impact Sensor - Passenger Voltage
70 BN/BK 1424 Side Impact Sensor - Driver Voltage
71 BK/WH 754 Side Impact Sensor - Driver Signal
72 L-GN 6777 Discriminating Sensor - Right - Signal
73 BN/WH 6776 Discriminating Sensor - Right - Signal
74 YE 6168 Discriminating Sensor - Left - Signal
75 D-GN/WH 6169 Discriminating Sensor - Left - Signal

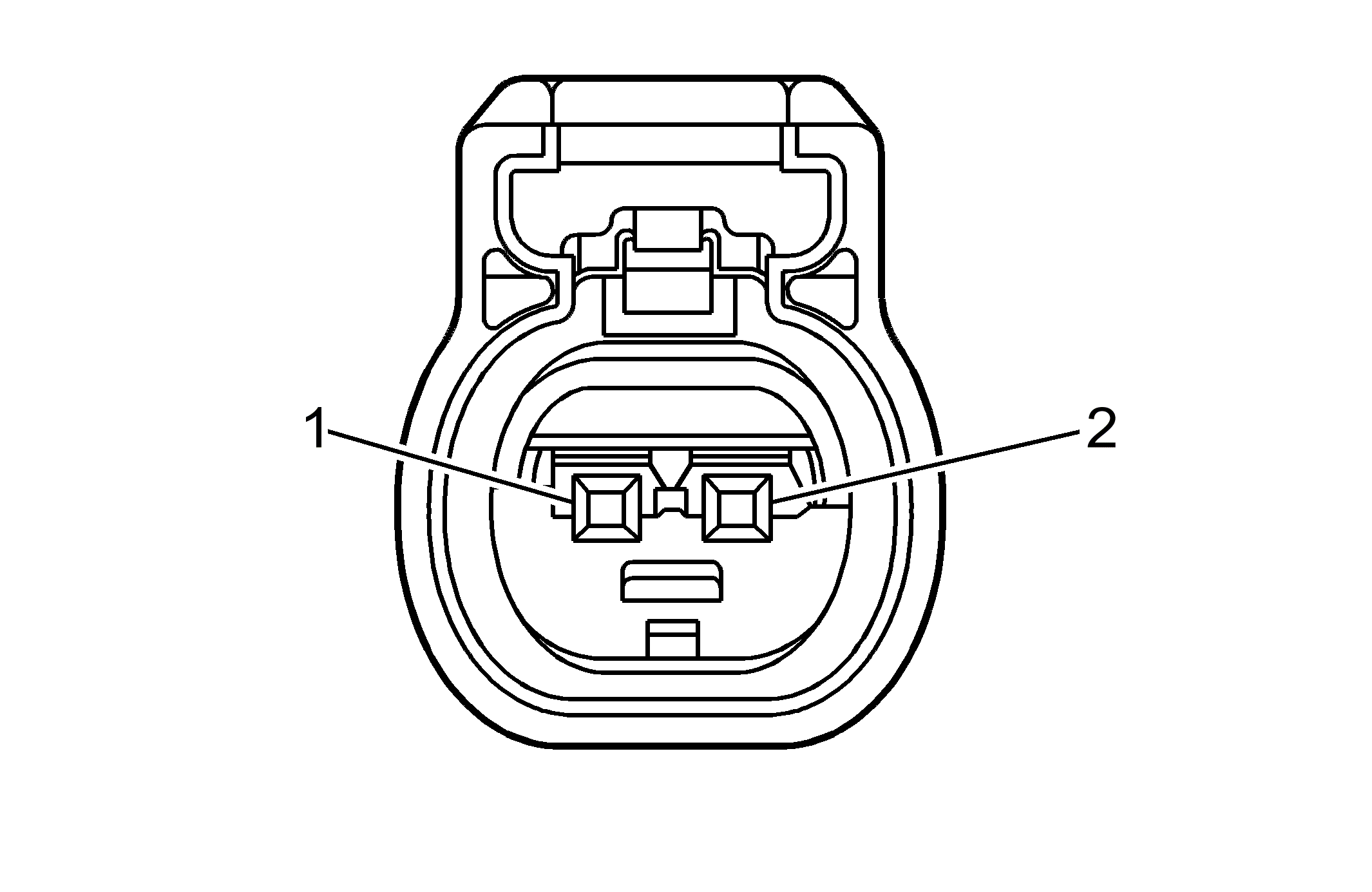

Inflatable Restraint Side Impact Module - Left

GM1957570Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5524-70
  • 2-Way F 040 III Series, Sealed (YE)
Pin Wire Color Circuit No. Function
1 GY 1420 Side Impact Module - Driver - Low Control
2 L-BU 1421 Side Impact Module - Driver - High Control
Inflatable Restraint Side Impact Module - Right

GM1957570Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-5524-70
  • 2-Way F 040 III Series, Sealed (YE)
Pin Wire Color Circuit No. Function
1 D-GN/WH 1423 Side Impact Module - Passenger - Low Control
2 PU 1422 Side Impact Module - Passenger - High Control
Inflatable Restraint Side Impact Sensor (SIS) - Left

GM1908462Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6502-50
  • 2-Way F 040 III Series, Sealed (OG)
Pin Wire Color Circuit No. Function
1 BK/WH 754 Side Impact Sensing Module (SIS) - Left - Signal
2 BN/BK 1424 Side Impact Sensing Module (SIS) - Left - Voltage
Inflatable Restraint Side Impact Sensor (SIS) - Right

GM1908462Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 7283-6502-50
  • 2-Way F 040 III Series, Sealed (OG)
Pin Wire Color Circuit No. Function
1 BK/WH 715 Side Impact Sensing Module (SIS) - Right - Signal
2 L-GN/RD 1425 Side Impact Sensing Module (SIS) - Right - Voltage
Inflatable Restraint Steering Wheel Module

GM966360Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54560210
  • 2-Way F ABX-3 (YE)
Pin Wire Color Circuit No. Function
A WH 1404 Steering Wheel Module - High Control
B D-GN 1403 Steering Wheel Module - Low Control
Inflatable Restraint Steering Wheel Module Coil - C1 (Except North America)

GM130675Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 12162794
  • 2-Way F Metri-Pack 280 Series, Unsealed (YE)
Pin Wire Color Circuit No. Function
A D-GN 348 Steering Wheel Module - Low Control
B WH 347 Steering Wheel Module - High Control

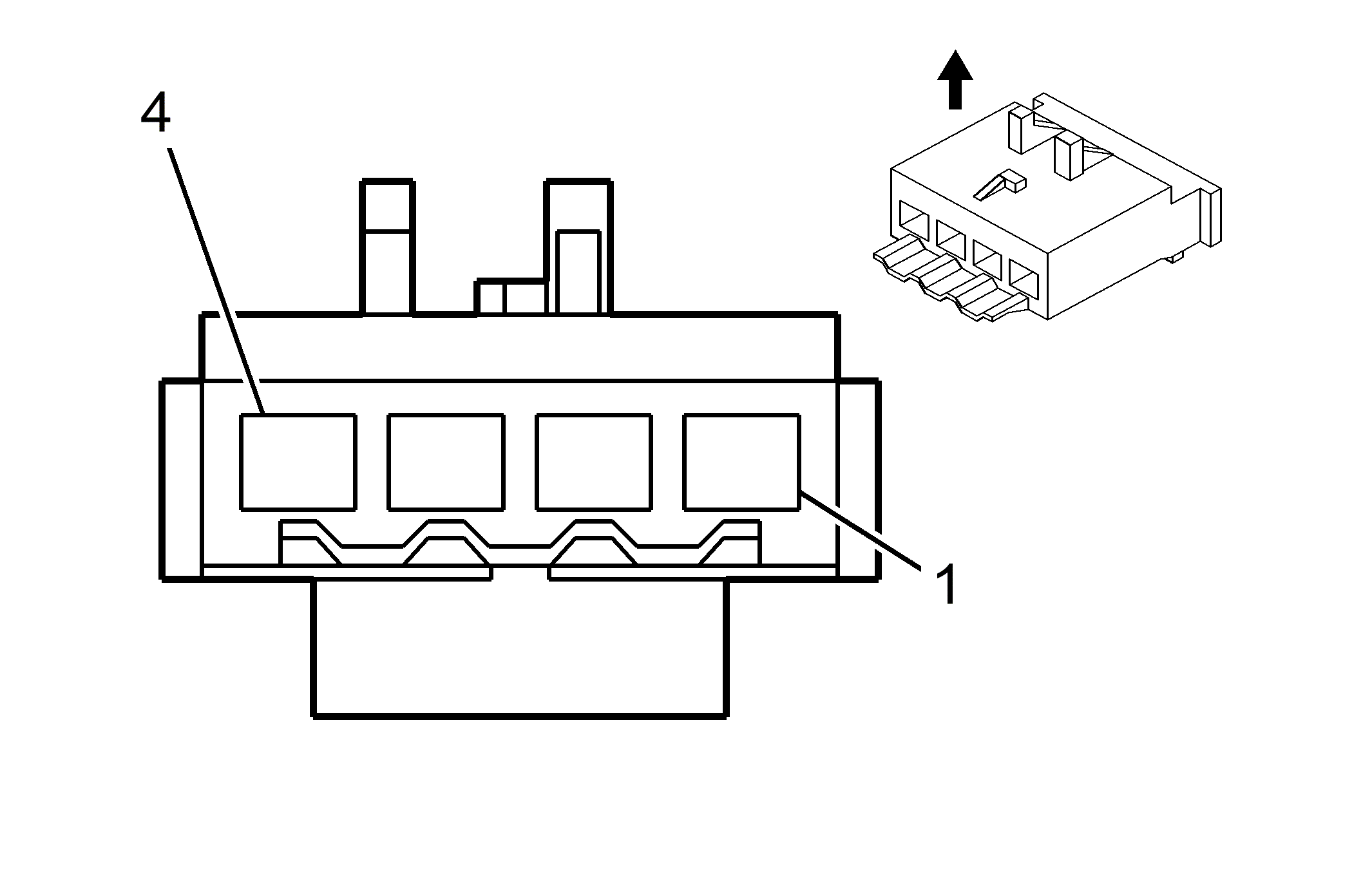

Inflatable Restraint Steering Wheel Module Coil - C1 (North America)

GM1879122Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • 54550400
  • 4-Way F Apex 2.8 Series, Unsealed (YE)
Pin Wire Color Circuit No. Function
1 WH 3023 Steering Wheel Module Stage 2 High Control
2 PK 3022 Steering Wheel Module Stage 2 Low Control
3 GY 347 Steering Wheel Module Stage 1 High Control
4 L-BU 348 Steering Wheel Module Stage 1 Low control

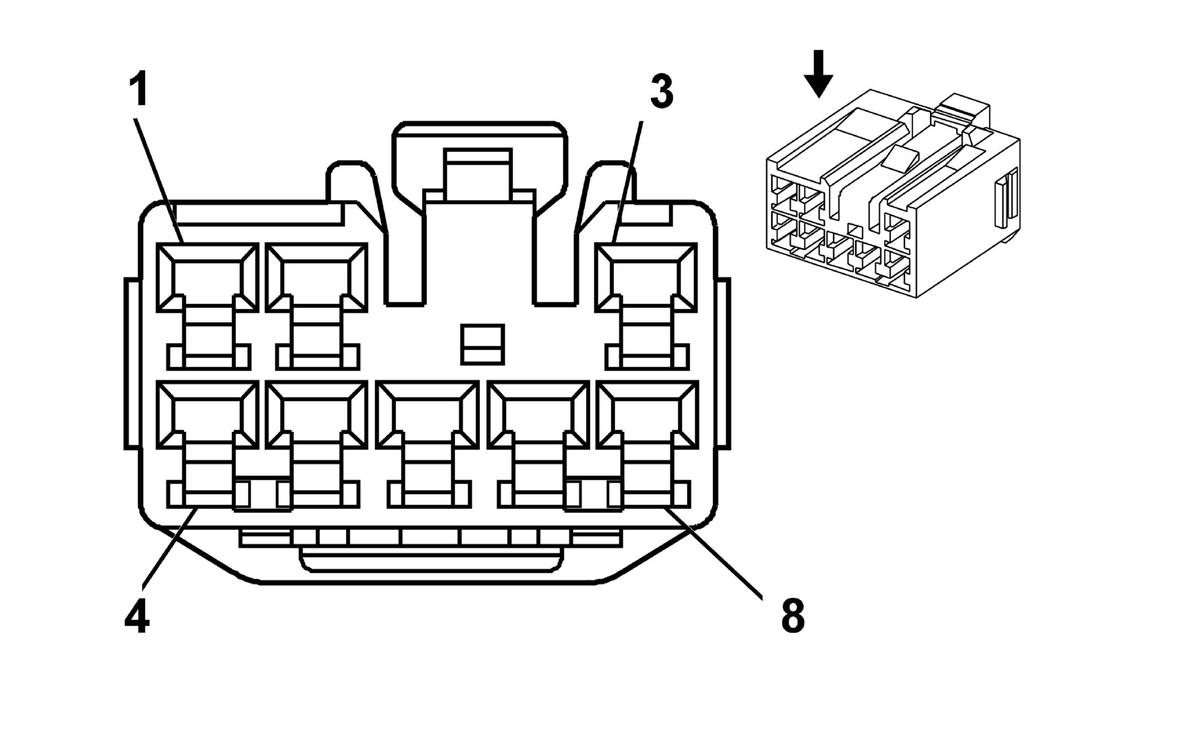

Inflatable Restraint Steering Wheel Module Coil - C2

GM1884157Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • MG651050
  • 8-Way F 090 II Series, Unsealed (NA)
Pin Wire Color Circuit No. Function
1 WH/D-BU 1796 Steering Column Radio Control Signal
2 WH/RD 372 Remote Radio Audio (-)
3 D-GN 29 Horn Control
4 D-GN/WH 397 Cruise Control On Switch Signal
5-6 - - Not Used
7 D-GN/WH 718 Low Reference
8 - - Not Used
Seat Belt Pretensioner - Left Front

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way Connector (GN)
Pin Wire Color Circuit No. Function
1 GY 2119 Seat Belt Pretensioner - Left - Low Control
2 GY 2118 Seat Belt Pretensioner - Left - High Control
Seat Belt Pretensioner - Right Front

GM1481290Courtesy of GENERAL MOTORS CORP.
Connector Part Information
  • V23540-M5302-Y22
  • 2-Way Connector (GN)
Pin Wire Color Circuit No. Function
1 YE 2117 Seat Belt Pretensioner - Right - High Control
2 GY 2116 Seat Belt Pretensioner - Right - Low Control
