Installation Procedure

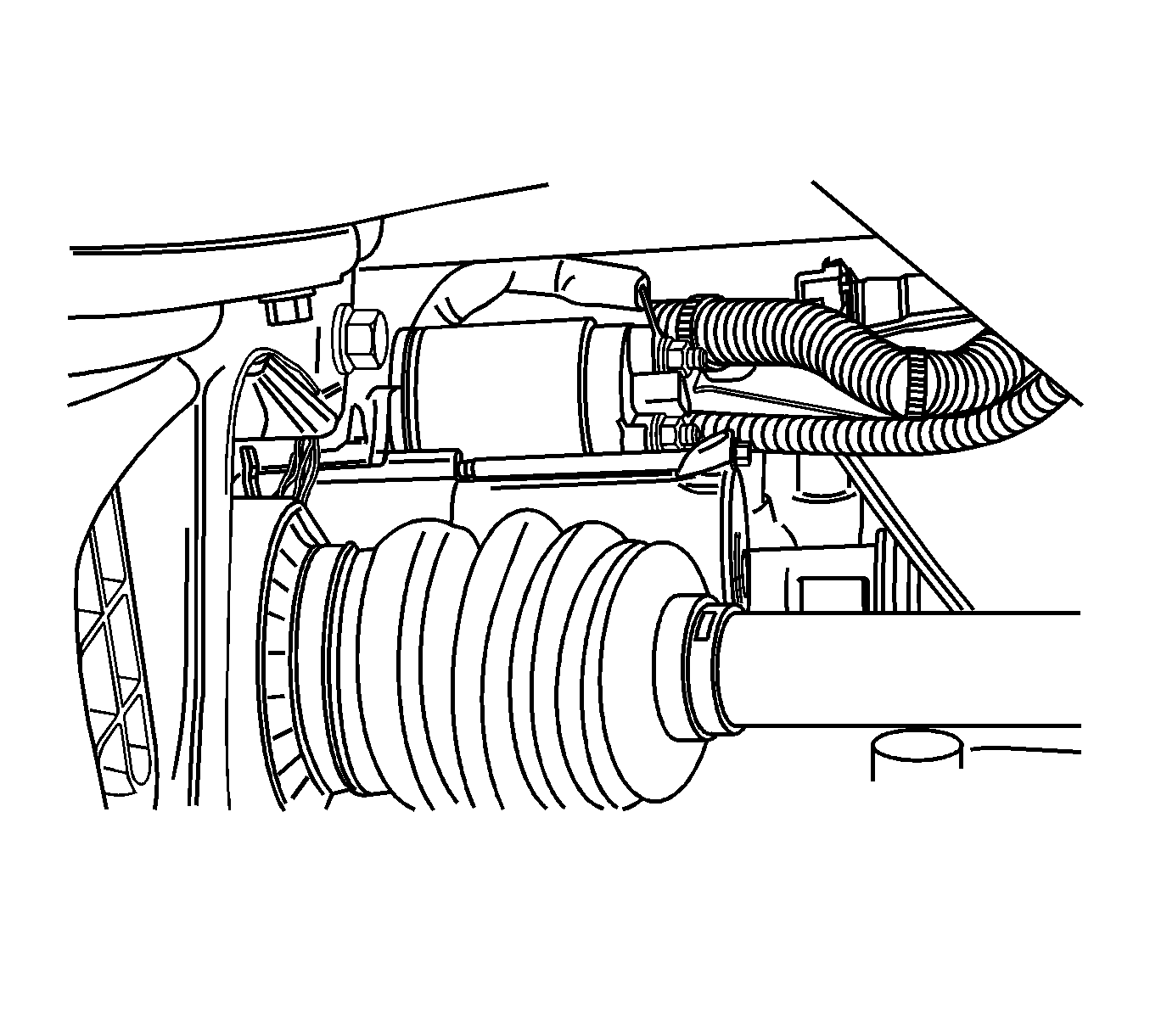

Fig 1: View Of Starter

Courtesy of GENERAL MOTORS CORP.

NOTE: Refer to Fastener Notice in Cautions and Notices.

Install the upper and the lower starter mounting bolts.
Tighten: Tighten the starter mounting bolts to 43 N.m (32 lb ft).

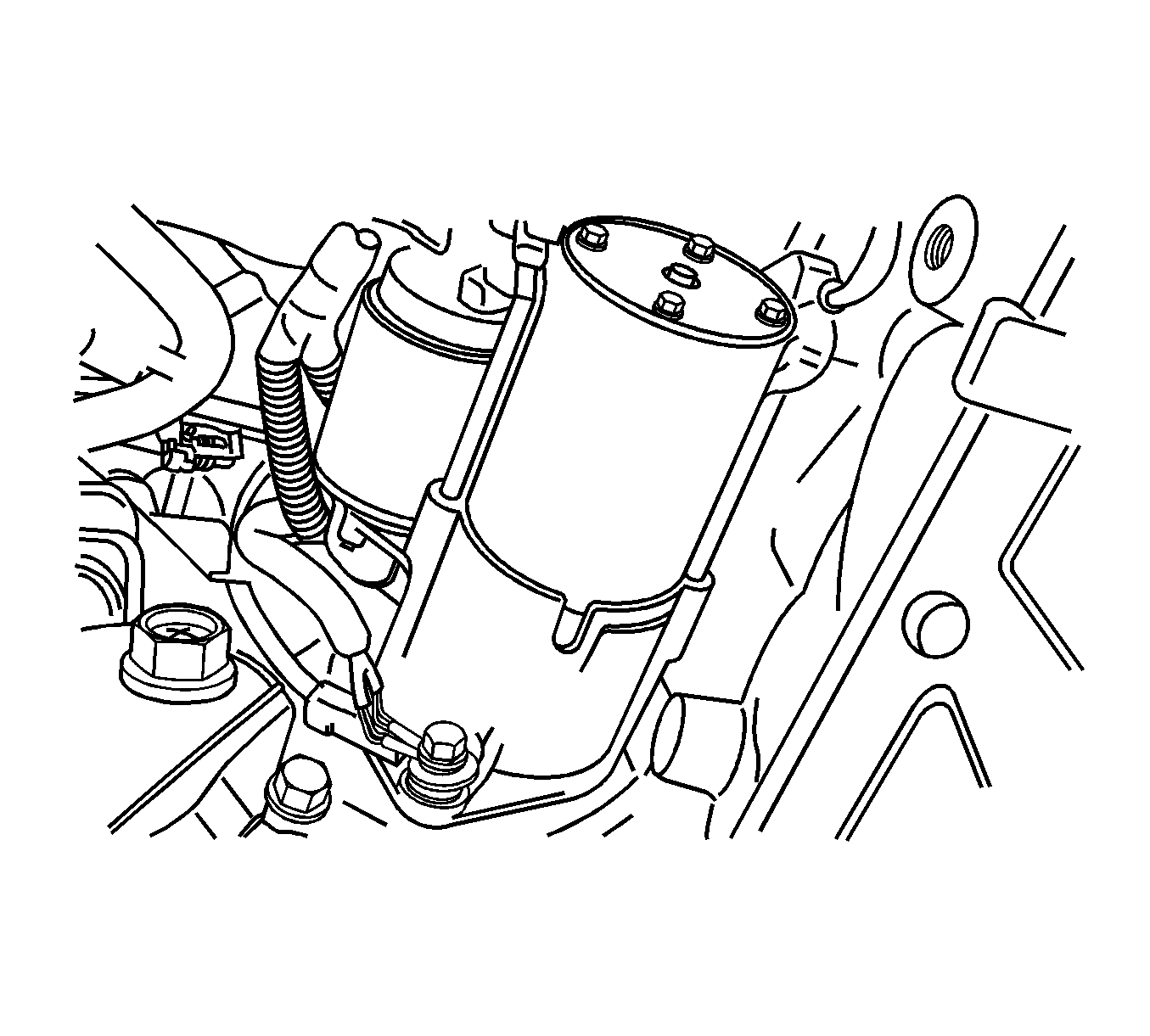

Fig 2: View Of Starter Assembly

Courtesy of GENERAL MOTORS CORP.

Position the starter electrical wire on the solenoid terminal.
Install the starter solenoid nuts.
Tighten: Tighten the starter solenoid nuts to 15 N.m (11 lb ft).
Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
