DTC B1448: OC Passenger Sensor Mat Defect: Notes

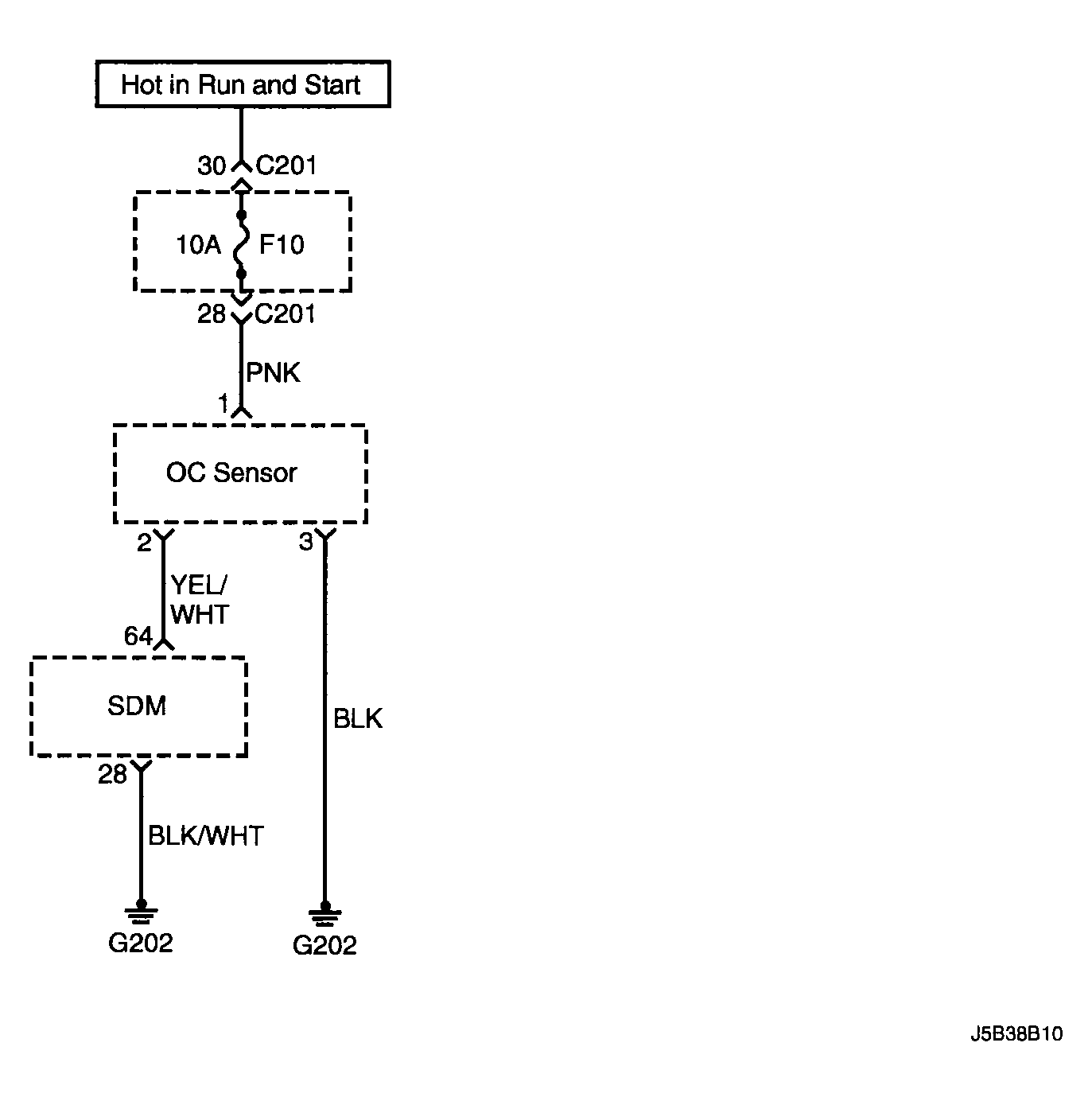

Fig 1: DTC B1448 OC Passenger Sensor Mat Defect - Wiring Diagrams
G04104290Courtesy of SUZUKI OF AMERICA CORP.
