Generator Removal and Installation: Removal

Disconnect the negative battery cable.
Disconnect the manifold air temperature (MAT) sensor electrical connector the air intake tube.
Remove all the clamps from the air cleaner outlet hose, and set aside the tube.

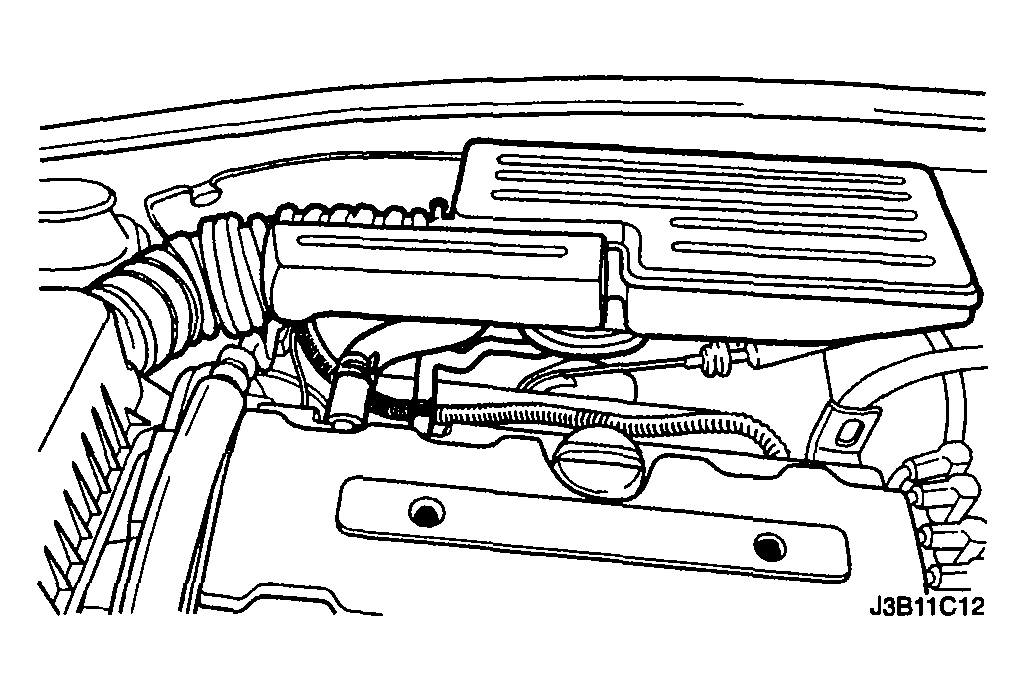

Fig 1: Disconnecting Manifold Air Temperature Sensor Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.

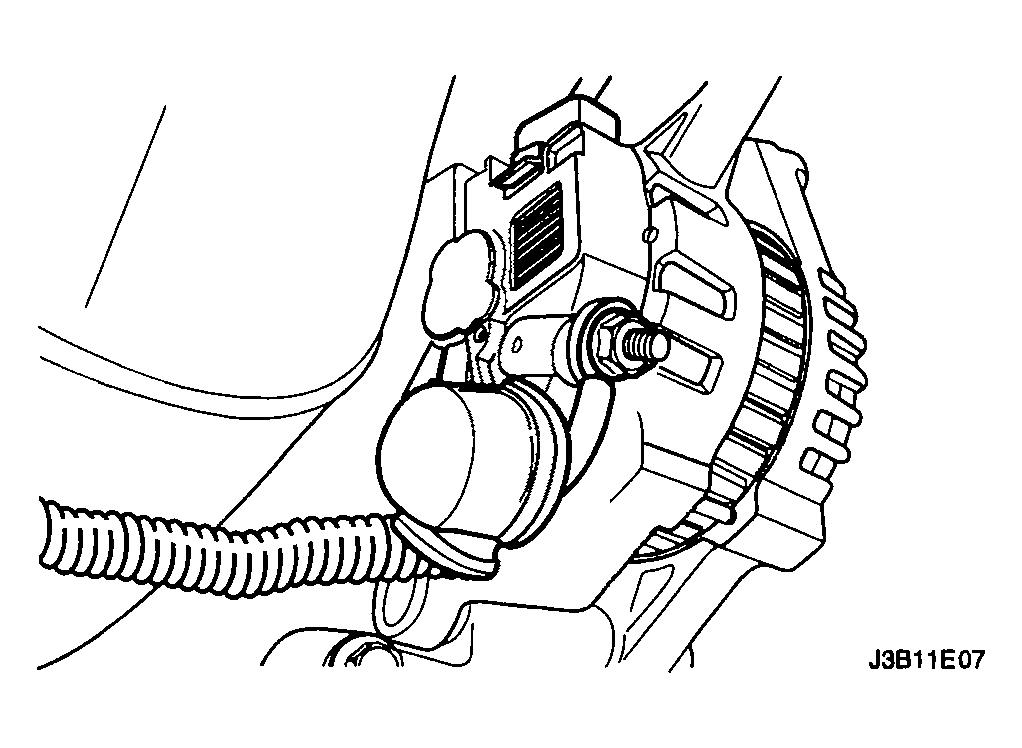

Disconnect the harness connector from the back of the generator, and the generator lead to the battery.
Remove the serpentine accessory drive belt by lowering the vehicle and turning the automatic tensioner roller bolt clockwise to relieve tension on the belt. Refer to "SERPENTINE ACCESSORY DRIVE BELT REMOVAL AND INSTALLATION :".
Push up the power steering reservoir and set it aside.

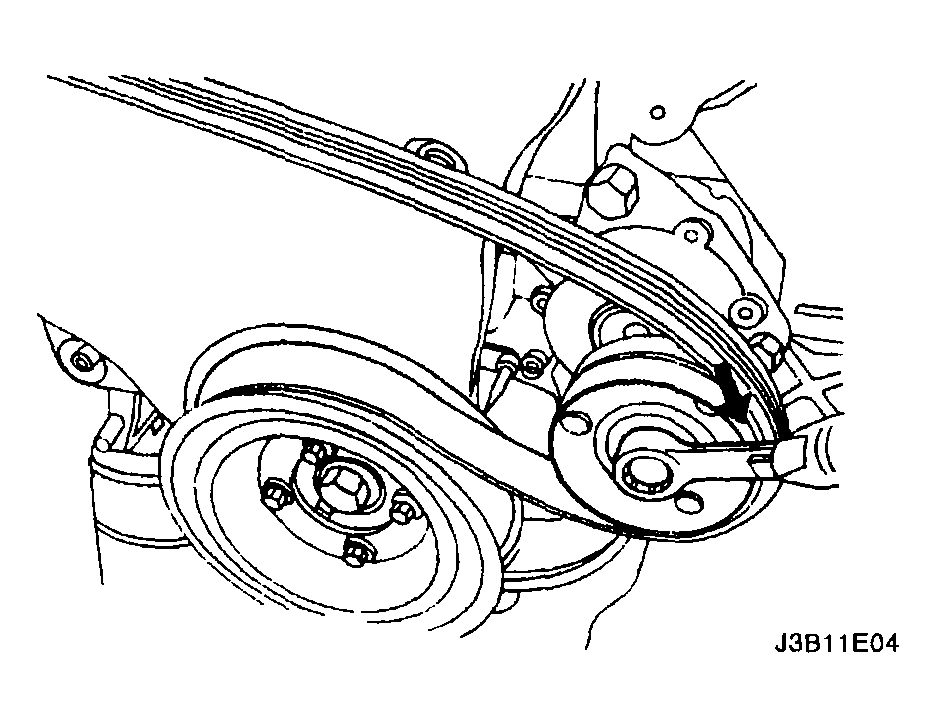

Fig 2: Turning Automatic Tensioner Roller Bolt Clockwise For Relieving Tension On Belt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the generator upper mounting bolts to the intake manifold/cylinder head support bracket, the intake manifold strap bracket, and the intake manifold-to-cylinder body strap bracket.

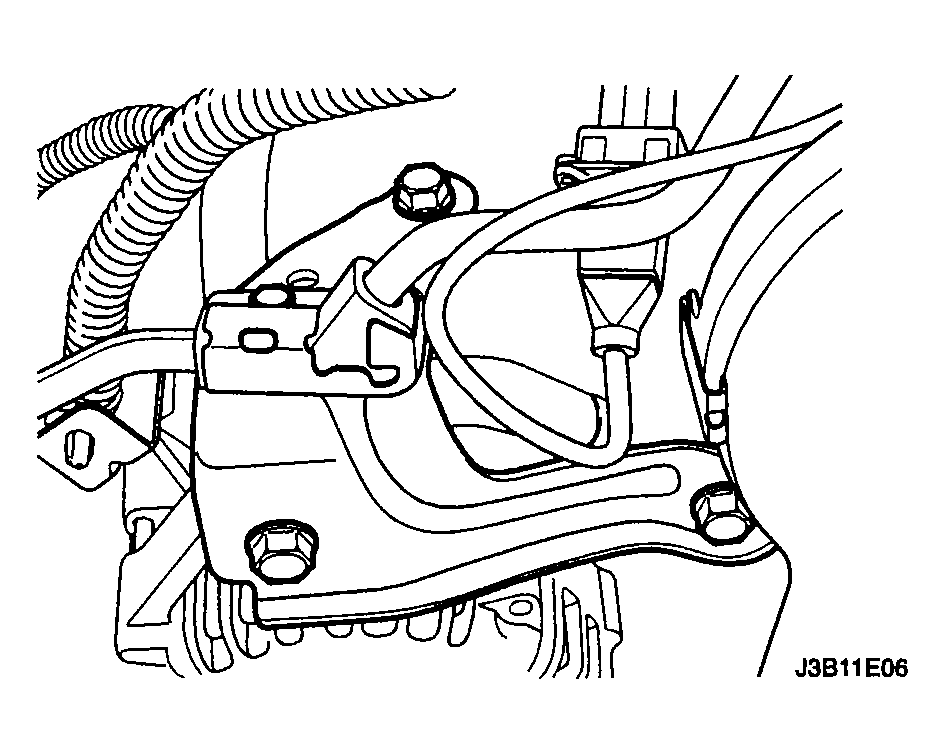

Fig 3: Removing Generator Upper Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle and remove the nut and washers which hold the generator lower bracket-to-generator bolt. Work the bolt loose and remove the generator.

Fig 4: Removing Nut And Washers
Courtesy of SUZUKI OF AMERICA CORP.
Remove the generator lower support bracket bolts.
Carefully remove the generator with the lower bracket.
Remove the generator lower support bracket nut, the bolt, and the washer.

Fig 5: Removing Generator Lower Support Bracket Bolt
Courtesy of SUZUKI OF AMERICA CORP.
