Power Windows Circuit Wiring Diagram Front Only

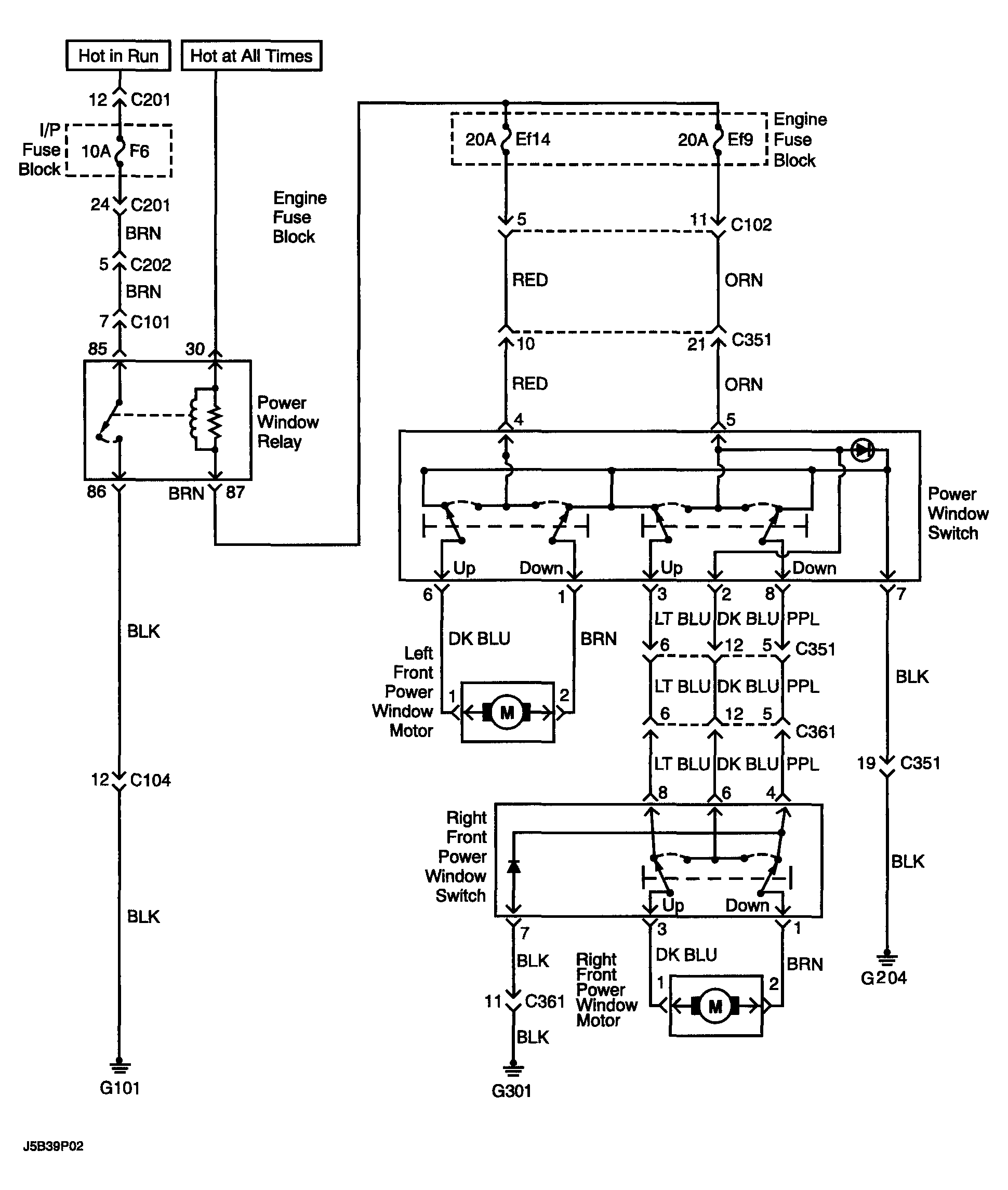

Fig 1: Power Windows Circuit - Wiring Diagram (Front Only)
Courtesy of SUZUKI OF AMERICA CORP.
Front and Rear

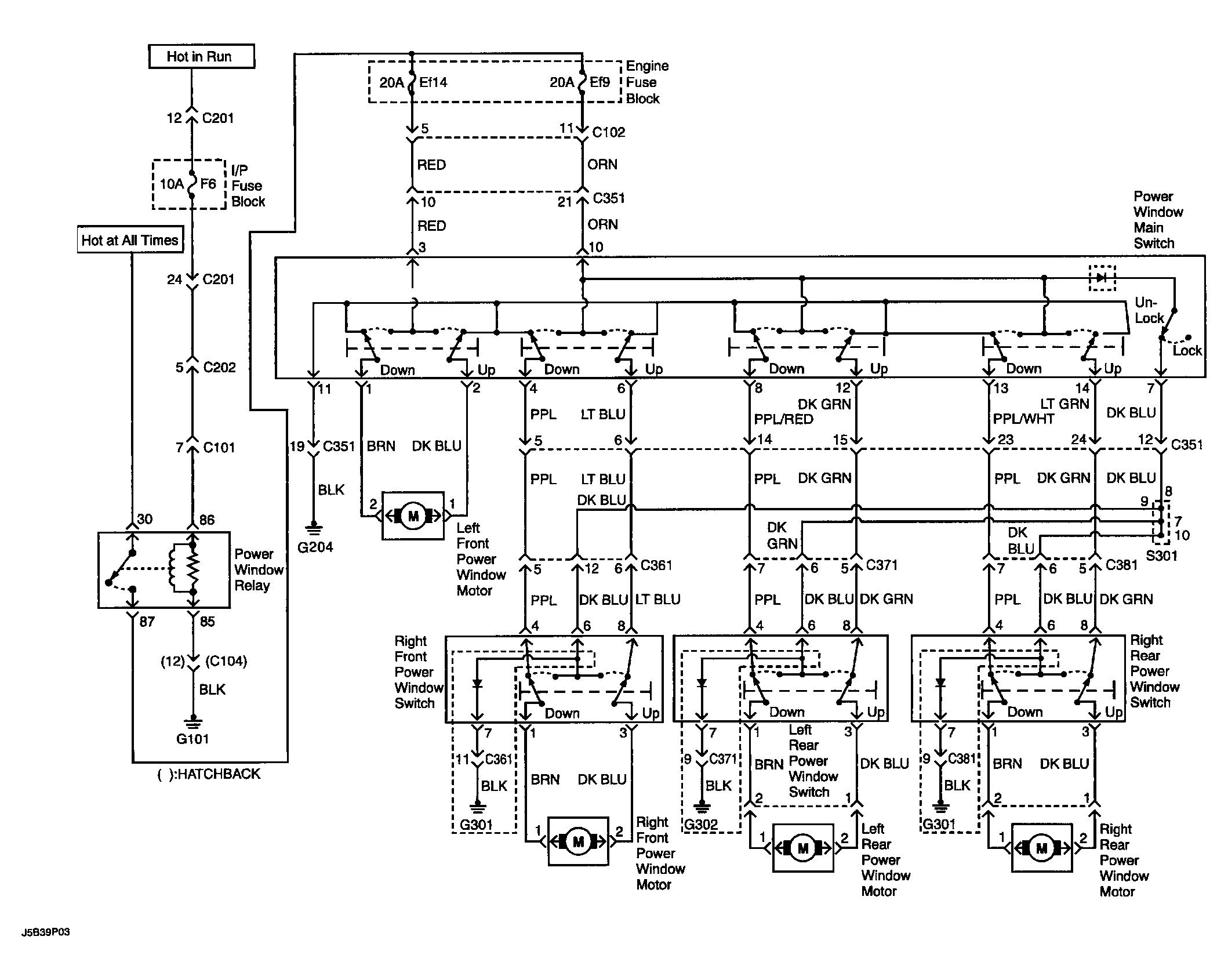

Fig 2: Power Windows Circuit - Wiring Diagram (Front And Rear)
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
