Installation Notice

Tighten the oil pan bolts to 6 N.m (53 lb-in).

Fig 1: Removing Oil Pan Bolts And Oil Pan

Courtesy of SUZUKI OF AMERICA CORP.

1. 3) Remove valve body fixing bolts and transaxle input speed sensor bolt on the valve body.
2. 4) Remove the holder for the transaxle input speed sensor.

Tighten the bolts to 8 N.m (71 lb-in).

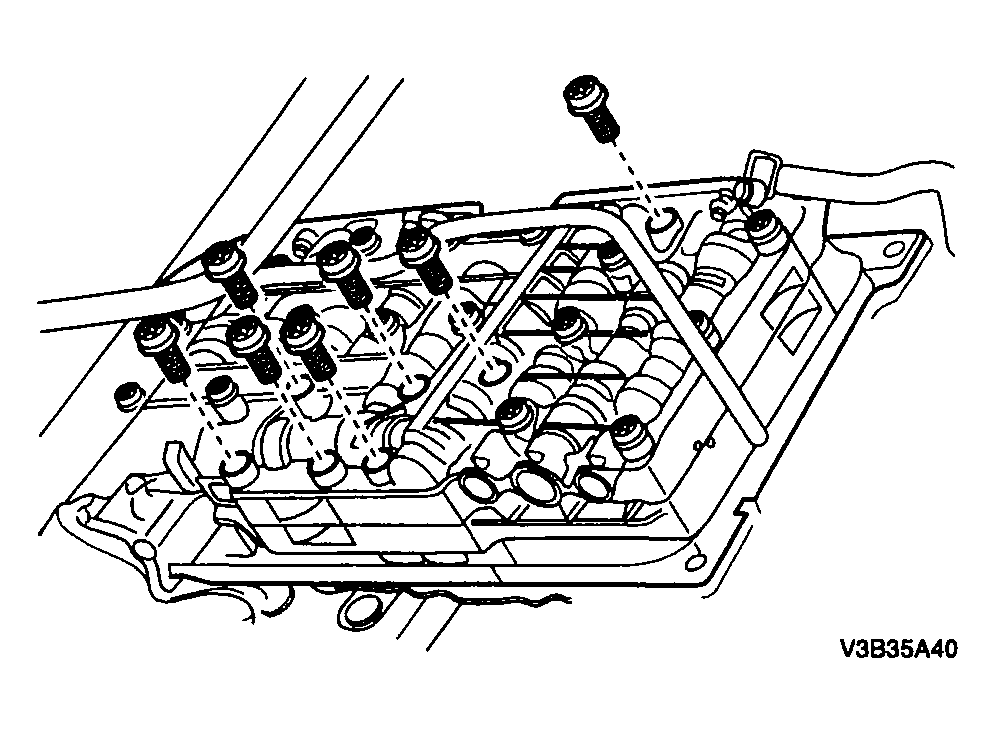

Fig 1: Removing Valve Body Fixing Bolts And Transaxle Input Speed Sensor Bolt On Valve Body

Courtesy of SUZUKI OF AMERICA CORP.

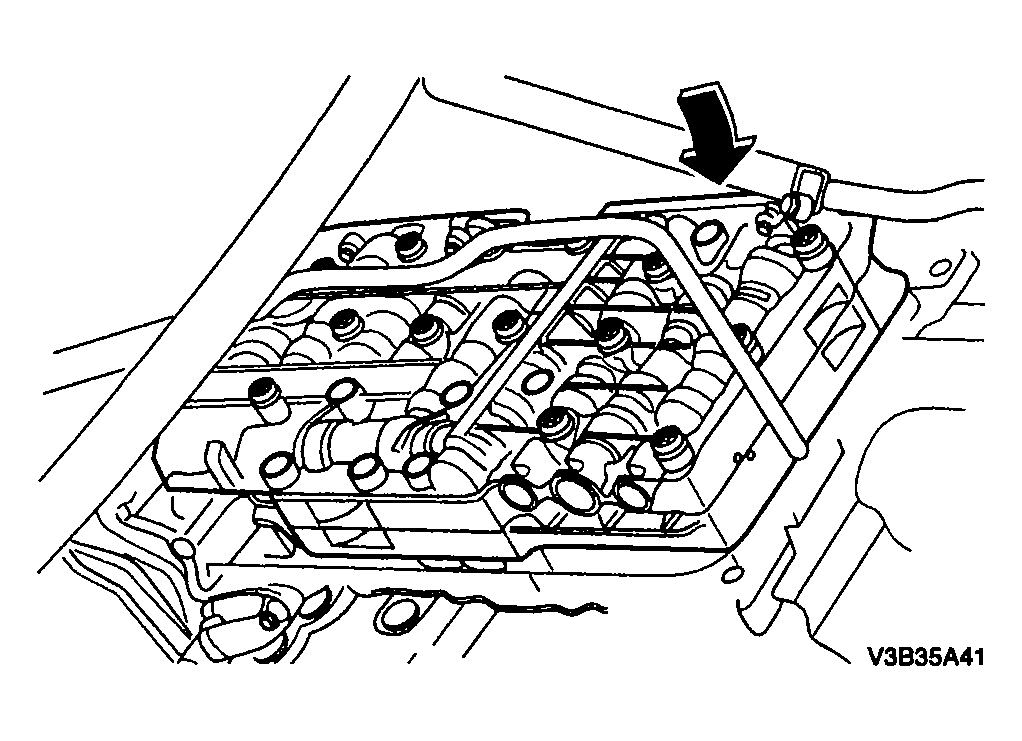

1. 5) Tilt the valve body.
2. 6) Remove the fastening screw for the output speed sensor under the valve body assembly.
3. 7) Lever the cable out of the retaining clip and pull out the output speed sensor.
4. 8) Installation should follow the removal procedure in the reverse order.

Tighten the screw to 6 N.m (53 lb-in).

Fig 1: Installing Valve Body Fixing Bolts

Courtesy of SUZUKI OF AMERICA CORP.
