Tools Required

DW260-020 Transaxle Support Fixture

1. Install the transaxle support fixture DW260-020 onto the transaxle.
2. Torque the support fixture bolts to 11 N.m (98 lb-in).
3. Position the transaxle with the rear cover facing up.

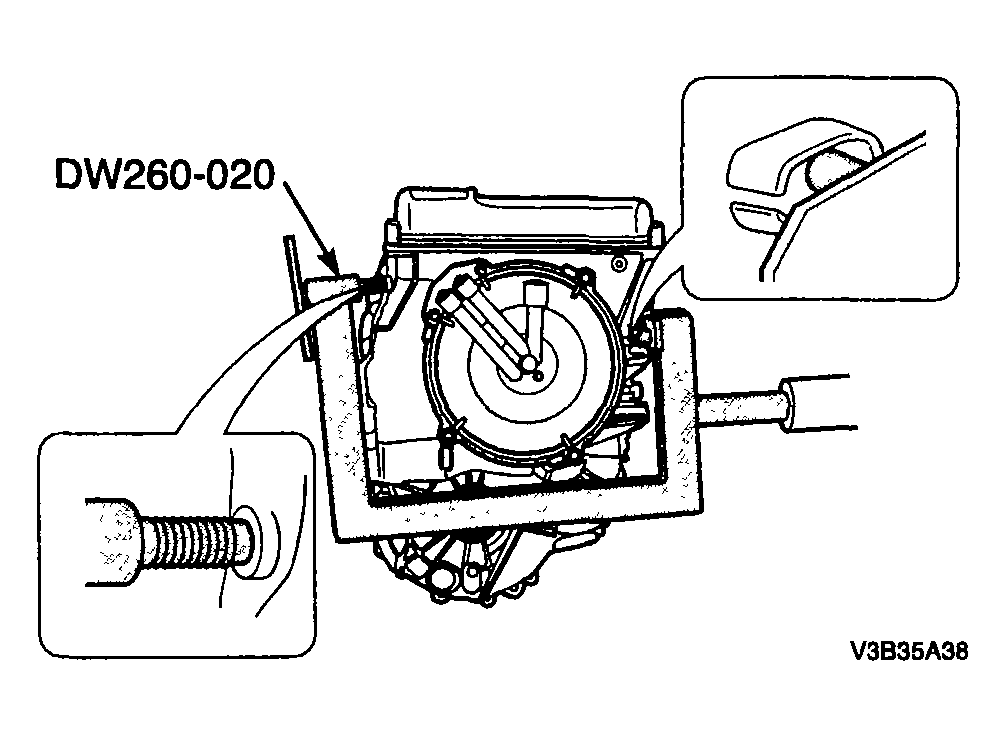

   Fig 1: Installing Transaxle Support Fixture DW260-020 Onto Transaxle

   Courtesy of SUZUKI OF AMERICA CORP.
