Tools Required

DW110-060 Engine Support Fixture

DW260-010 Transaxle Support Fixture

1. Disconnect the negative battery cable.
2. Position the select lever park position.
3. Remove the battery. Refer to "BATTERY AND BATTERY TRAY REMOVAL AND INSTALLATION :".

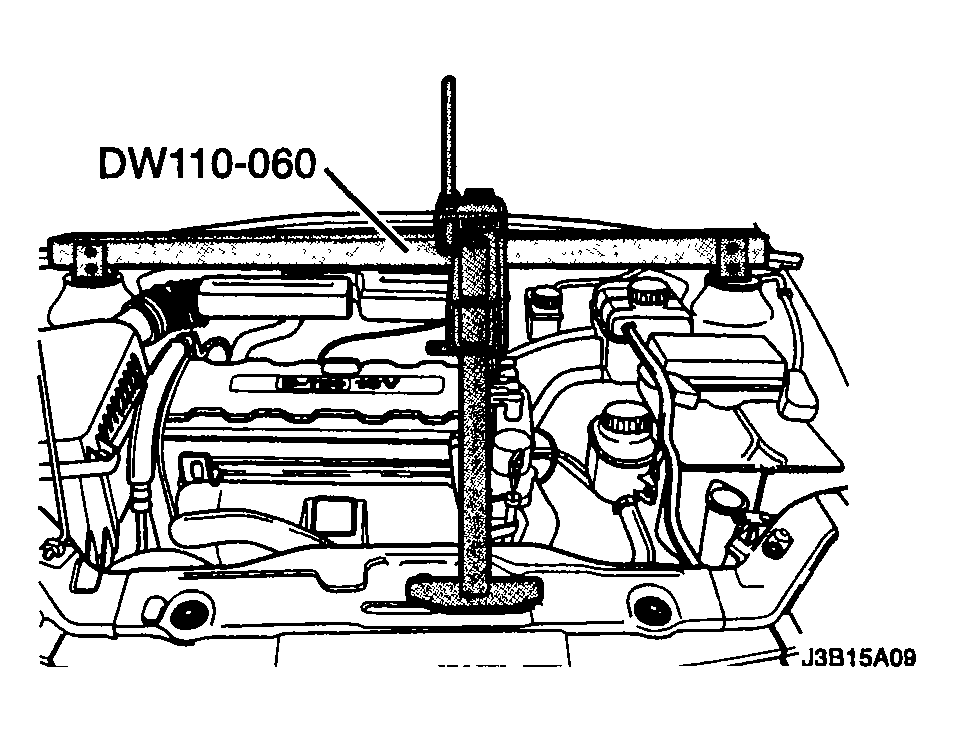

4. Install the engine support fixture DW110-060.
   Fig 1: Installing Engine Support Fixture DW110-060

   Courtesy of SUZUKI OF AMERICA CORP.
5. Disconnect the transaxle wiring harness from the transaxle.
6. Disconnect the park/neutral position switch electrical connector.

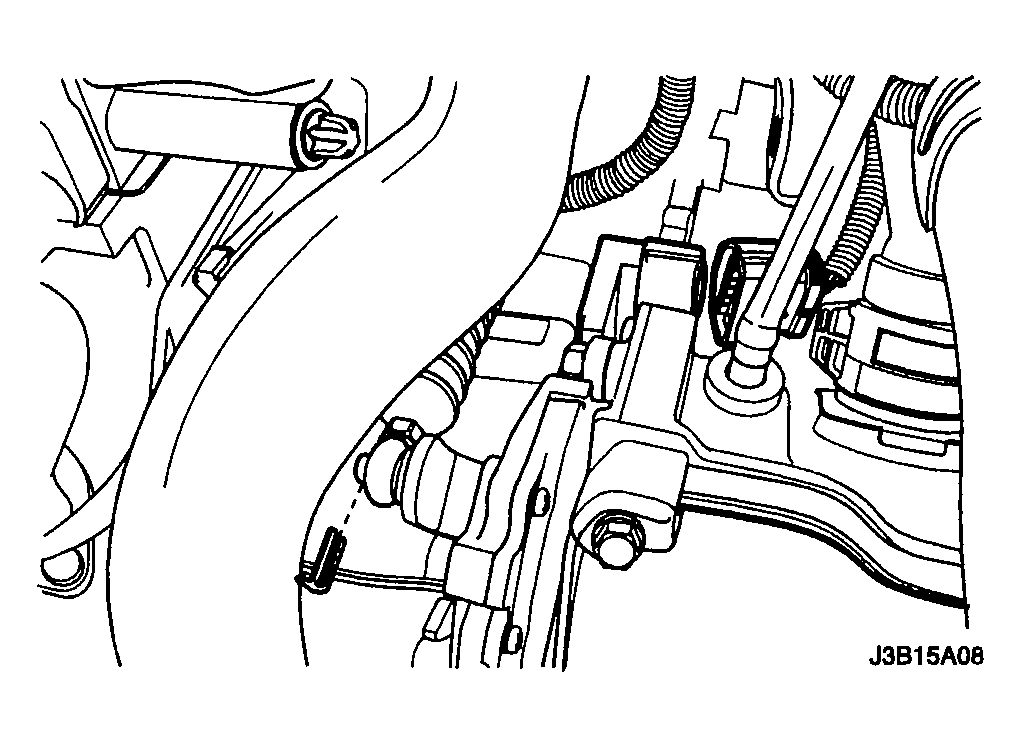

   Fig 2: Removing Shift Control Cable Clip

   Courtesy of SUZUKI OF AMERICA CORP.

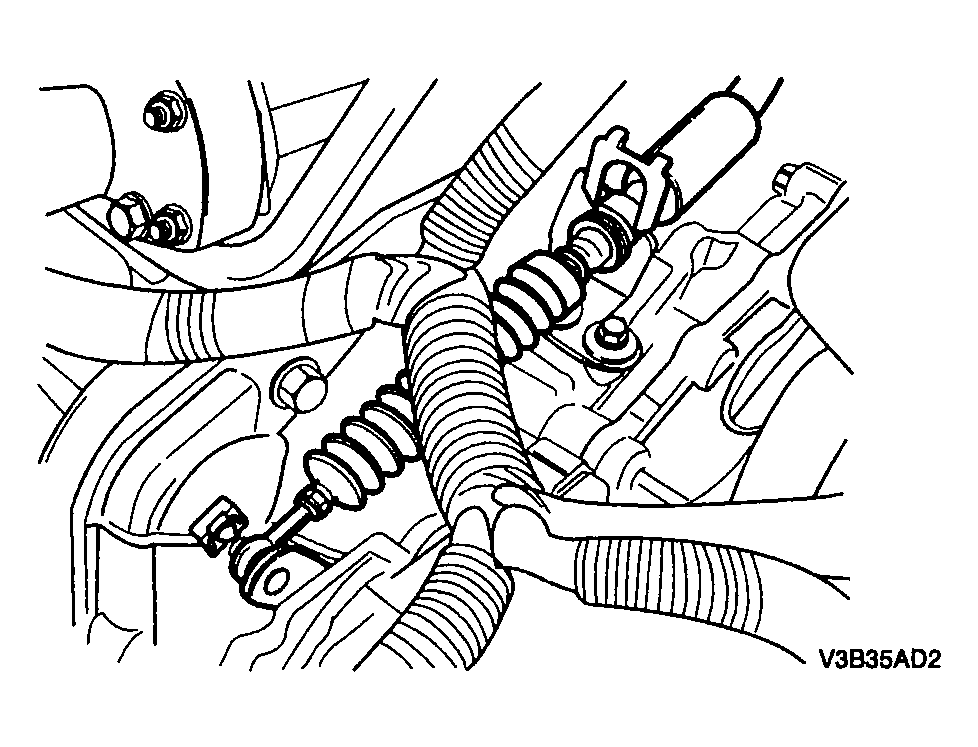

7. Remove the clips from the shift control cable and disconnect the shift control cable from the transaxle.
   Fig 3: Disconnecting Shift Control Cable From Transaxle

   Courtesy of SUZUKI OF AMERICA CORP.

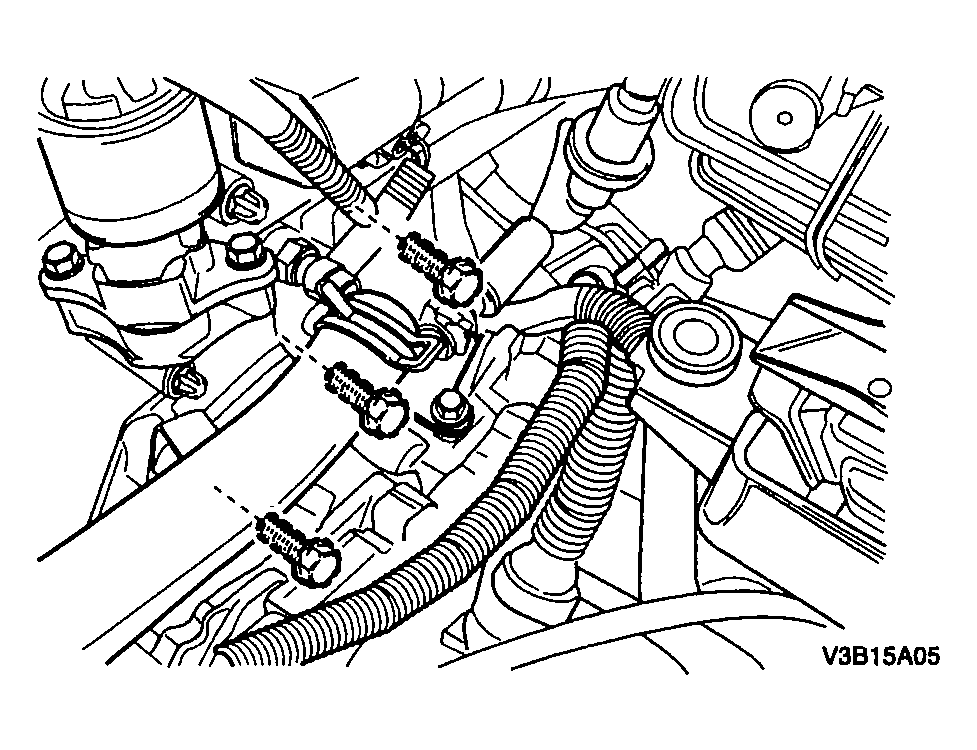

8. Remove the upper transaxle-to-engine bolts.
   Fig 4: Removing Upper Transaxle-To-Engine Bolts

   Courtesy of SUZUKI OF AMERICA CORP.
9. Remove the left transaxle mounting bracket. Refer to "LEFT TRANSAXLE MOUNTING BRACKET REMOVAL AND INSTALLATION :".

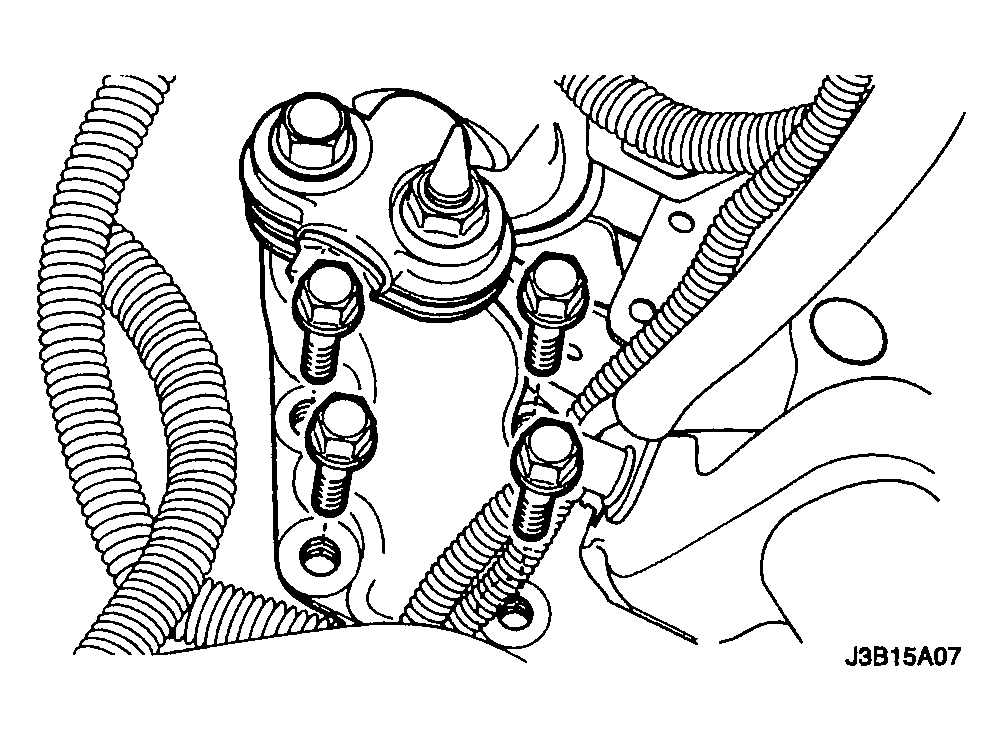

   Fig 5: Removing Left Transaxle Mounting Bracket

   Courtesy of SUZUKI OF AMERICA CORP.
10. Raise and suitably support the vehicle.
11. Drain the transaxle fluid.

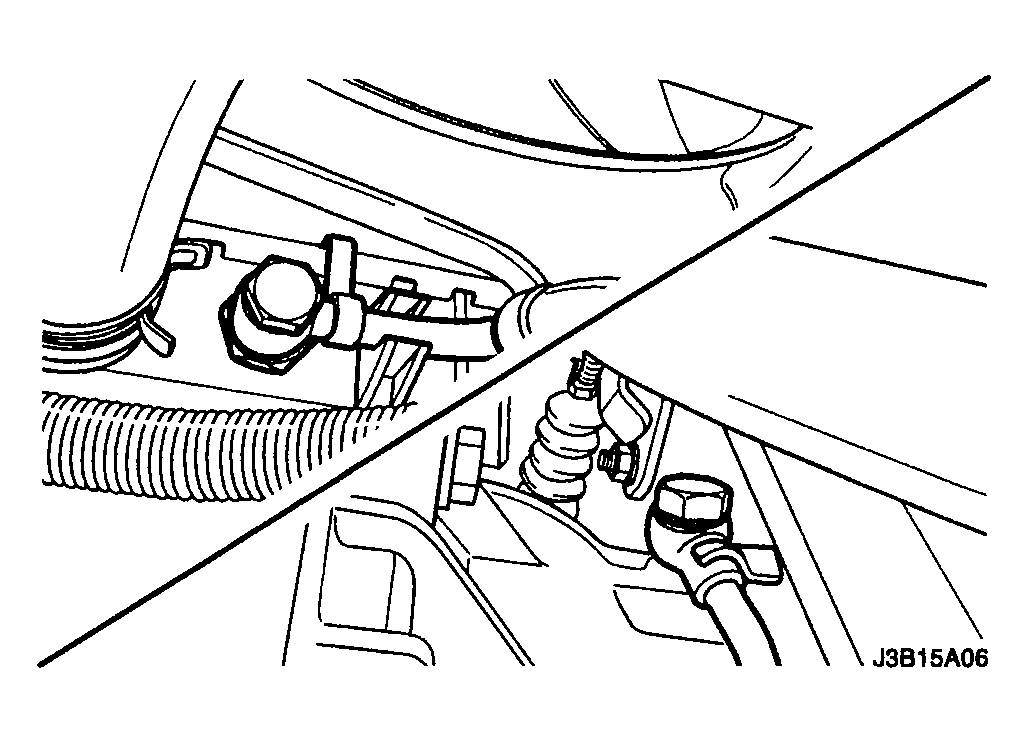

12. Remove the oil cooler pipes from the transaxle. Refer to "OIL COOLER PIPES/HOSES REMOVAL AND INSTALLATION :".
    Fig 6: Removing Oil Cooler Pipes From Transaxle

    Courtesy of SUZUKI OF AMERICA CORP.
13. Remove the drive axle. Refer to "DRIVE AXLE ASSEMBLY REMOVAL AND INSTALLATION : For Automatic Transaxle".
14. Remove the starter motor. Refer to "STARTER REMOVAL AND INSTALLATION :".
15. Remove the torque converter bolts.

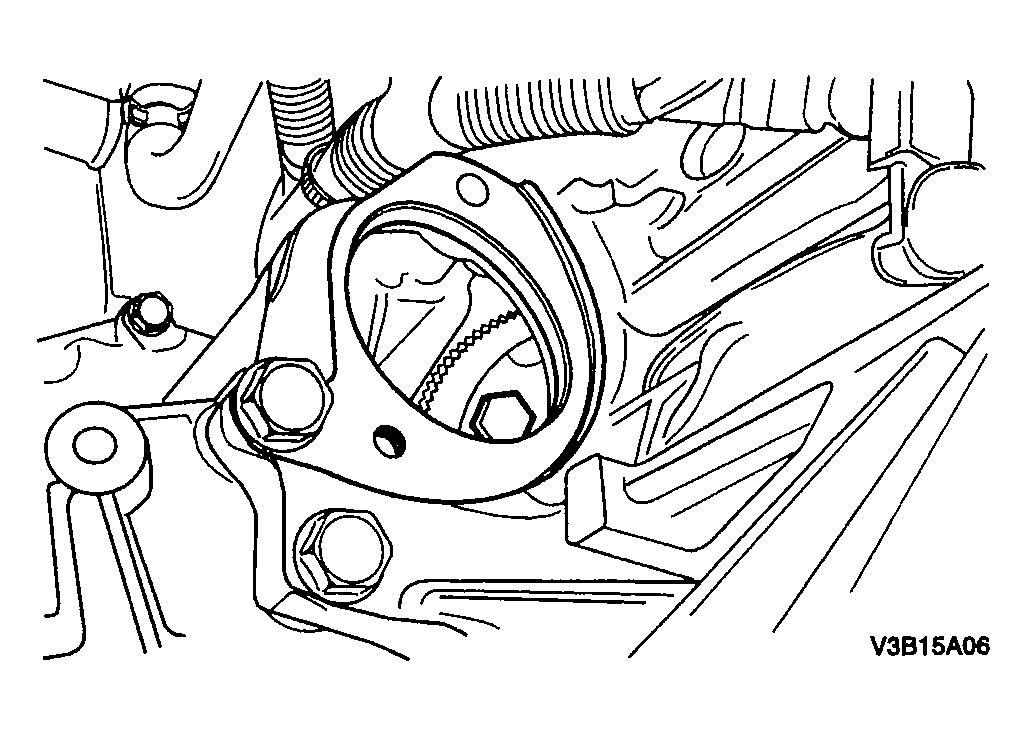

    Fig 7: Removing Torque Converter Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
16. Support the transaxle.

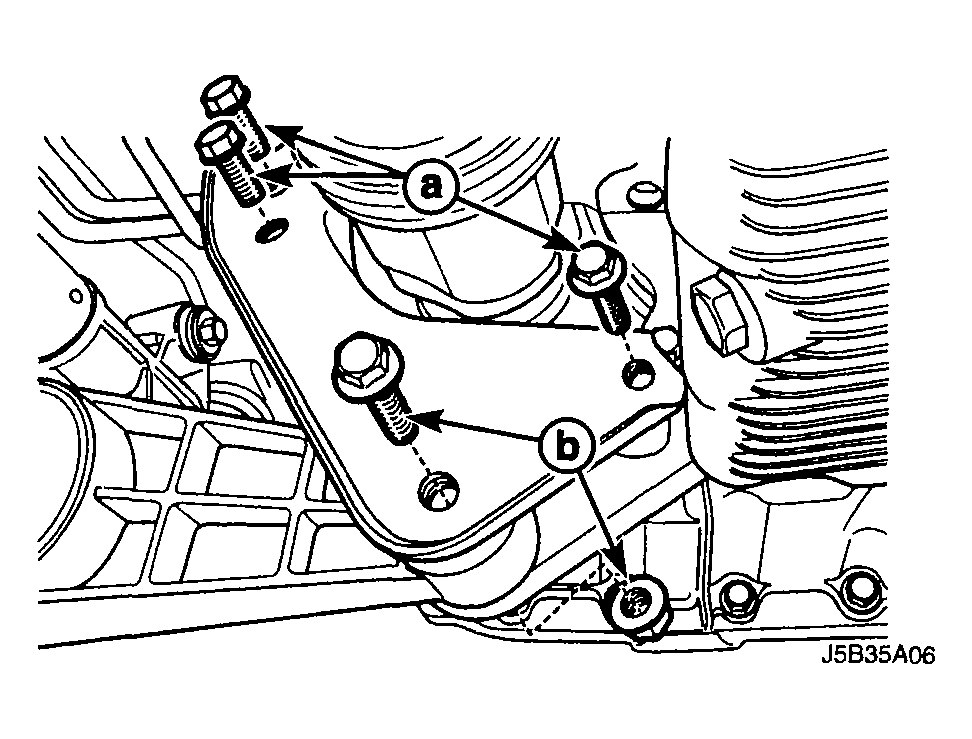

17. Remove the rear transaxle mounting bracket bolts (a) and damping block connection bolt and nut (b).
    Fig 8: Removing Rear Transaxle Mounting Bracket Bolts And Damping Block Connection Bolt And Nut

    Courtesy of SUZUKI OF AMERICA CORP.

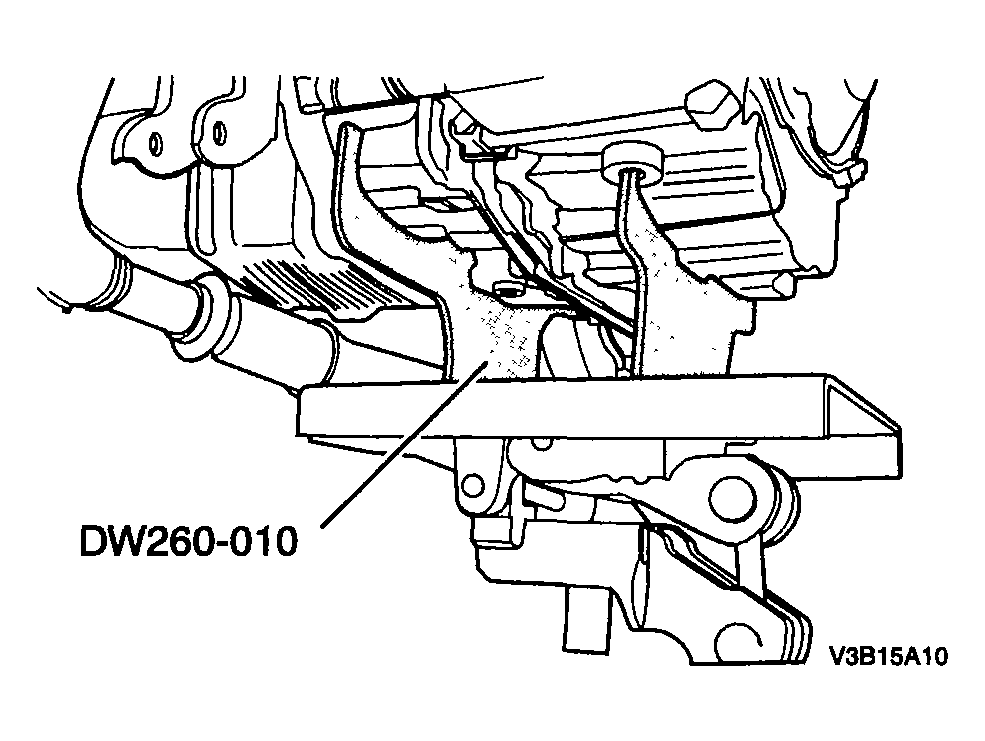

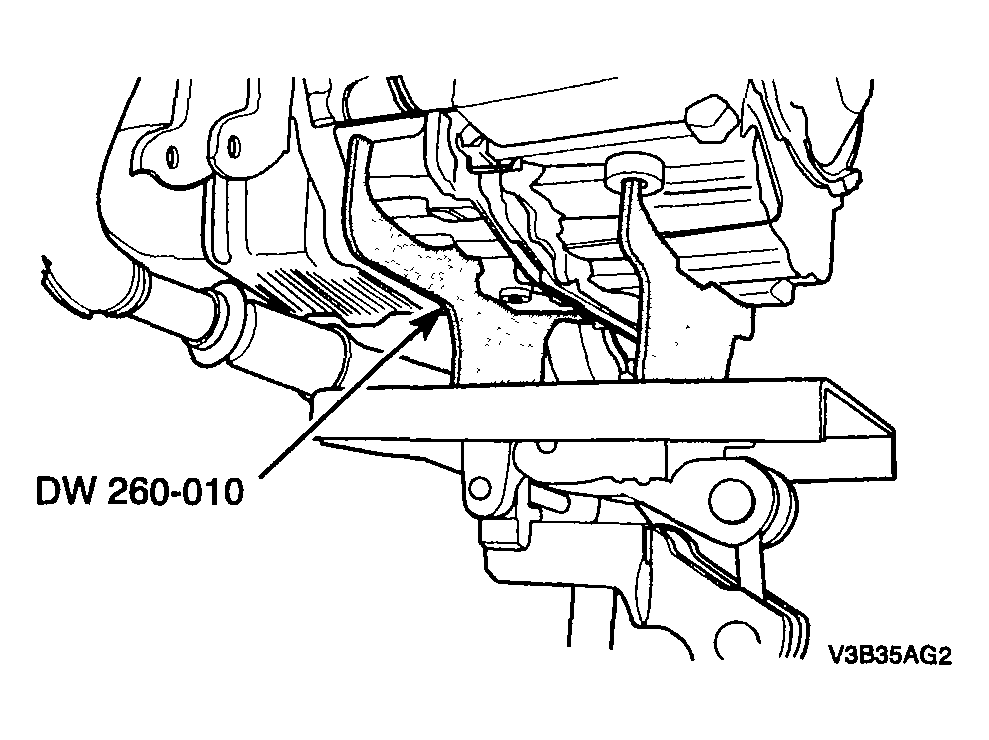

18. Support the transaxle assembly using the transaxle support fixture DW260-010.
    Fig 9: Supporting Transaxle Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
19. Remove the lower engine-to-transaxle bolts.

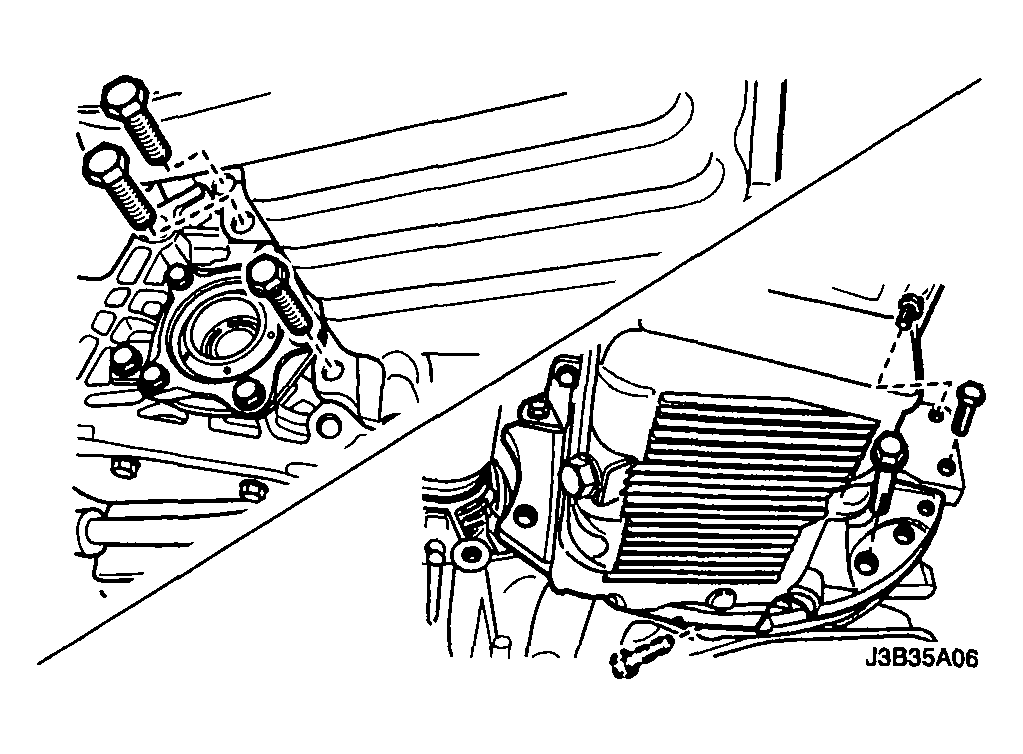

    Fig 10: Removing Lower Engine-To-Transaxle Bolts

    Courtesy of SUZUKI OF AMERICA CORP.
20. Remove the transaxle assembly.
    Fig 11: Removing Transaxle Assembly

    Courtesy of SUZUKI OF AMERICA CORP.
