Disassembly and Assembly

  1. Remove the transaxle assembly. Refer to "TRANSAXLE ASSEMBLY REMOVAL AND INSTALLATION :".
  2. Remove the torque converter assembly.
  3. Installation should follow the removal procedure in the reverse order.

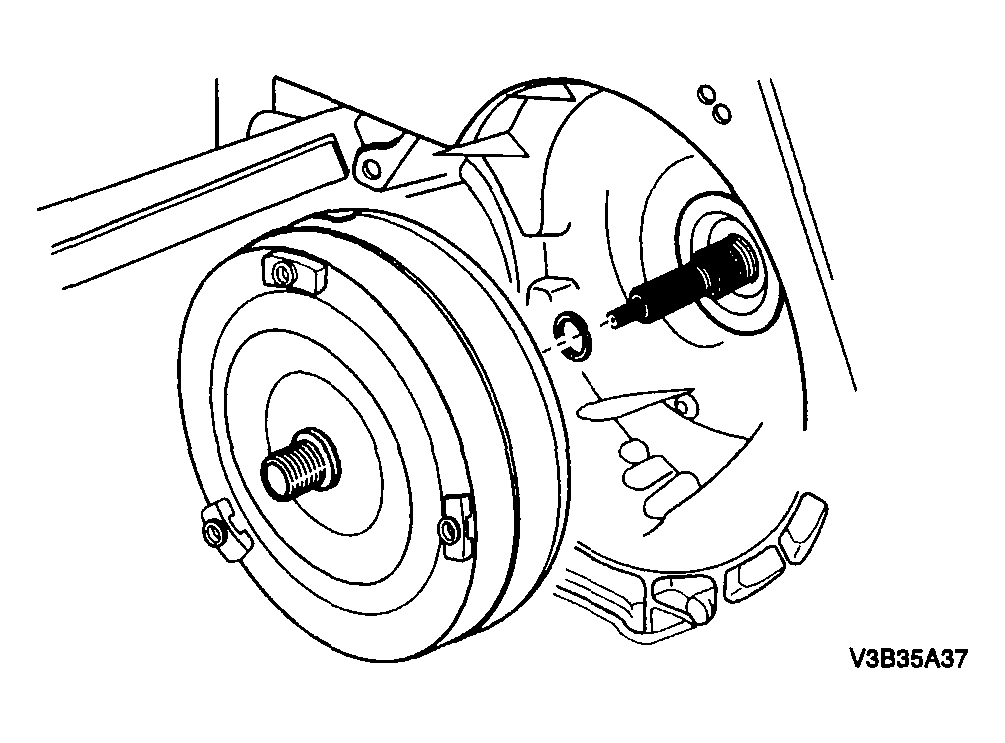

    Fig 1: Disassembling/Assembling Torque Converter
    G04103590Courtesy of SUZUKI OF AMERICA CORP.
