Shift Control Lever Assembly Removal and Installation: Installation

Install the shift control assembly.
Tighten

Tighten the bolts and nuts to 8 N.m (71 lb-in).

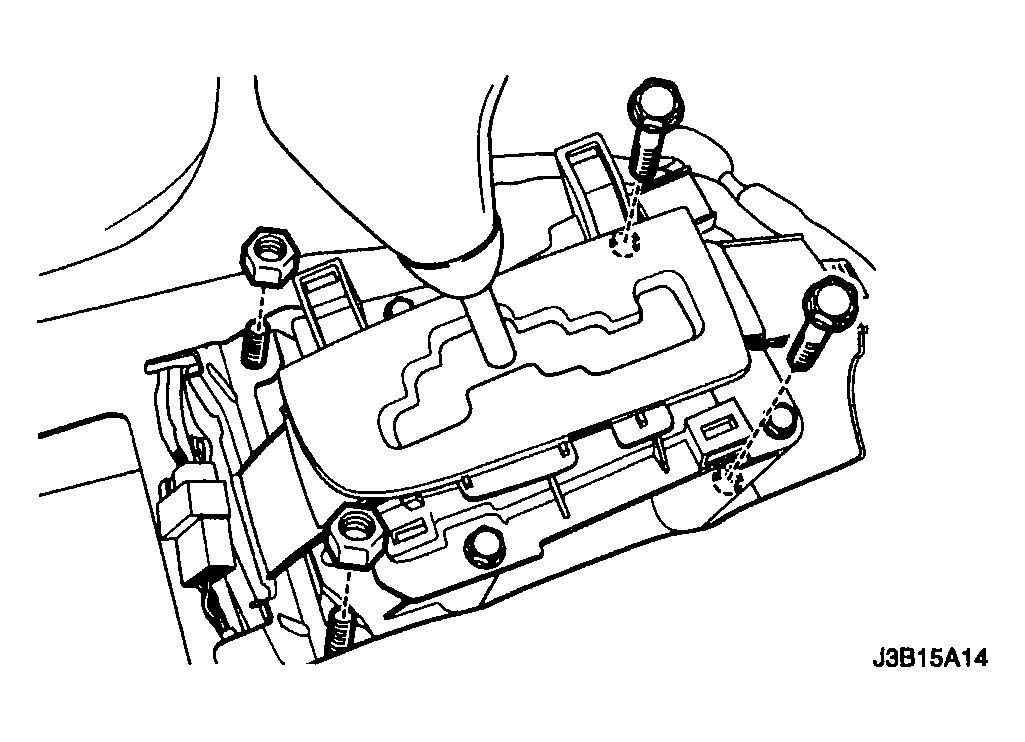

Fig 1: Installing Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable onto the bracket.
Install the shift control cable adjuster pinch nut.
Tighten

Tighten the shift control cable adjuster pinch nut to 8 N.m (71 lb-in).

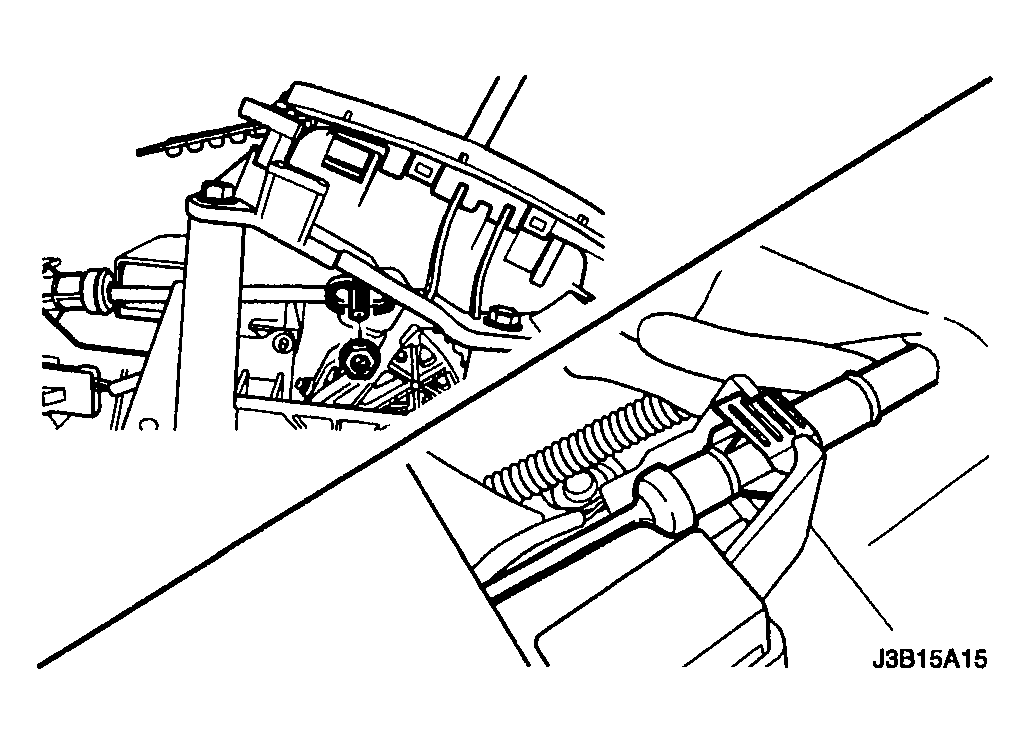

Fig 2: Installing Shift Control Cable Onto Bracket
Courtesy of SUZUKI OF AMERICA CORP.
Connect the electrical switch connectors.
Install the floor console. Refer to "FLOOR CONSOLE REMOVAL AND INSTALLATION :".
Connect the negative battery cable.

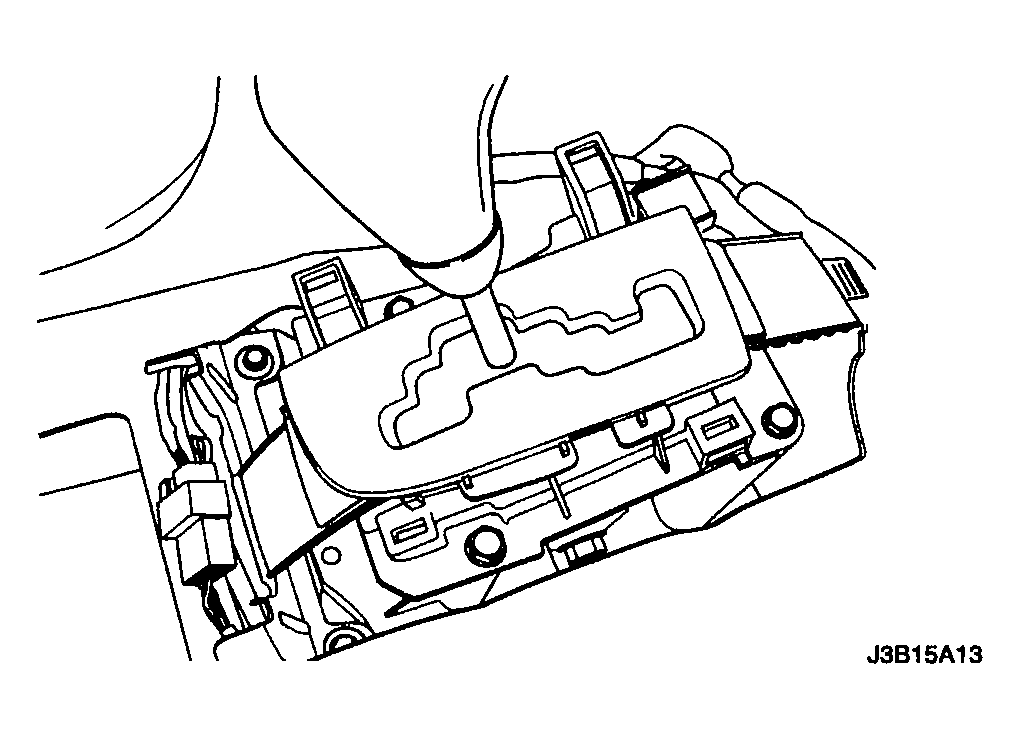

Fig 3: Installing Floor Console
Courtesy of SUZUKI OF AMERICA CORP.
