Shift Control Cable Removal and Installation: Removal

Disconnect the negative battery cable.
Remove the clip from the selector lever connection on the transaxle case and disconnect the shift control cable from the selector lever connection.
Remove the clip from the shift control cable at the transaxle mount connection.

Fig 1: Removing Clip From Shift Control Cable
Courtesy of SUZUKI OF AMERICA CORP.
Remove the floor console. Refer to "FLOOR CONSOLE REMOVAL AND INSTALLATION :".
Loosen the shift control cable adjuster pinch nut.
Remove the shift control cable from the shift control assembly.

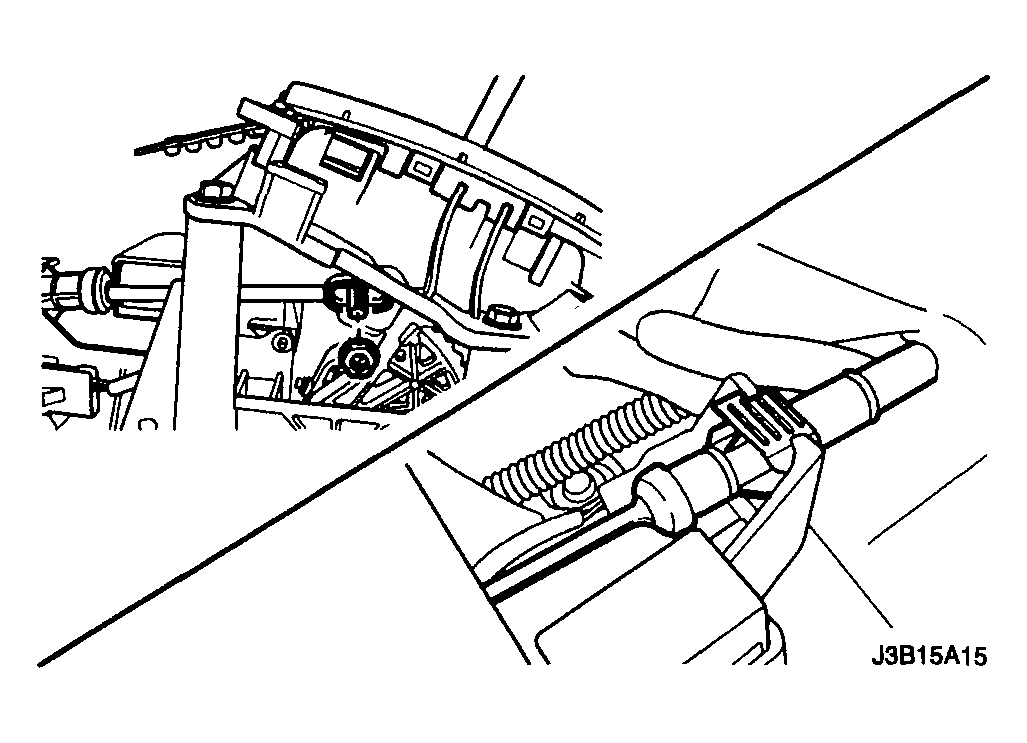

Fig 2: Removing Shift Control Cable From Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Remove the shift control cable from the transaxle mount.
Pull the shift control cable through the fire wall of the vehicle, bringing the rubber grommet with it.

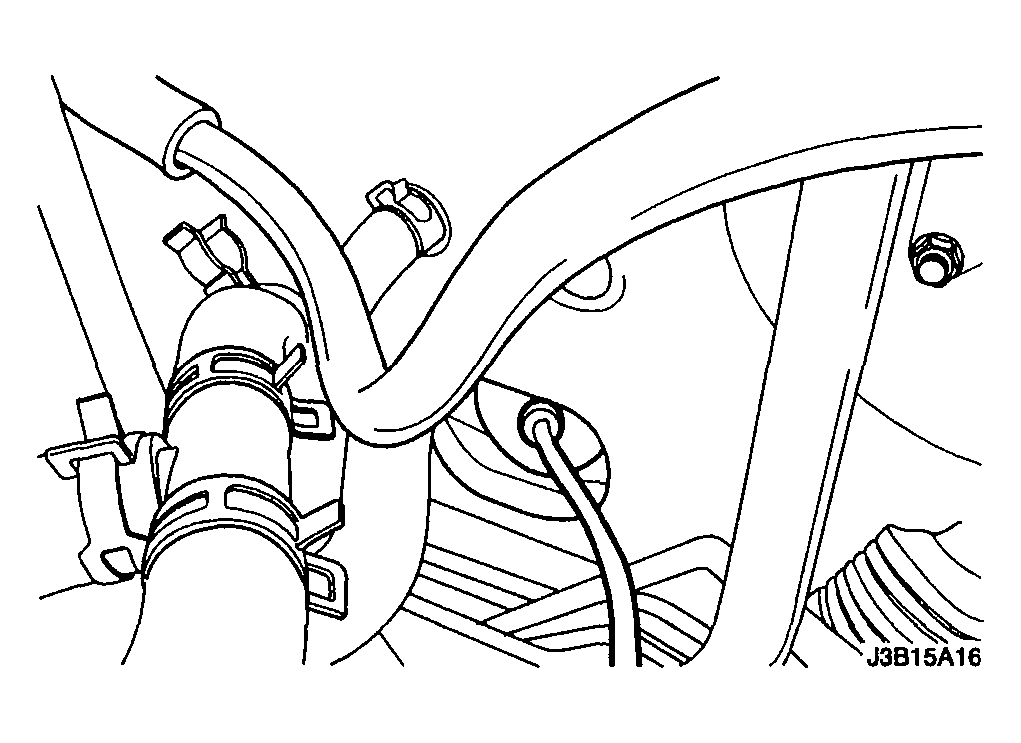

Fig 3: Pulling Shift Control Cable Through Fire Wall Of Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
