Shift Control Cable Removal and Installation: Installation

Install the shift control cable into the fire wall of the vehicle.
Install the shift control cable onto the transaxle mount.

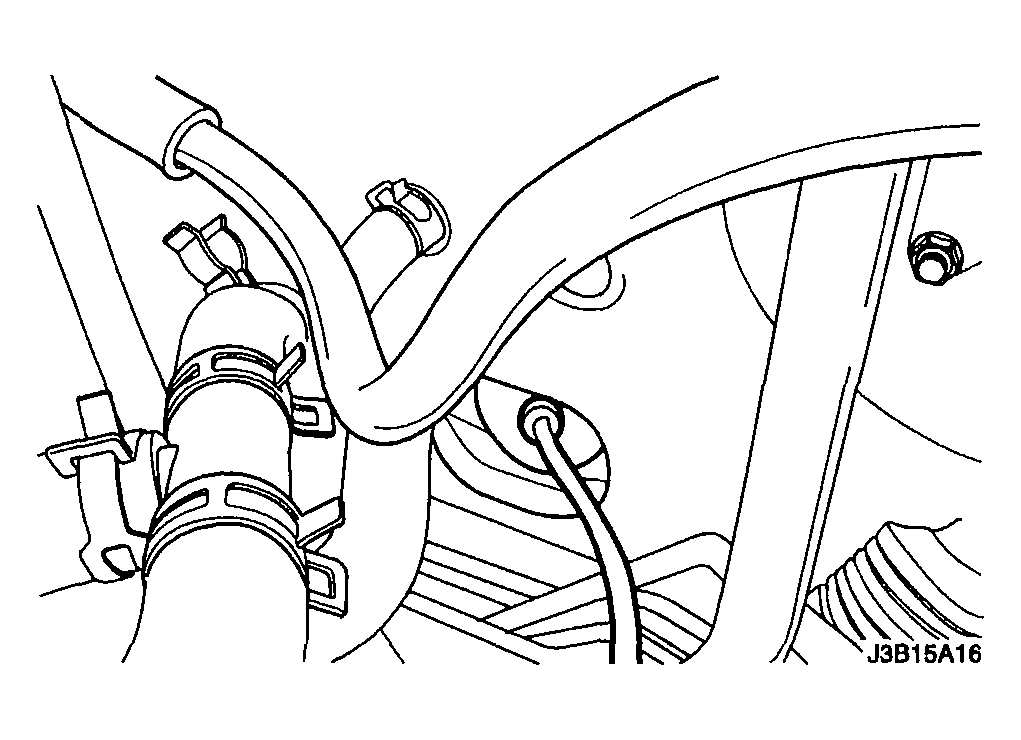

Fig 1: Installing Shift Control Cable Into Fire Wall Of Vehicle
Courtesy of SUZUKI OF AMERICA CORP.
Install the shift control cable onto the shift control assembly.
Install the shift control cable adjuster pinch nut.
Tighten

Tighten the nut to 8 N.m (71 lb-in).

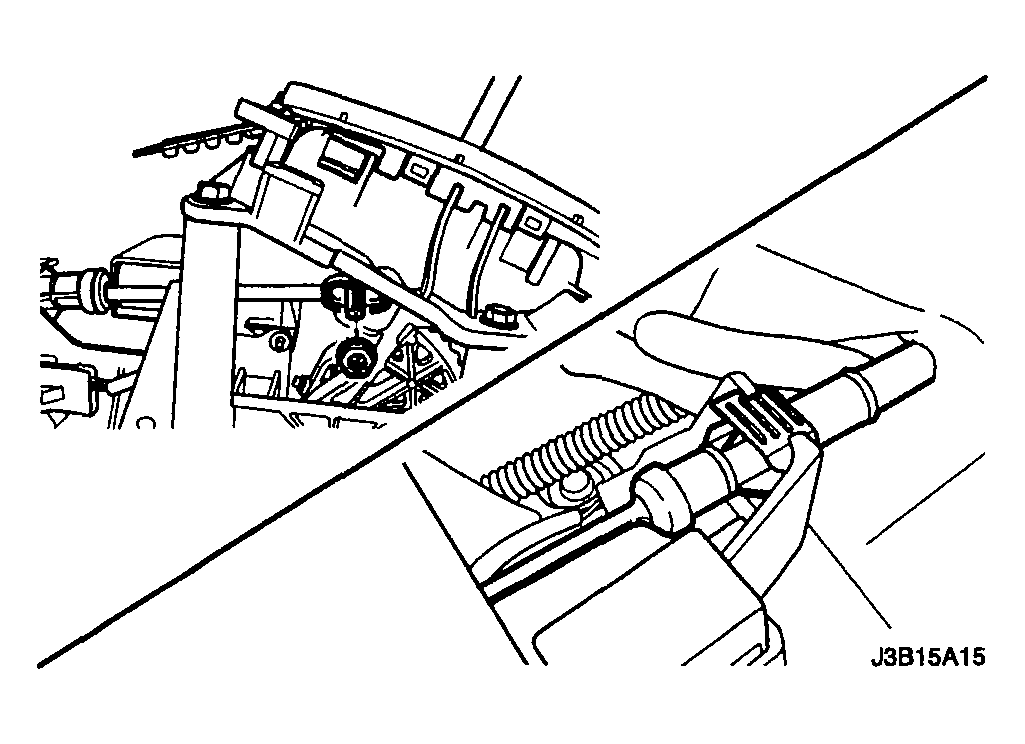

Fig 2: Installing Shift Control Cable Onto Shift Control Assembly
Courtesy of SUZUKI OF AMERICA CORP.
Install the clip to the shift control cable at the transaxle mount connection.
Install the clip to the select lever connection on the transaxle case.
Adjust the shift control cable. Refer to "SHIFT CONTROL CABLE ADJUSTMENT :".
Connect the negative battery cable.

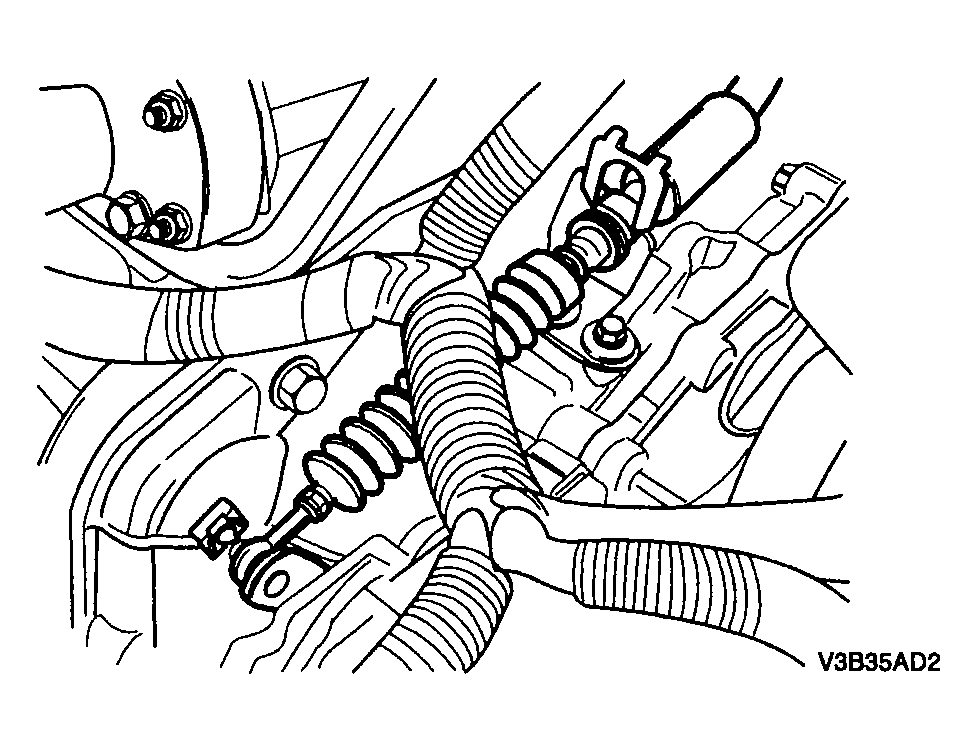

Fig 3: Installing Clip To Select Lever Connection On Transaxle Case
Courtesy of SUZUKI OF AMERICA CORP.
