Planetary Gear Set Disassembly and Assembly

Remove the clutch B/E. Refer to "LOCK-UP CLUTCH (TCC) :".
Remove the rear sun gear.

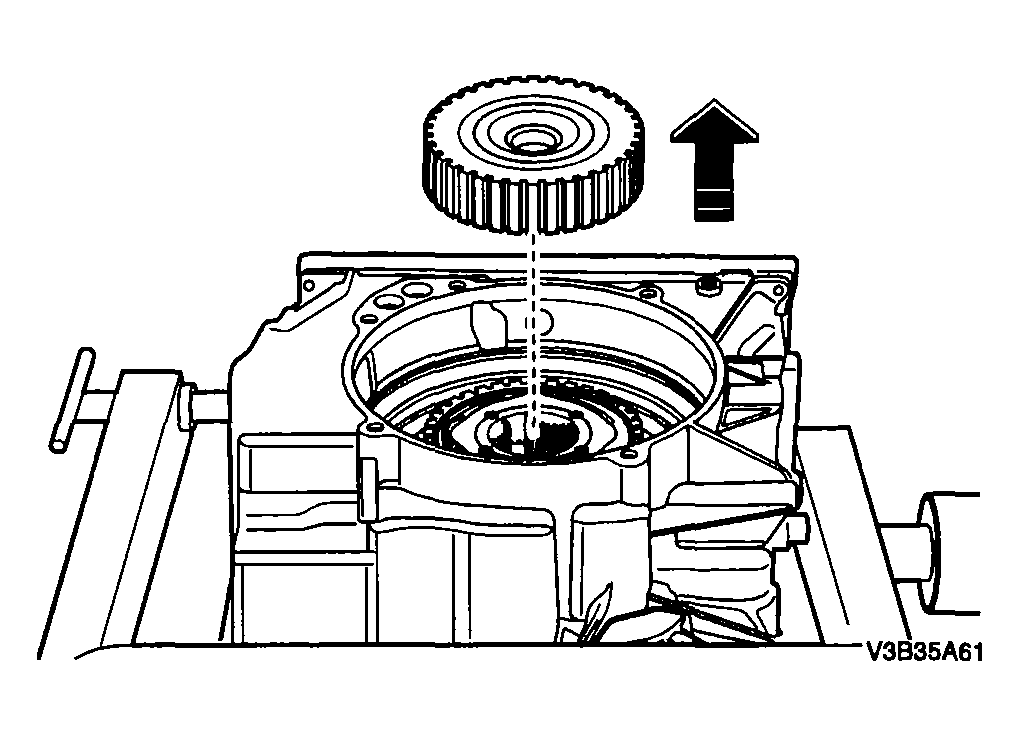

Fig 1: Removing Rear Sun Gear
Courtesy of SUZUKI OF AMERICA CORP.
Remove the planetary gear set.

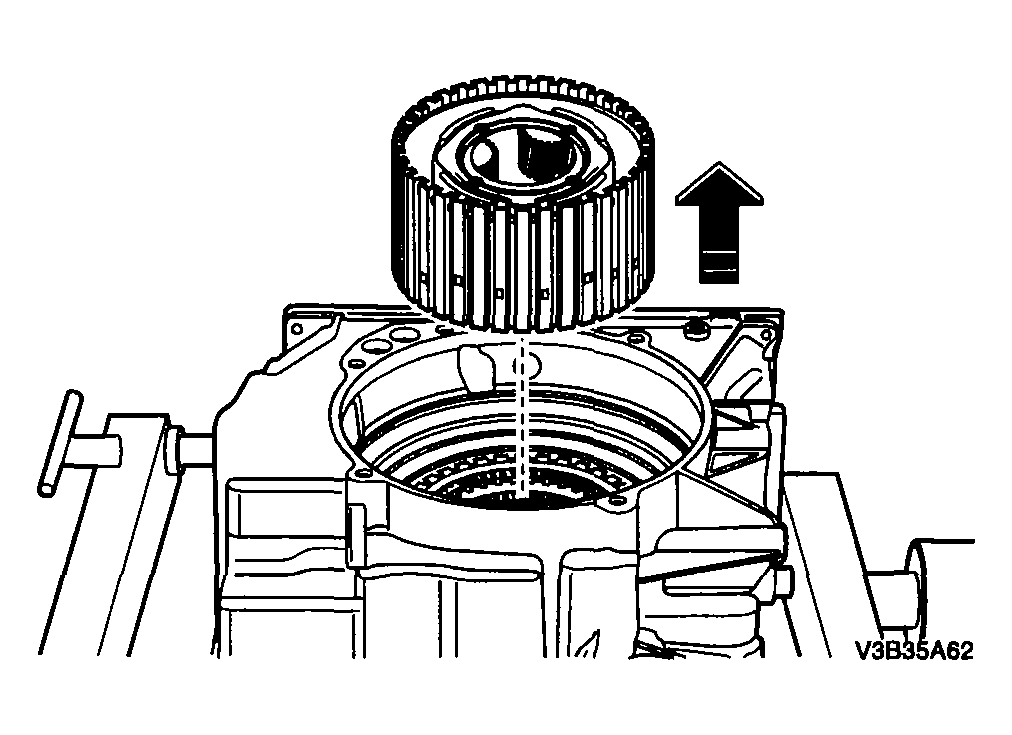

Fig 2: Removing Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
Remove snap ring from front ring gear.

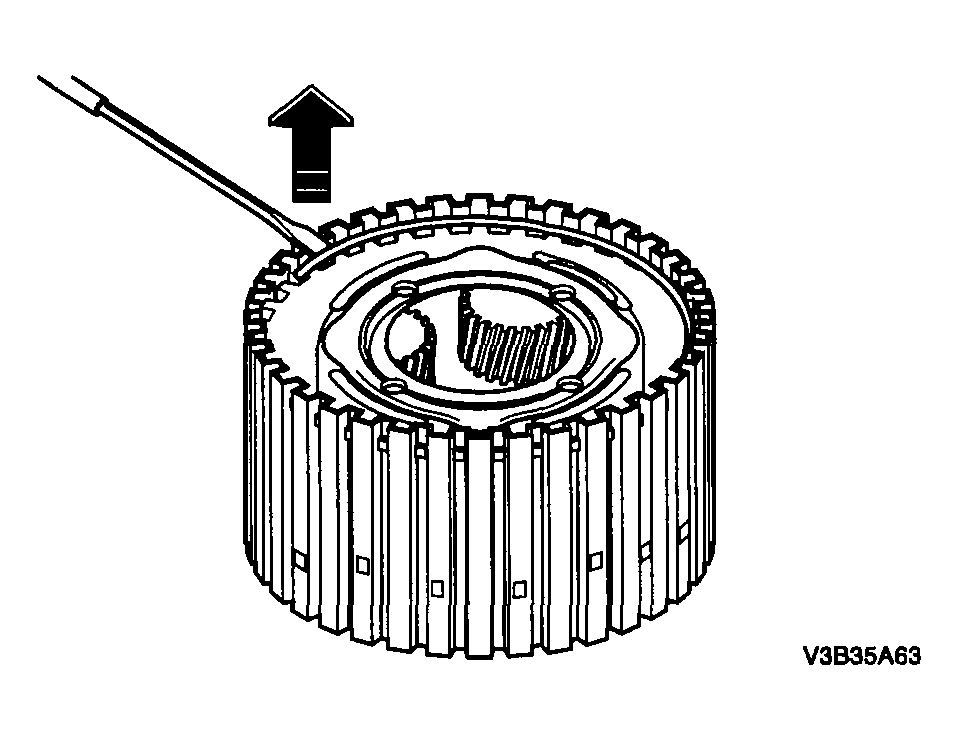

Fig 3: Removing Snap Ring From Front Ring Gear
Courtesy of SUZUKI OF AMERICA CORP.
Take out rear planetary gear set.

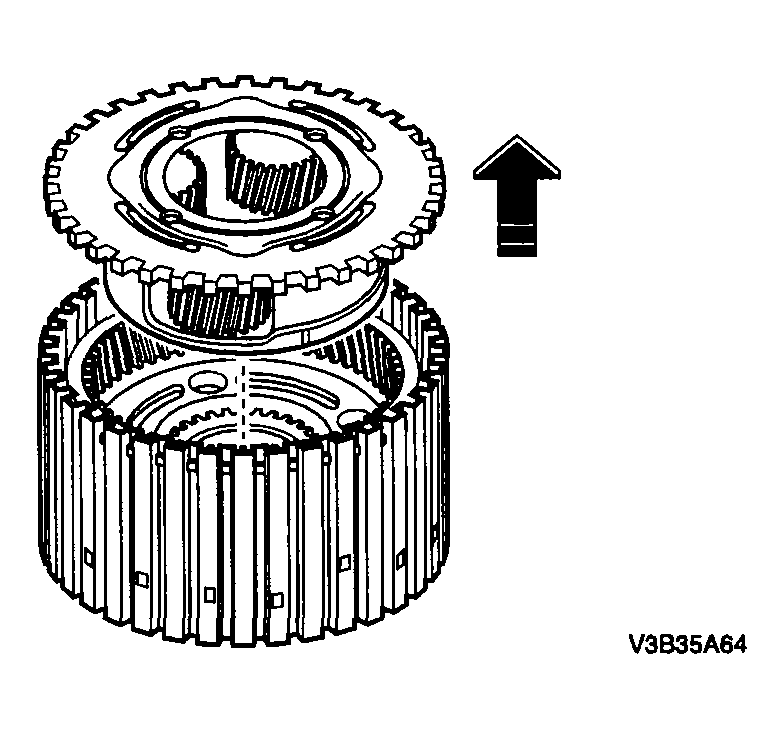

Fig 4: Removing Rear Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
Remove the axial needle bearing.

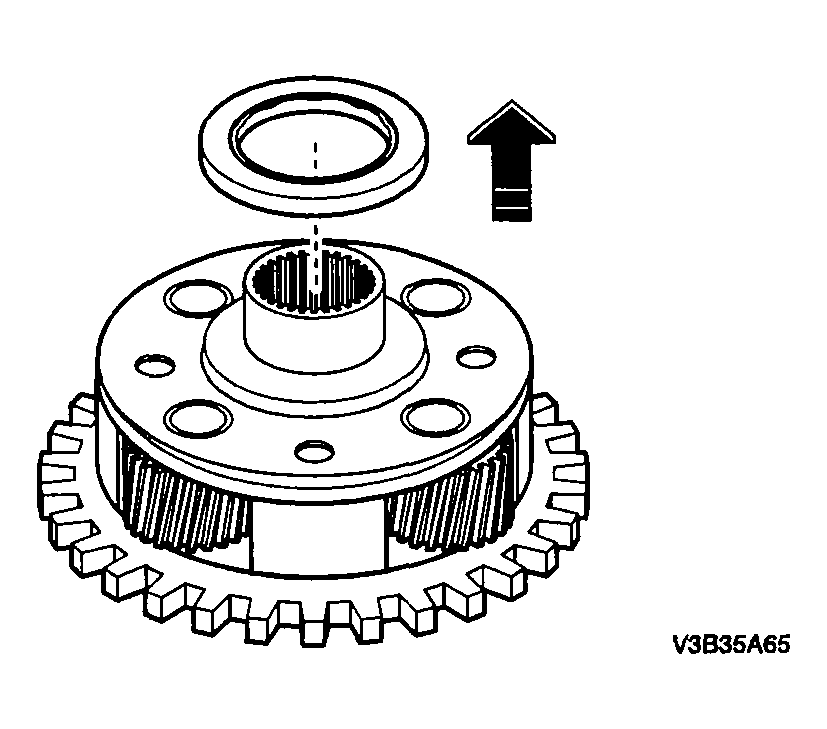

Fig 5: Removing Axial Needle Bearing
Courtesy of SUZUKI OF AMERICA CORP.
Take out front gear set with rear ring gear, front sun gear and oil trays.

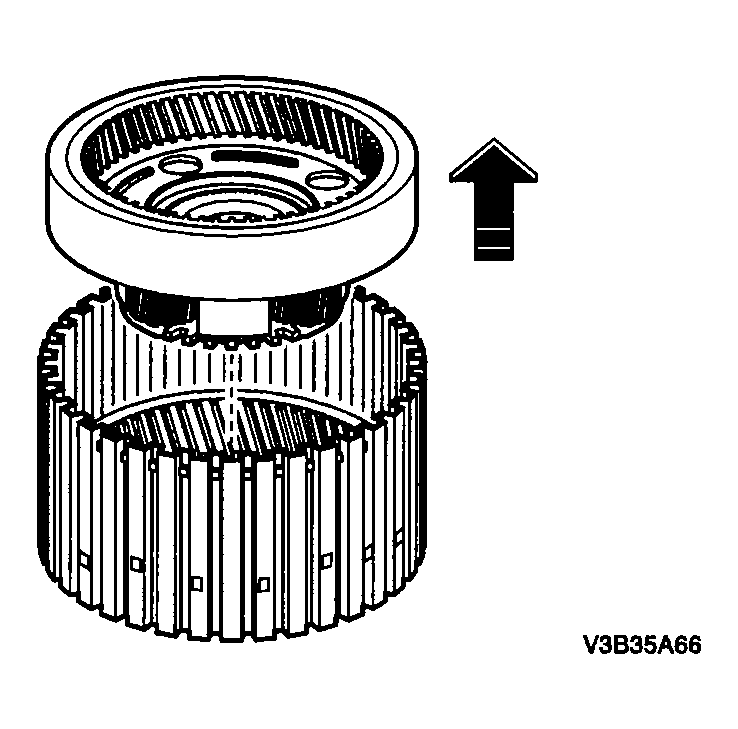

Fig 6: Removing Front Gear Set With Rear Ring Gear, Front Sun Gear And Oil Trays
Courtesy of SUZUKI OF AMERICA CORP.
Take oil trays and front sun gear off the planetary gear set.
Installation should follow the removal procedure in the reverse order.

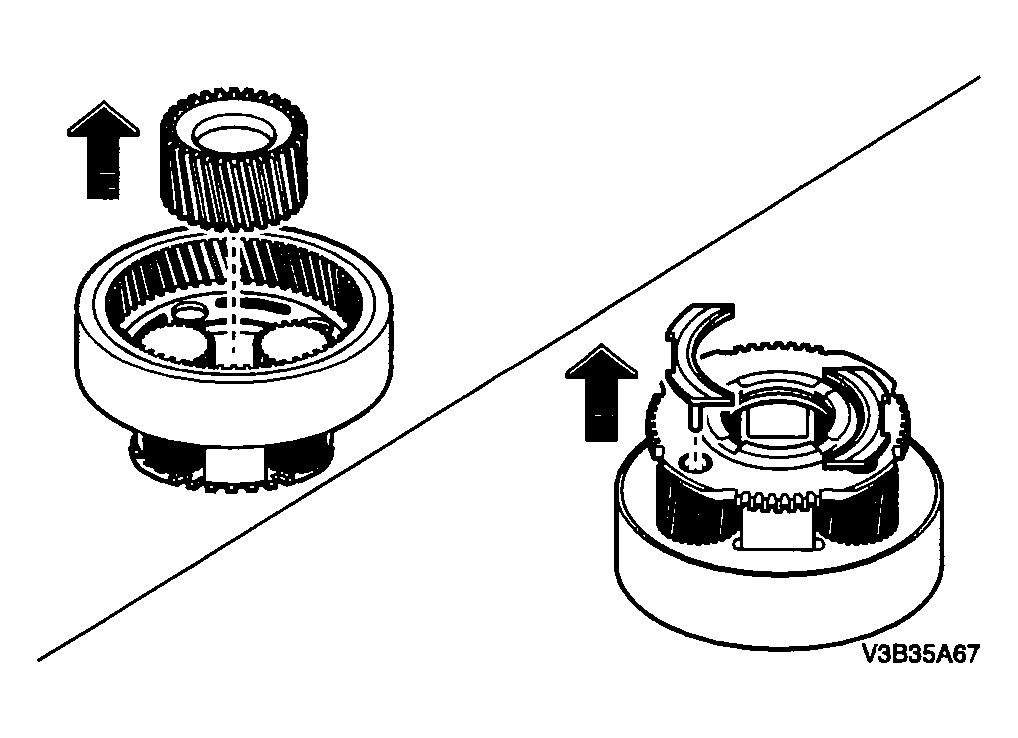

Fig 7: Removing Oil Trays And Front Sun Gear Off Planetary Gear Set
Courtesy of SUZUKI OF AMERICA CORP.
