Parking Lock System Disassembly and Assembly

  1. Remove the parking lock assembly.
    • Parking lock system is consist of parking pawl, leg spring, support bolt.
  2. Installation should follow the removal procedure in the reverse order.

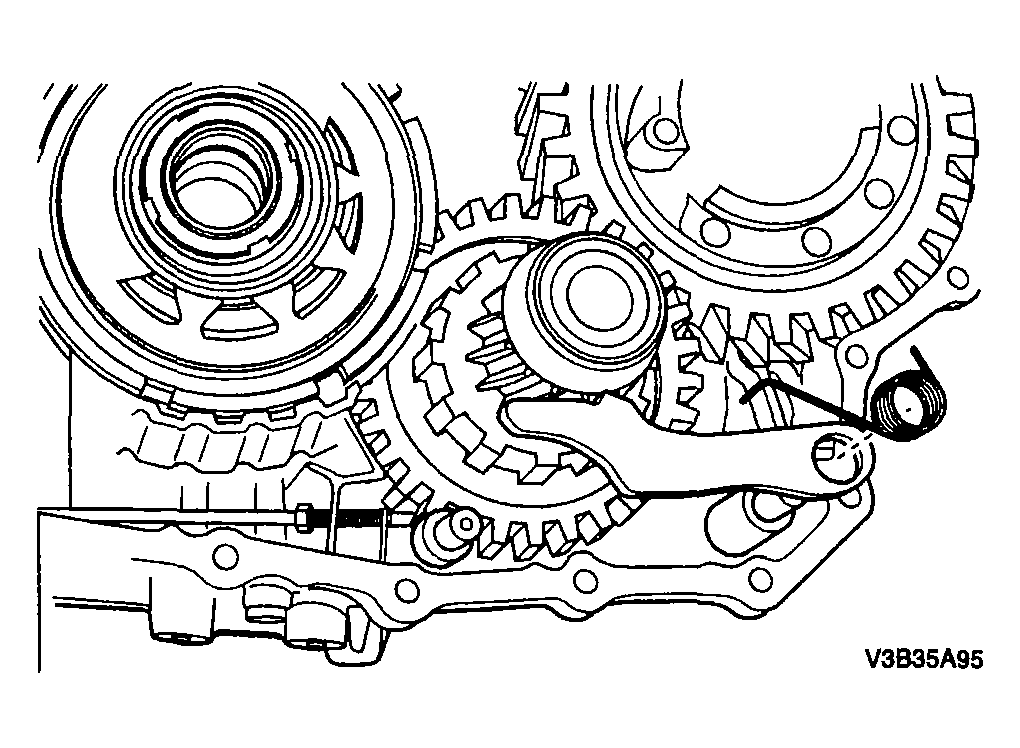

    Fig 1: Removing Parking Lock Assembly
    G04103648Courtesy of SUZUKI OF AMERICA CORP.
