Park/Neutral Start Switch Removal and Installation: Removal

  1. Disconnect the negative battery cable.
  2. Disconnect the park/neutral position switch electrical connector.
  3. Disconnect the shift control cable and the retaining clip.

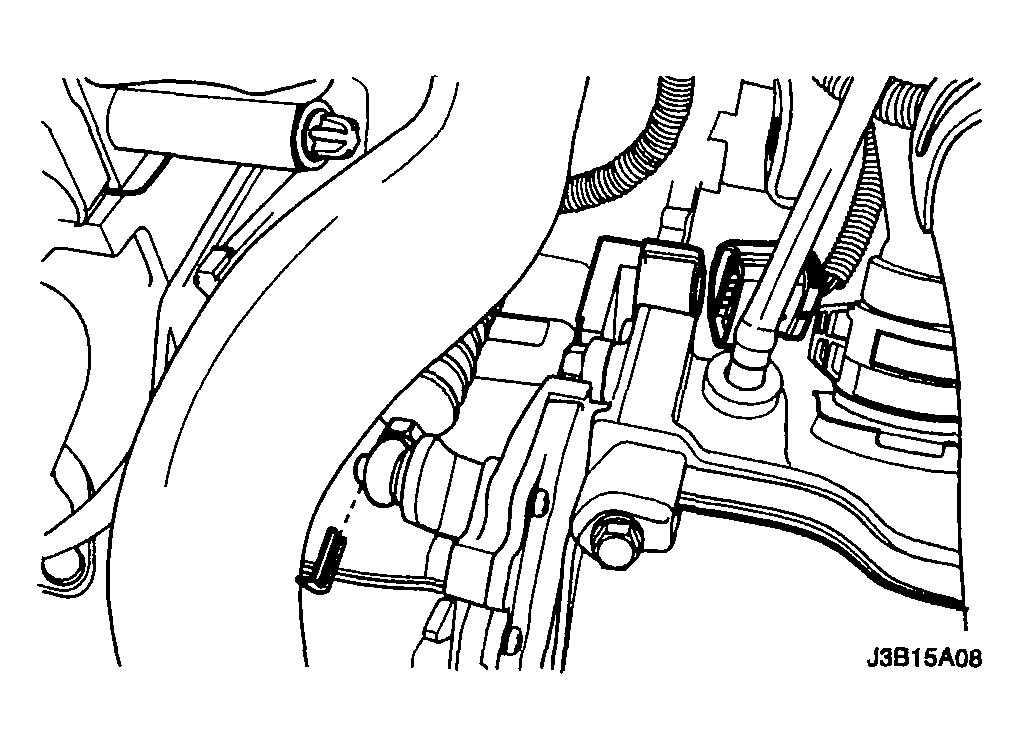

    Fig 1: Disconnecting Shift Control Cable And Retaining Clip
    G04103534Courtesy of SUZUKI OF AMERICA CORP.
  4. Remove the shift lever nut and the shift lever.

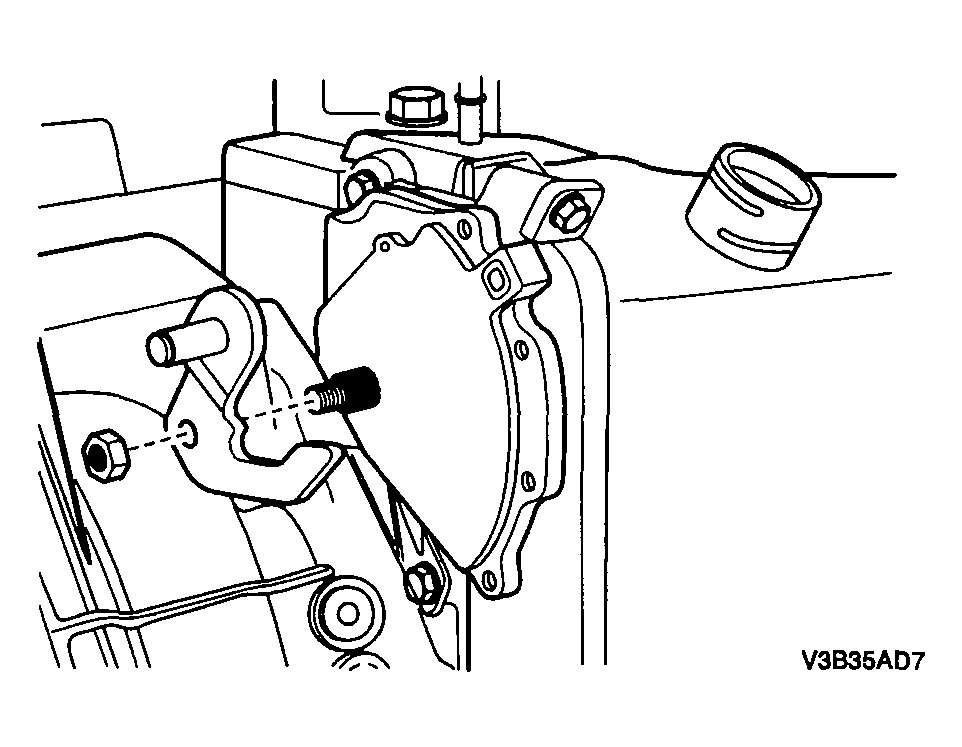

    Fig 2: Removing Shift Lever Nut And Shift Lever
    G04103535Courtesy of SUZUKI OF AMERICA CORP.
  5. Remove the park/neutral start switch.

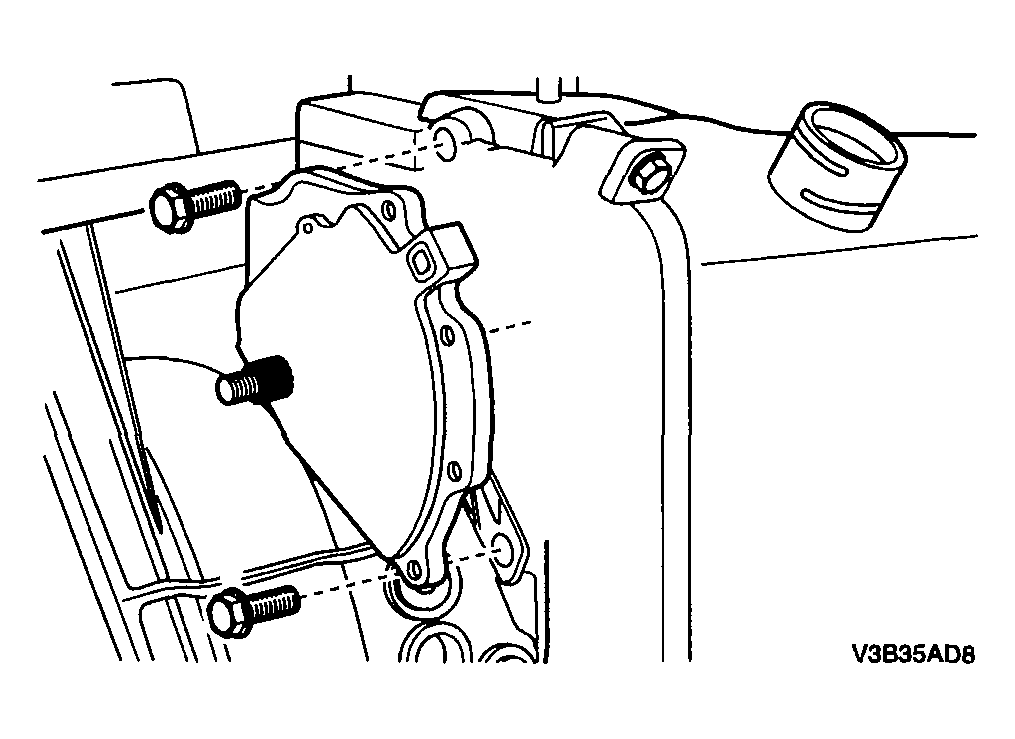

    Fig 3: Removing Park/Neutral Start Switch
    G04103536Courtesy of SUZUKI OF AMERICA CORP.
