Oil Pump Assembly Disassembly and Assembly

  1. Remove the oil pump housing bolts.
  2. Using the plastic hammer. Take out the oil pump housing.

    Installation Notice

    Tighten

    Tighten the oil pump housing bolts 10 N.m (89 lb-in).

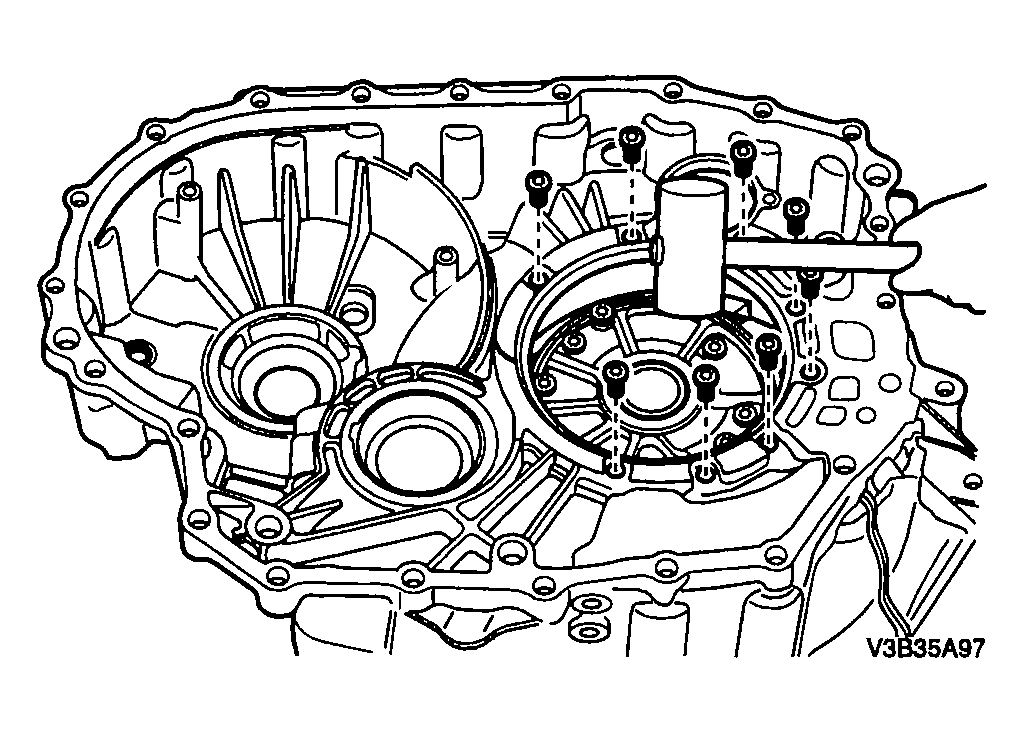

    Fig 1: Removing Oil Pump Housing
    G04103651Courtesy of SUZUKI OF AMERICA CORP.
  3. Remove the stator shaft bolts.
    Fig 2: Removing Stator Shaft Bolts
    G04103652Courtesy of SUZUKI OF AMERICA CORP.
  4. Dismantle the oil pump gear, ring gear.
  5. Installation should follow the removal procedure in the reverse order.

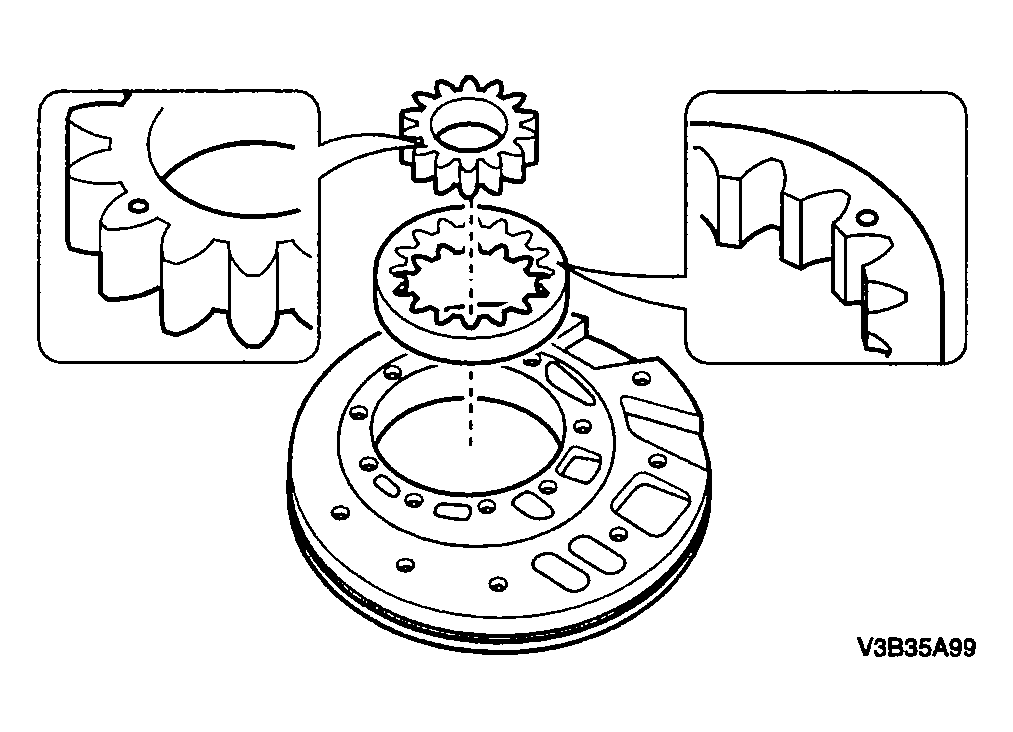

    Fig 3: Dismantling Oil Pump Gear, Ring Gear
    G04103653Courtesy of SUZUKI OF AMERICA CORP.
