Left Transaxle Mounting Bracket Removal and Installation: Installation

Install the left transaxle mount bracket cage bolts and nut.
Tighten
- Tighten the left transaxle mount bracket cage bolt (a) to 110 N.m (81 lb-ft).
- Tighten the left transaxle mount bracket cage bolt (b) to 65 N.m (48 lb-ft).
- Tighten the nut (c) to 65 N.m (48 lb-ft).

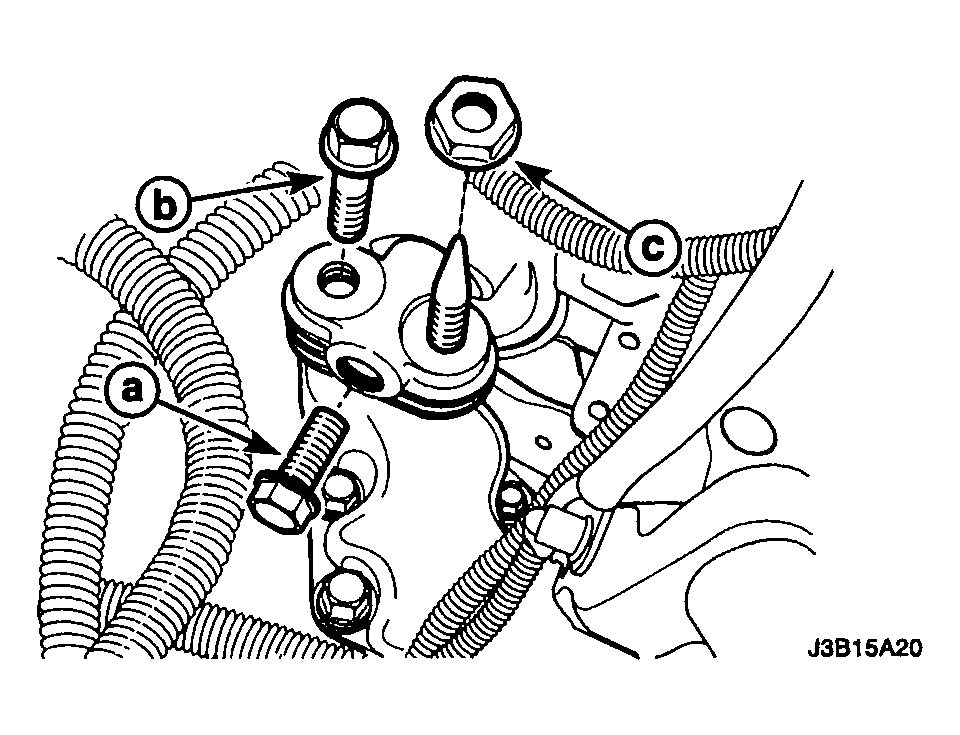

  Fig 1: Installing Left Transaxle Mount Bracket Cage Bolts And Nut
  Courtesy of SUZUKI OF AMERICA CORP.
Install the left transaxle mounting bolts to 48 N.m (35 lb-ft).

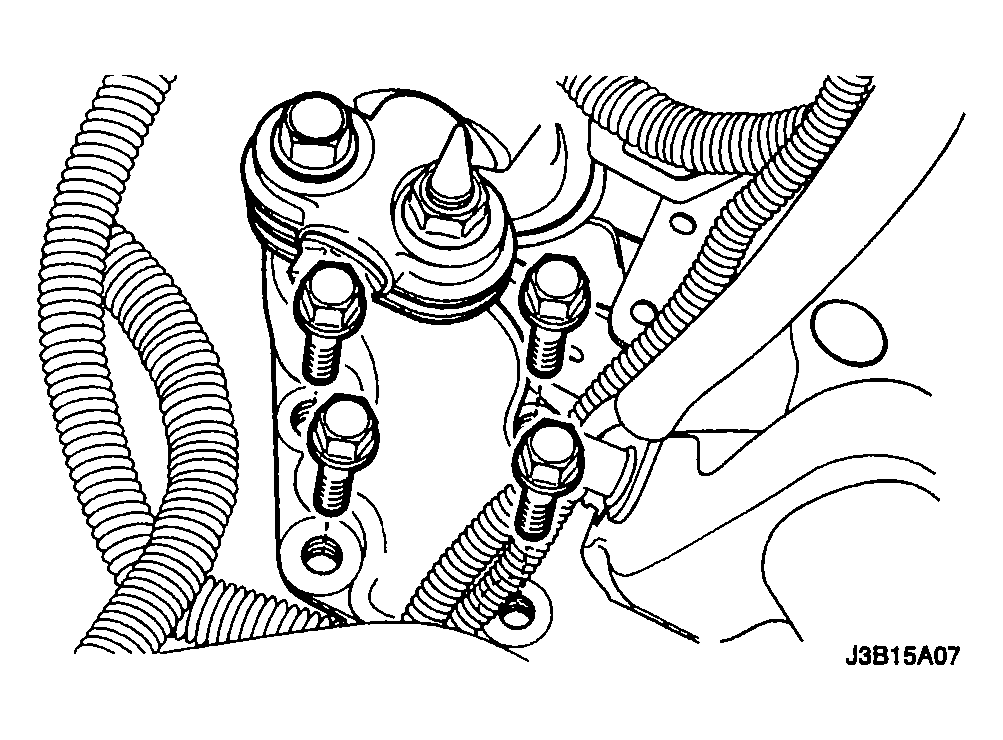

Fig 2: Installing Left Transaxle Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Remove the engine support fixture DW110-060.
Install the battery. Refer to "BATTERY AND BATTERY TRAY REMOVAL AND INSTALLATION :".

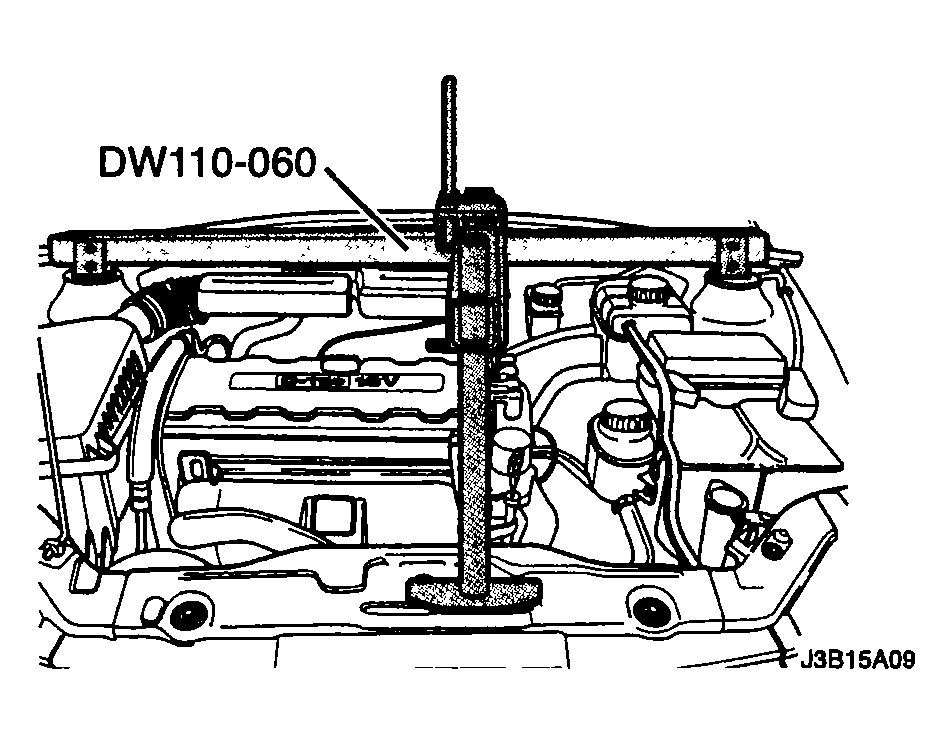

Fig 3: Removing Engine Support Fixture DW110-060
Courtesy of SUZUKI OF AMERICA CORP.
