Control Valve Body Assembly Removal and Installation: Removal

Disconnect the negative battery cable.
Disconnect the transaxle wiring harness and the park/neutral position switch electrical connector.

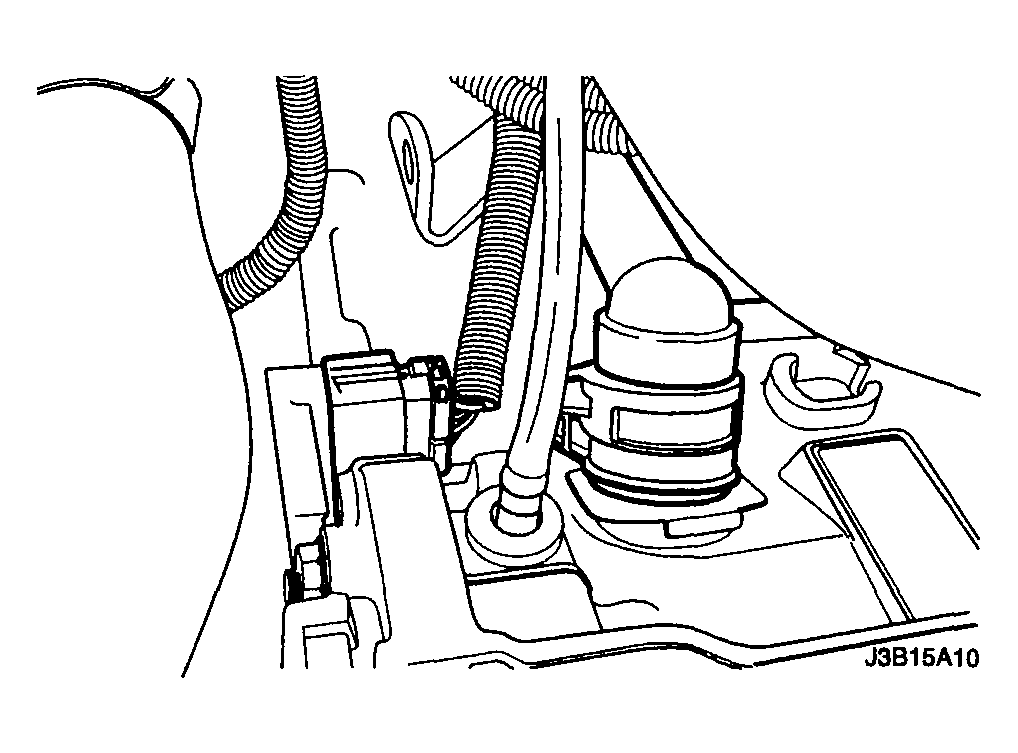

Fig 1: Identifying Transaxle Wiring Harness And Park/Neutral Position Switch Electrical Connector
Courtesy of SUZUKI OF AMERICA CORP.
Raise and suitably support the vehicle.
Remove the engine under cover. Refer to "ENGINE UNDER COVERS REMOVAL AND INSTALLATION :".
Remove the transaxle fluid drain plug using the plug remover/installer DW260-070 and drain the transaxle fluid.

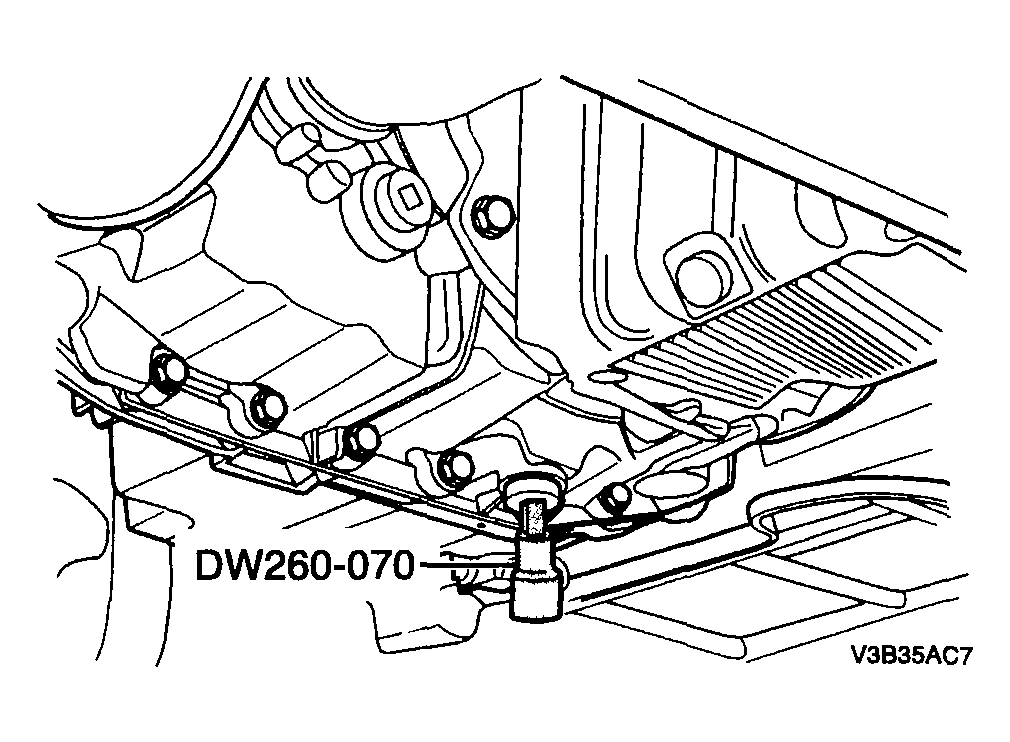

Fig 2: Removing Transaxle Fluid Drain Plug
Courtesy of SUZUKI OF AMERICA CORP.
Remove the oil pan, oil pan gasket. Refer to "OIL PAN, OIL PAN GASKET REMOVAL AND INSTALLATION :".
Remove the valve body mounting bolts.
Remove the automatic transmission input speed sensor mounting bolt.

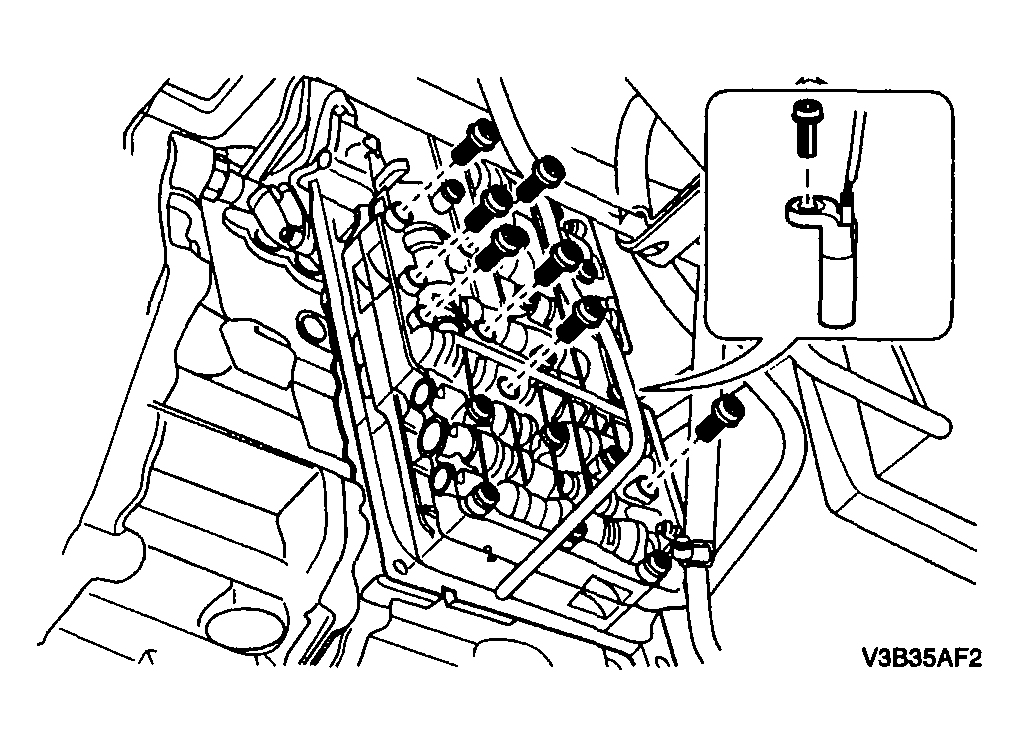

Fig 3: Removing Valve Body Mounting Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Tilt the valve body.
Remove the automatic transmission output speed sensor mounting bolt under the valve body assembly.

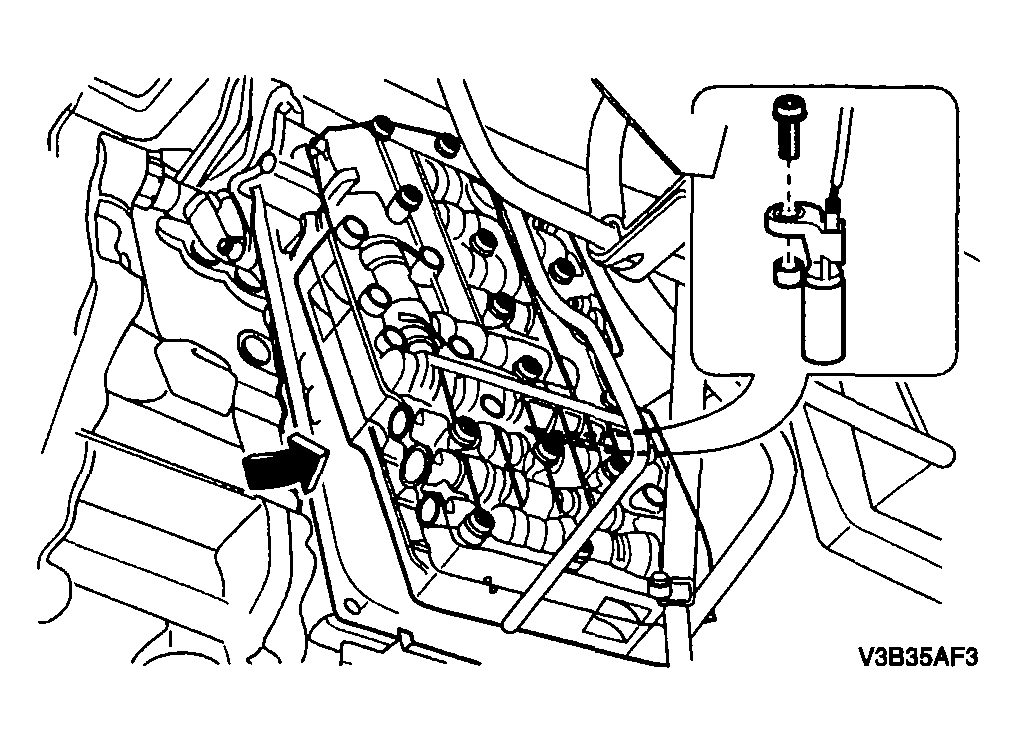

Fig 4: Removing Automatic Transmission Output Speed Sensor Mounting Bolt
Courtesy of SUZUKI OF AMERICA CORP.
Remove the control valve body.

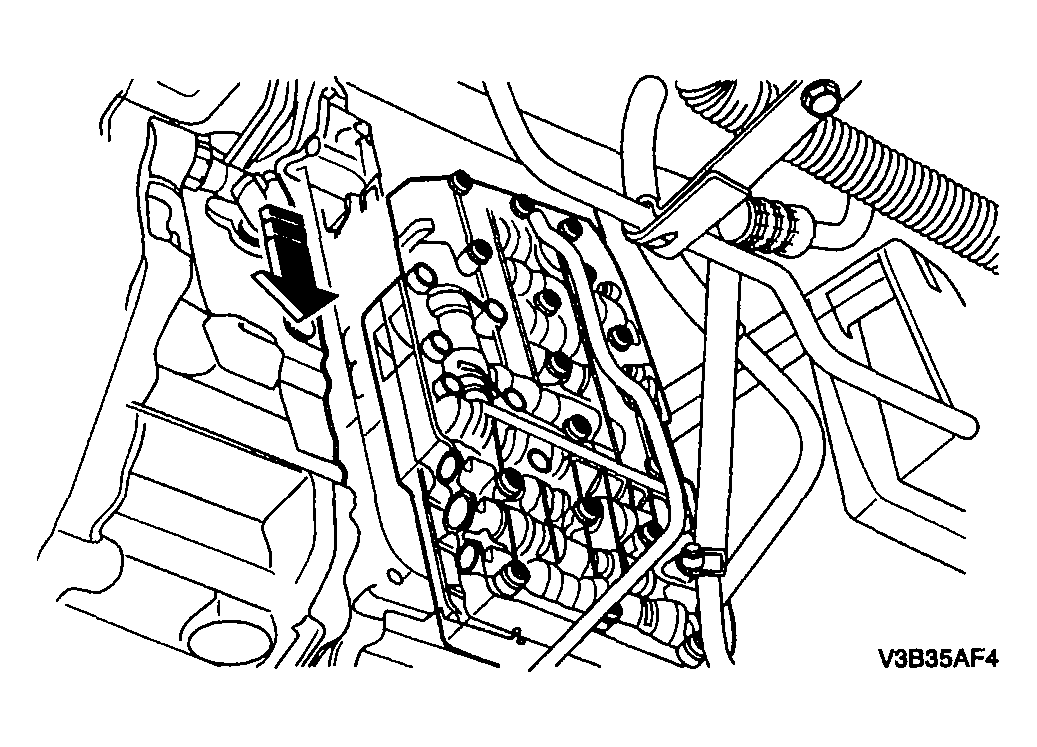

Fig 5: Removing Control Valve Body
