Control Valve Body Assembly Removal and Installation: Installation

  1. Tilt the valve body.
  2. Install the output speed sensor mounting bolt.

    Tighten

    Tighten the output speed sensor mounting bolt to 6 N.m (53 lb-in).

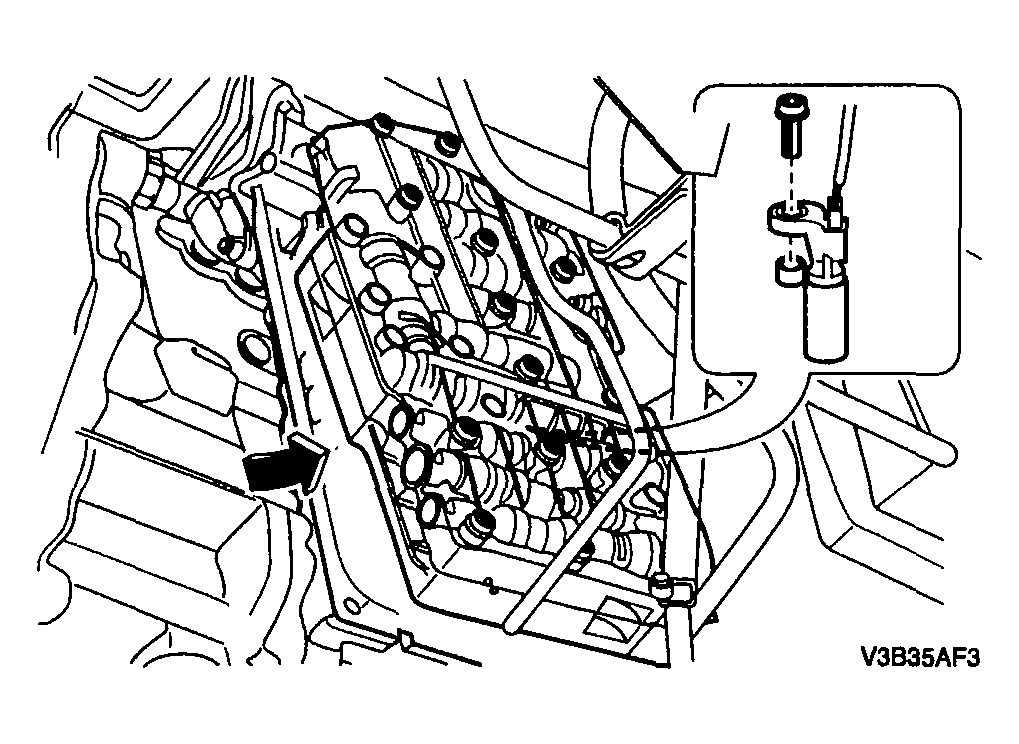

    Fig 1: Installing Output Speed Sensor Mounting Bolt
    G04103559Courtesy of SUZUKI OF AMERICA CORP.
  3. Install the control valve body and the bolts.

    Tighten

    Tighten the valve body mounting bolts to 8 N.m (71 lb-in).

  4. Install the input speed sensor mounting bolt.

    Tighten

    Tighten the input speed sensor mounting bolt to 8 N.m (71 lb-in).

  5. Install the oil pan and oil pan gasket. Refer to "OIL PAN, OIL PAN GASKET REMOVAL AND INSTALLATION :".

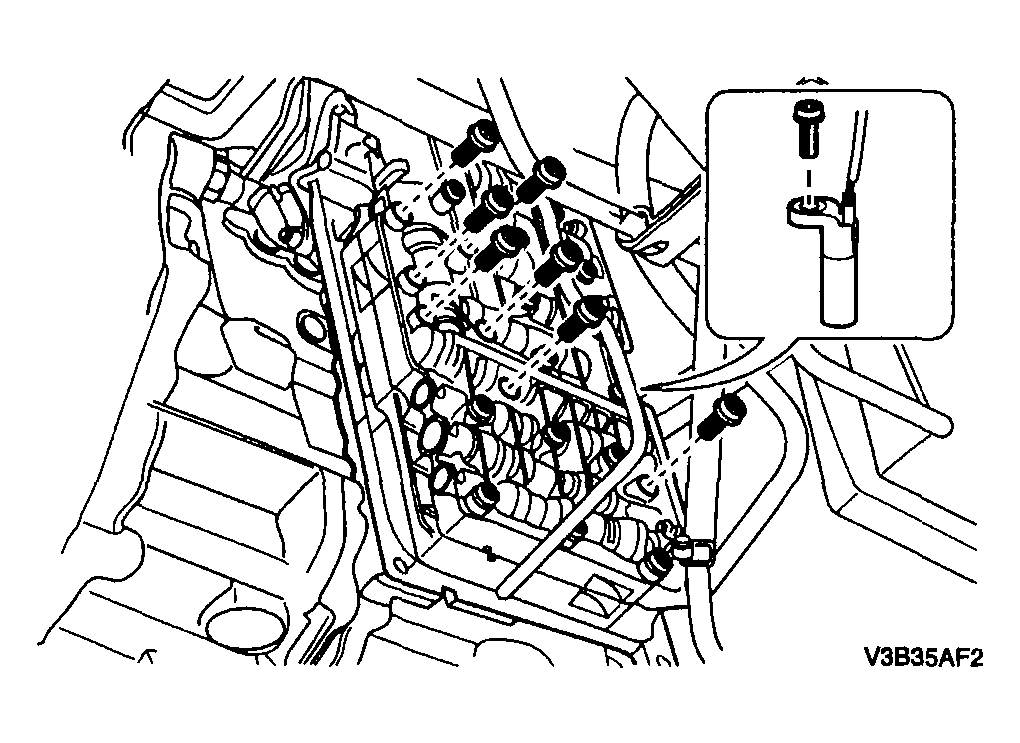

    Fig 2: Installing Input Speed Sensor Mounting Bolt
    G04103560Courtesy of SUZUKI OF AMERICA CORP.
  6. Install the transaxle fluid drain plug using the plug remove/installer DW260-070.
  7. Install the engine under cover. Refer to "ENGINE UNDER COVERS REMOVAL AND INSTALLATION :".

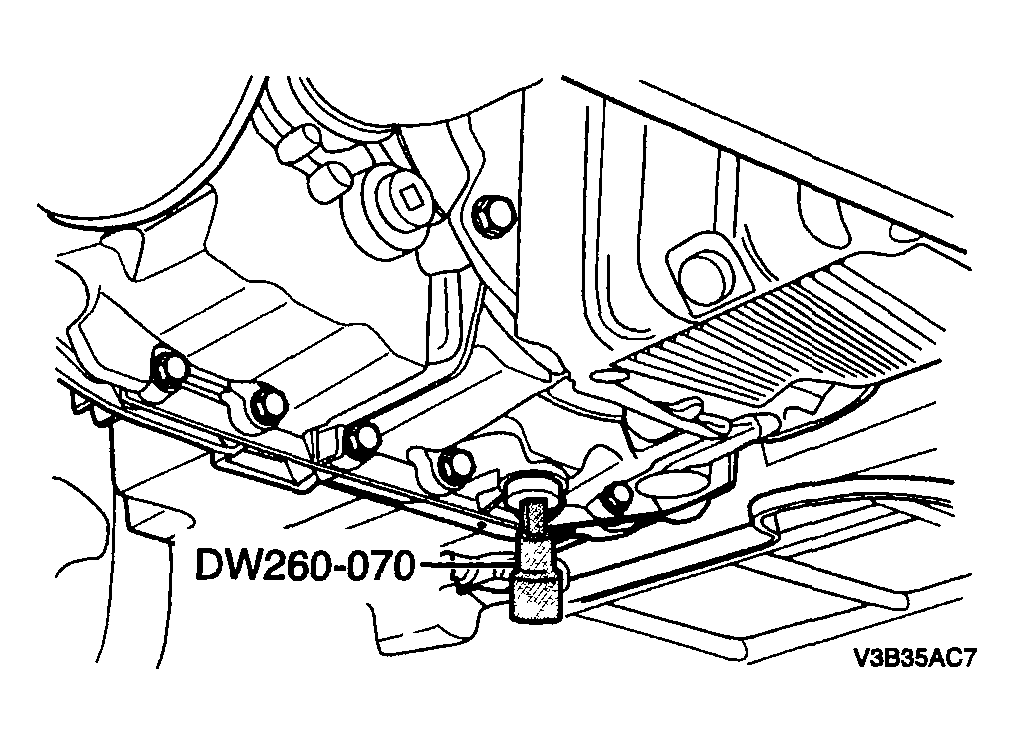

    Fig 3: Installing Transaxle Fluid Drain Plug
    G04103561Courtesy of SUZUKI OF AMERICA CORP.
  8. Lower the vehicle.
  9. Connect the transaxle wiring harness and the PNP switch electrical connector.
  10. Refill the transaxle fluid. Refer to "TRANSAXLE FLUID LEVEL CHECKING PROCEDURE :".
  11. Connect the negative battery cable.

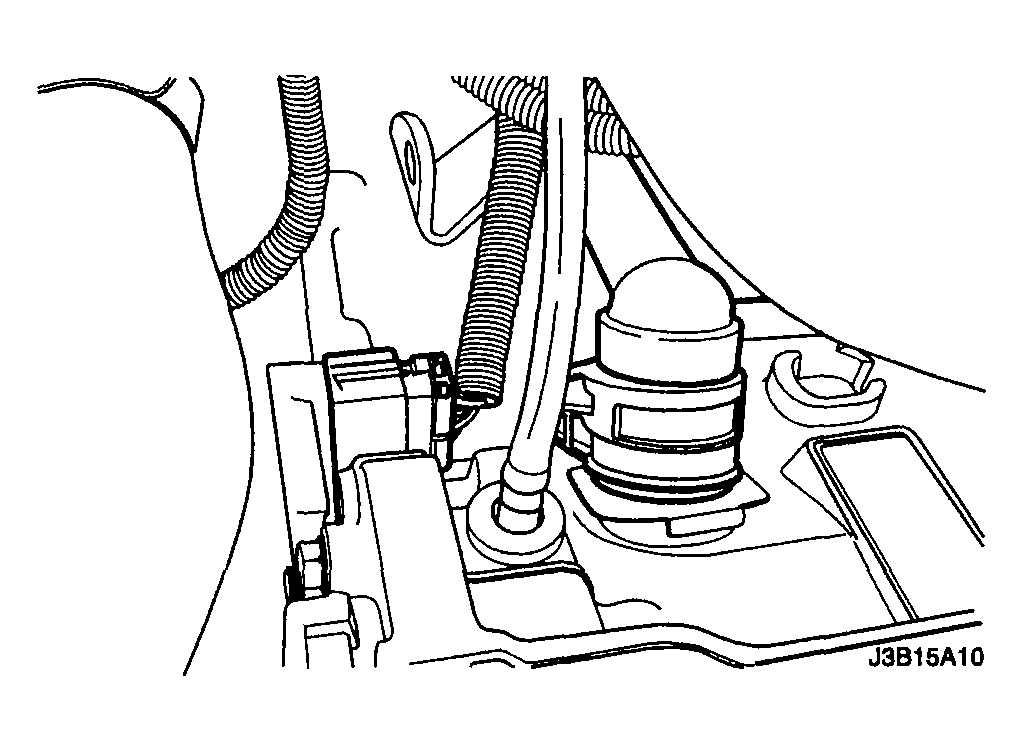

    Fig 4: Identifying Transaxle Wiring Harness And PNP Switch Electrical Connector
    G04103562Courtesy of SUZUKI OF AMERICA CORP.
