Transaxle Components

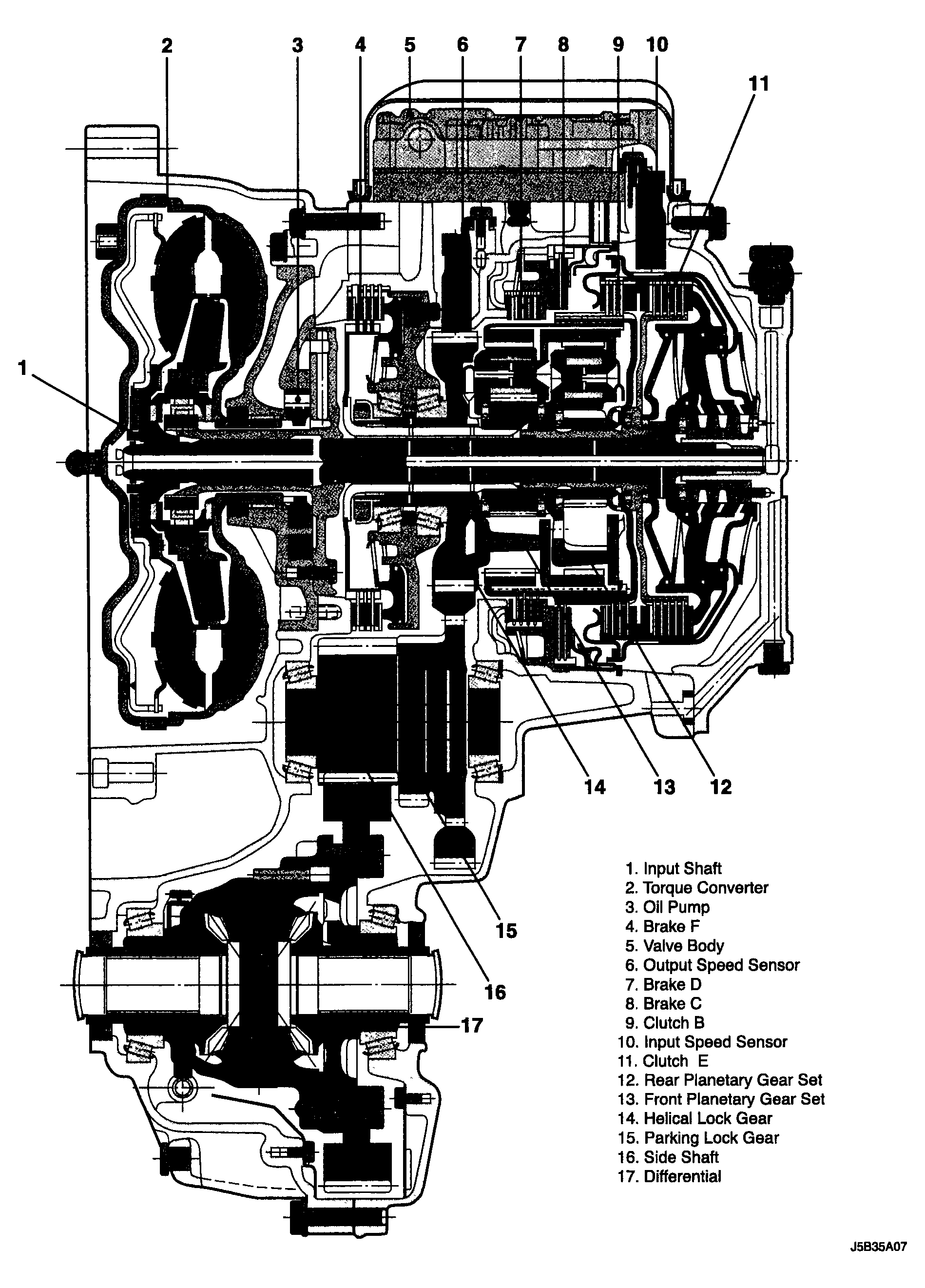

Fig 1: Cross Sectional View Of Transaxle
Courtesy of SUZUKI OF AMERICA CORP.
Courtesy of SUZUKI OF AMERICA CORP.
