Data Link Connector (DLC)
The data link connector (DLC) is a multiple cavity connector. The DLC provides the means to access serial data from the TCM to aid in powertrain diagnosis. The DLC allows the technician to use a scan tool to monitor various systems and display diagnostic trouble codes (DTCs). The DLC connector is located within the driver's compartment, directly below the steering column.

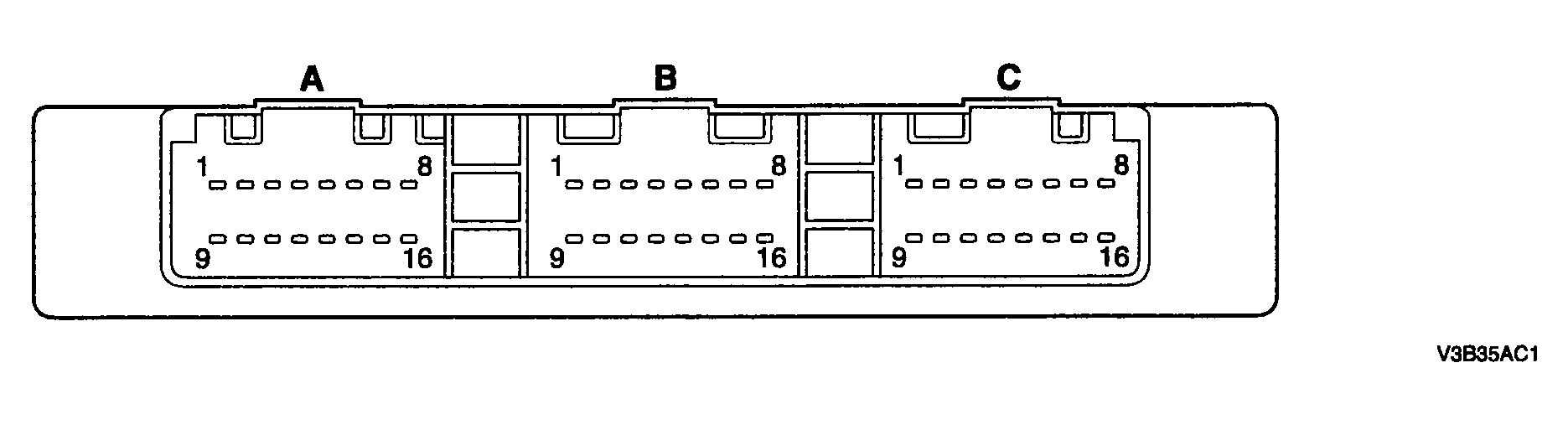

DATA LINK CONNECTOR (CAN TYPE) 2.0L DOHC (DELPHI 32 BIT) COLORS
| A Connector (Blue) | B Connector (Green) | C Connector (Gray) | |
|---|---|---|---|
| 1 | Solenoid 2 | Fluid Temperature Ground | Selector Lever Line L1 |
| 2 | Not Used | Input Speed Sensor (+) | Not Used |
| 3 | Pressure Control Solenoid Valve (EDS 4) | BAT + | Not Used |
| 4 | TFT Sensor | Input Speed Sensor (-) | Hold Mode Switch |
| 5 | Stoplamp Switch | Output Speed Sensor (-) | Not Used |
| 6 | Hold Mode Indicator | Selector Lever Line L3 | EDS Supply |
| 7 | DLC | Input Speed Sensor Ground | EDS Supply |
| 8 | CAN High | Speedometer | Solenoid Supply |
| 9 | Solenoid 1 | Not Used | Not Used |
| 10 | Pressure Control Solenoid Valve (EDS 5) | Output Speed Sensor (+) | Not Used |
| 11 | Pressure Control Solenoid Valve (EDS 3) | Selector Lever Line L4 | Not Used |
| 12 | Pressure Control Solenoid Valve (EDS 6) | Ground | Not Used |
| 13 | Not Used | Ground | Not Used |
| 14 | Not Used | Not Used | Not Used |
| 15 | Not Used | Selector Lever Line L2 | IG ON |
| 16 | CAN Low | Not Used | IG ON |
