DTC U0073 CAN Bus OFF Failure: Notes

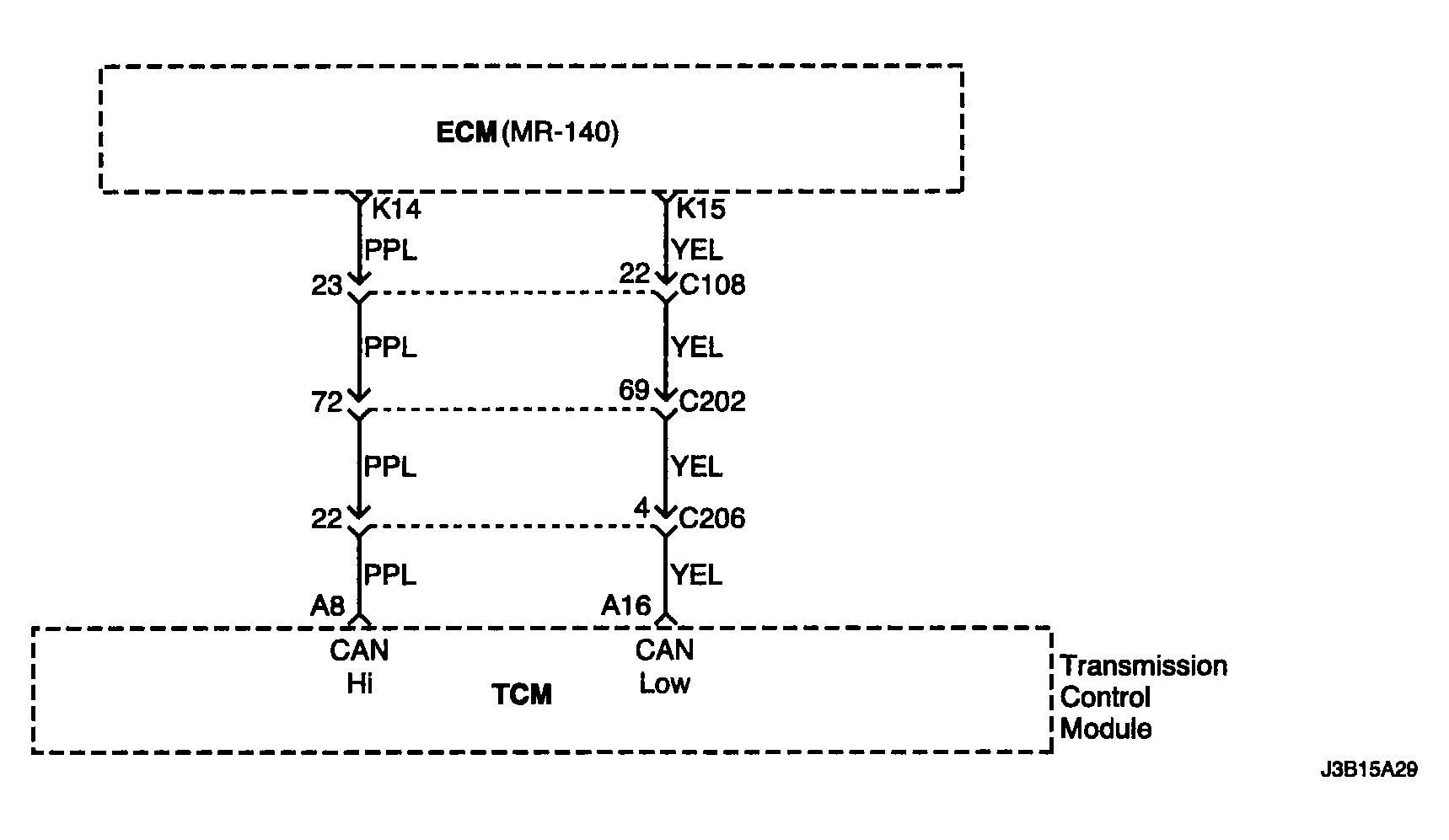

Fig 1: DTC U0073 CAN Bus OFF Failure Circuit
G04103500Courtesy of SUZUKI OF AMERICA CORP.
