DTC P0722 Output Speed Sensor (OSS) Circuit No Signal: Notes

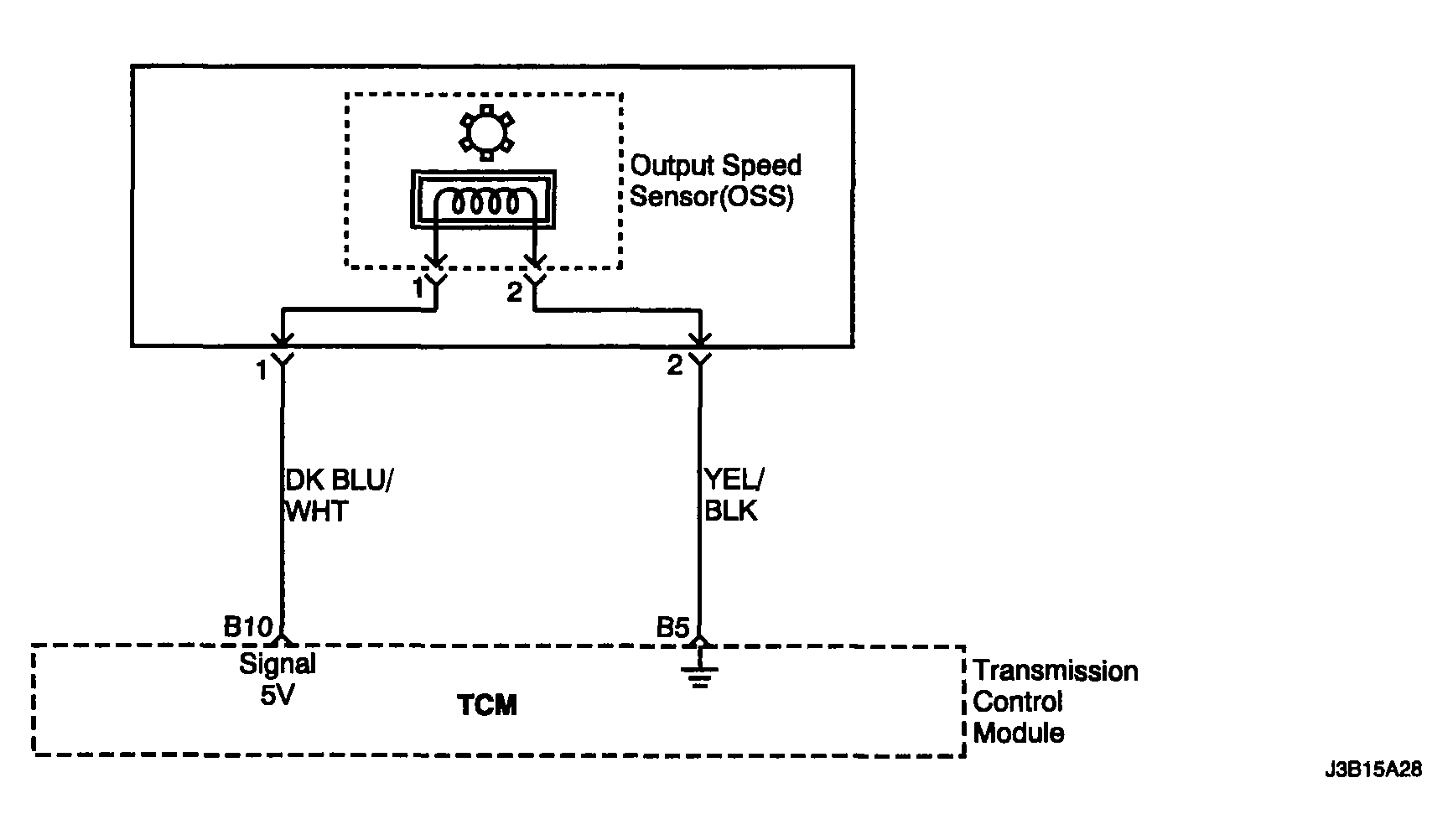

Fig 1: DTC P0722 Output Speed Sensor (OSS) Circuit
G04103472Courtesy of SUZUKI OF AMERICA CORP.
