Crankshaft Position (CKP) Sensor Removal and Installation: Installation

Insert the CKP sensor into the engine block.
Install the CKP sensor retaining bolt.
Tighten

Tighten the crankshaft position sensor retaining bolt to 8 N.m (71 lb-in).
Connect the CKP sensor connector.
Install the accessory mounting bracket with the bolts.
Tighten

Tighten the accessory mounting bracket bolts to 37 N.m (27 lb-ft).

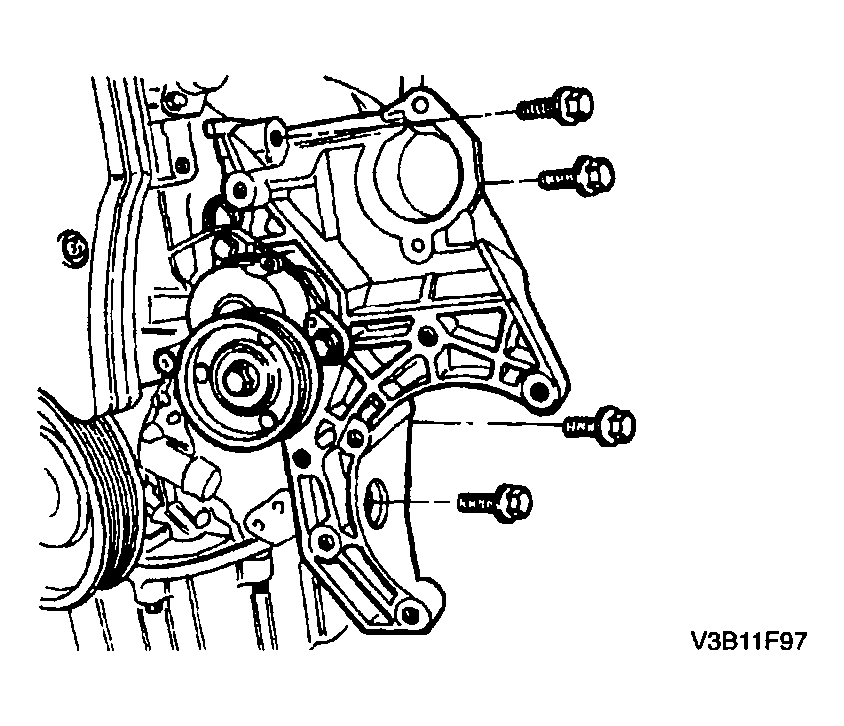

Fig 1: Installing Accessory Mounting Bracket With Bolts
Courtesy of SUZUKI OF AMERICA CORP.
Install the rear A/C mounting bracket.
Tighten

Tighten the rear A/C mounting bracket bolts to 35 N.m (26 lb-ft).
Install the A/C compressor. Refer to "COMPRESSOR REMOVAL AND INSTALLATION :"
Install the power steering pump. Refer to "PUMP ASSEMBLY REMOVAL AND INSTALLATION :"
Connect the negative battery cable.

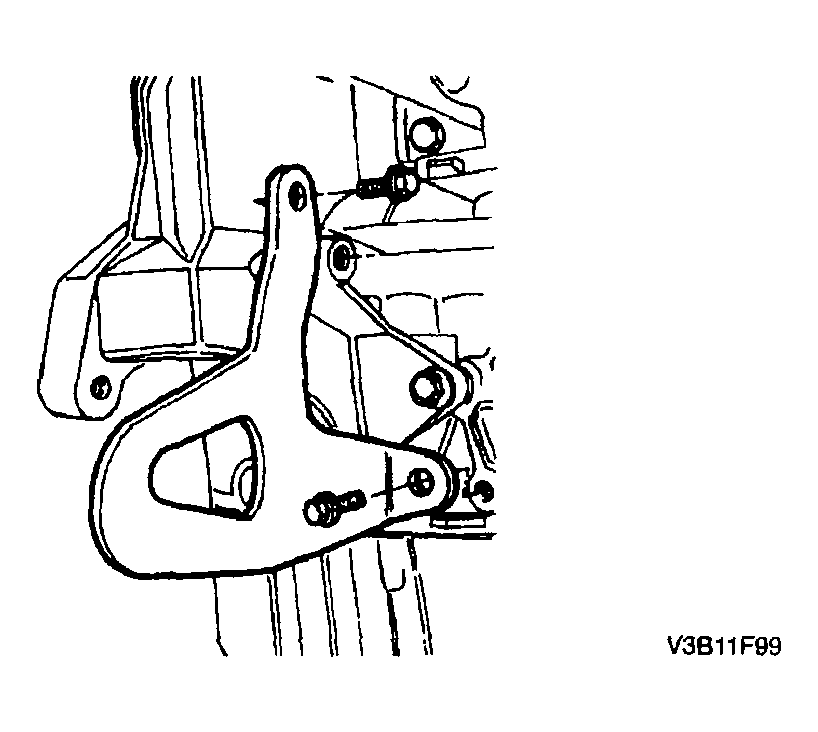

Fig 2: Installing Rear A/C Mounting Bracket
Courtesy of SUZUKI OF AMERICA CORP.
