Tools Required

DW260-140 Clutch B Stop Ring Remover/Installer

DW260-150 Clutch E Stop Ring Remover/Installer

1. Remove the rear cover. Refer to "REAR COVER DISASSEMBLY AND ASSEMBLY :".
2. Remove the two sealing rings (clutch B/E).

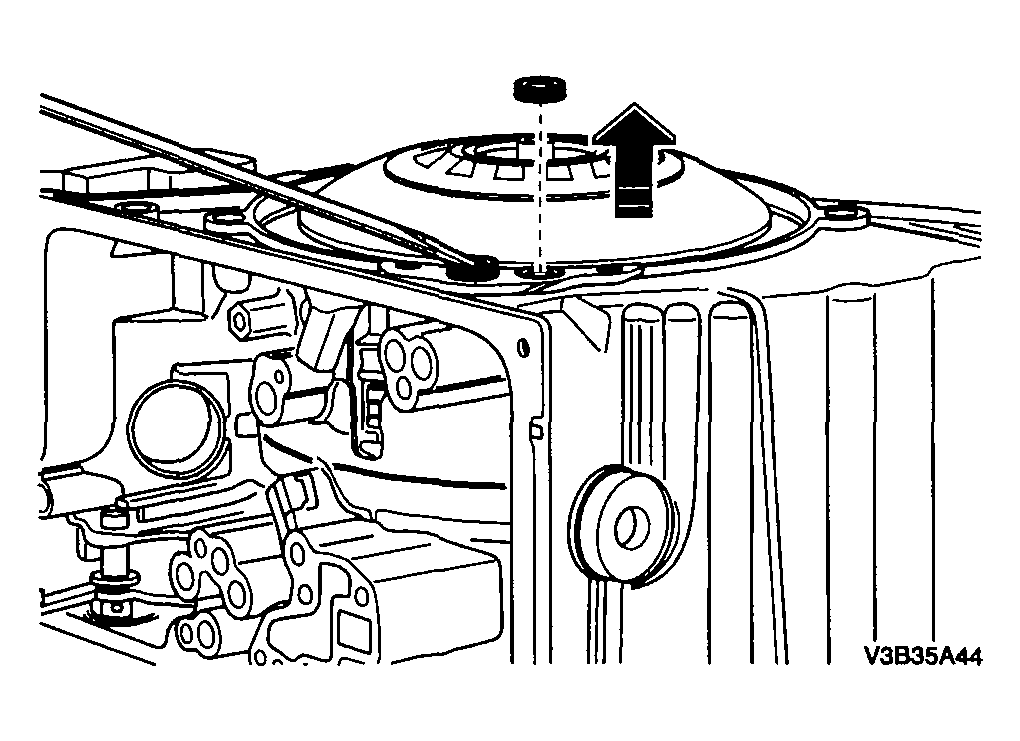

   Fig 1: Removing Sealing Ring

   Courtesy of SUZUKI OF AMERICA CORP.
3. Take out input shaft with clutch B/E.

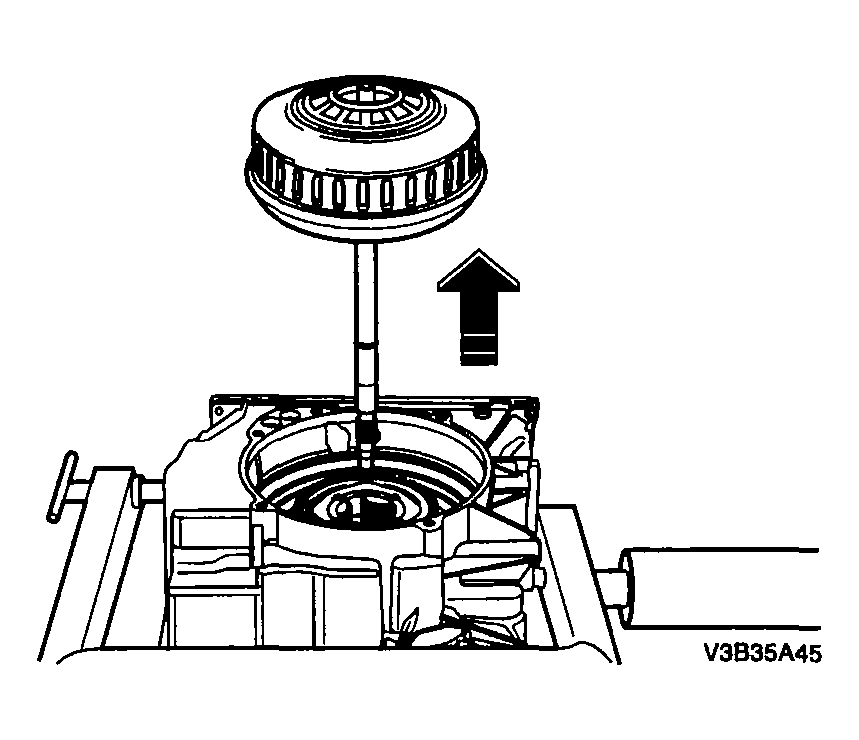

   Fig 2: Removing Input Shaft With Clutch B/E

   Courtesy of SUZUKI OF AMERICA CORP.
4. Remove needle bearing and thrust washer.
5. Remove shim.
   Fig 3: Removing Needle Bearing And Thrust Washer

   Courtesy of SUZUKI OF AMERICA CORP.
6. Take out the retaining snap ring.

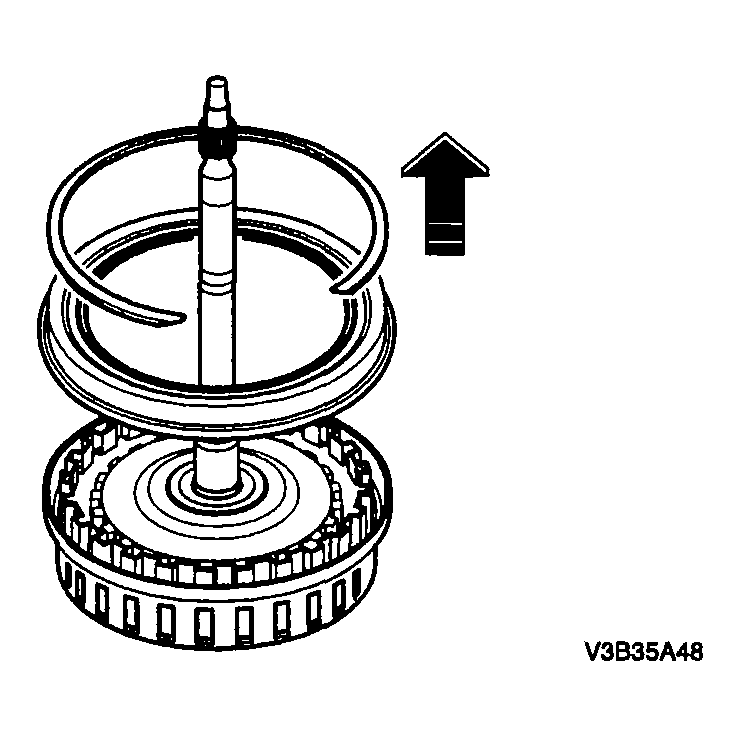

   Fig 4: Removing Retaining Snap Ring

   Courtesy of SUZUKI OF AMERICA CORP.
7. Take out the piston B.

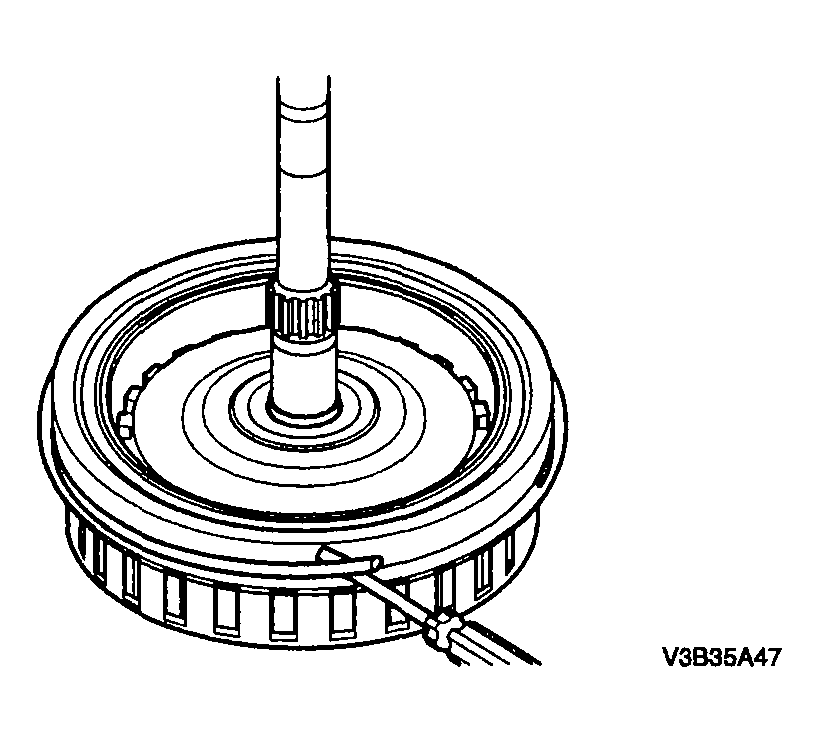

   Fig 5: Removing Piston B

   Courtesy of SUZUKI OF AMERICA CORP.
8. Remove disc set B.

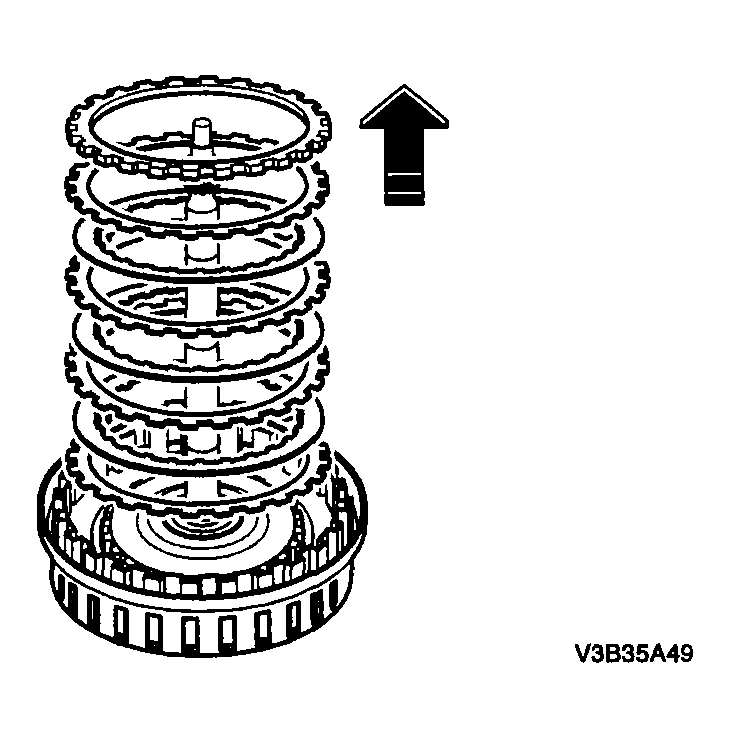

   Fig 6: Removing Disc Set B

   Courtesy of SUZUKI OF AMERICA CORP.

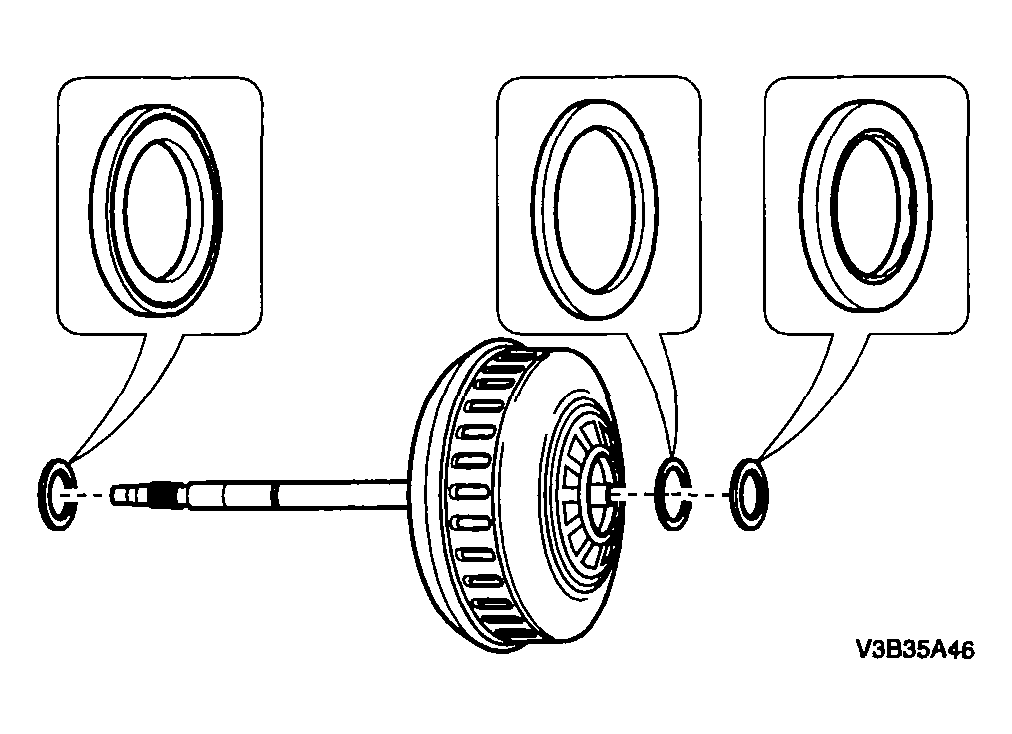

9. Take out the piston rings.
