DTC P0721 Output Speed Sensor (OSS) Circuit Range/Performance: Notes

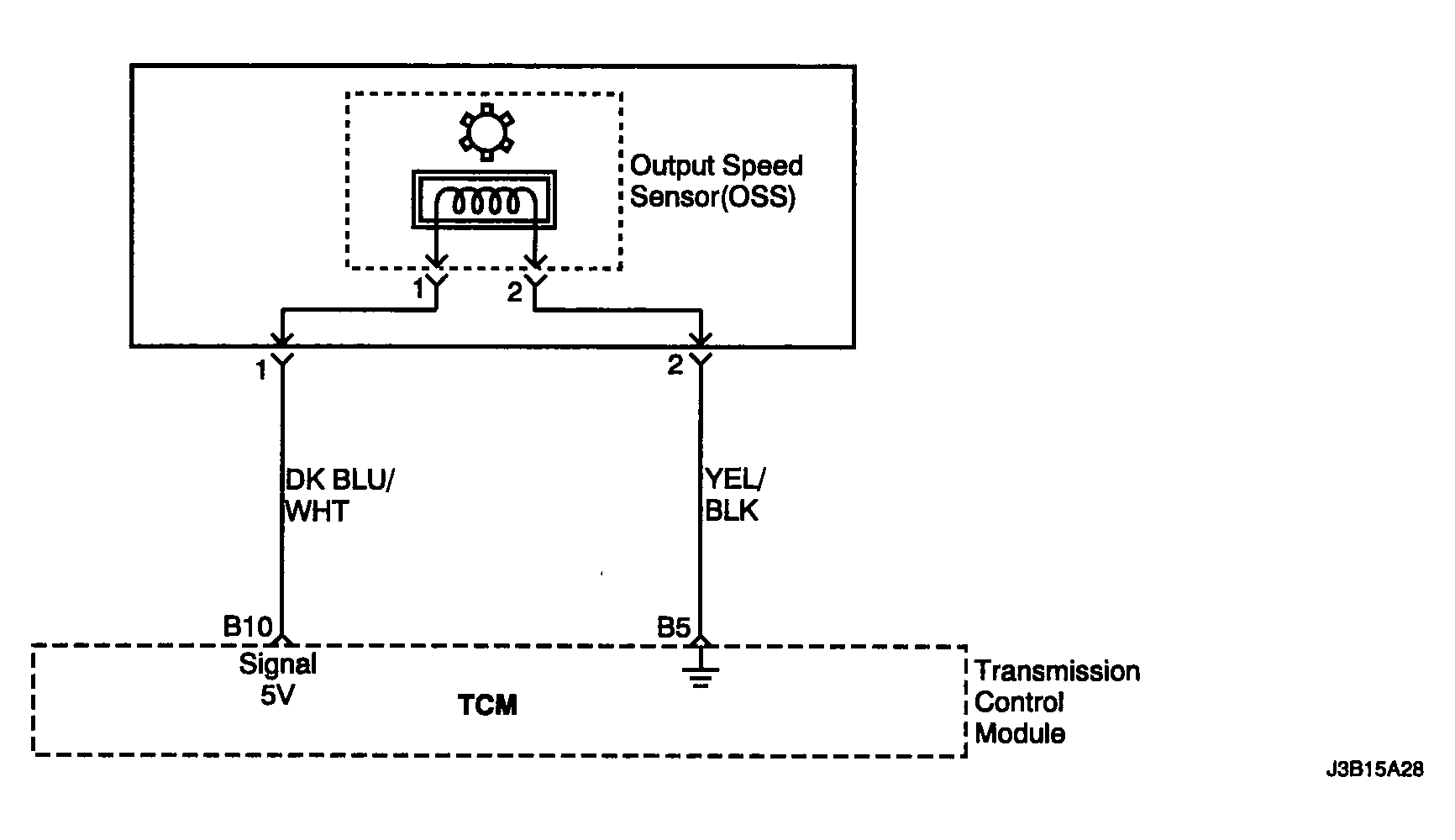

Fig 1: DTC P0721 Output Speed Sensor (OSS) Circuit
G04103471Courtesy of SUZUKI OF AMERICA CORP.
