Manifold Absolute Pressure Sensor Removal and Installation: Removal
- Disconnect the negative battery cable.
- Disconnect the fuel rail. Refer to "FUEL RAIL AND INJECTORS REMOVAL AND INSTALLATION :".

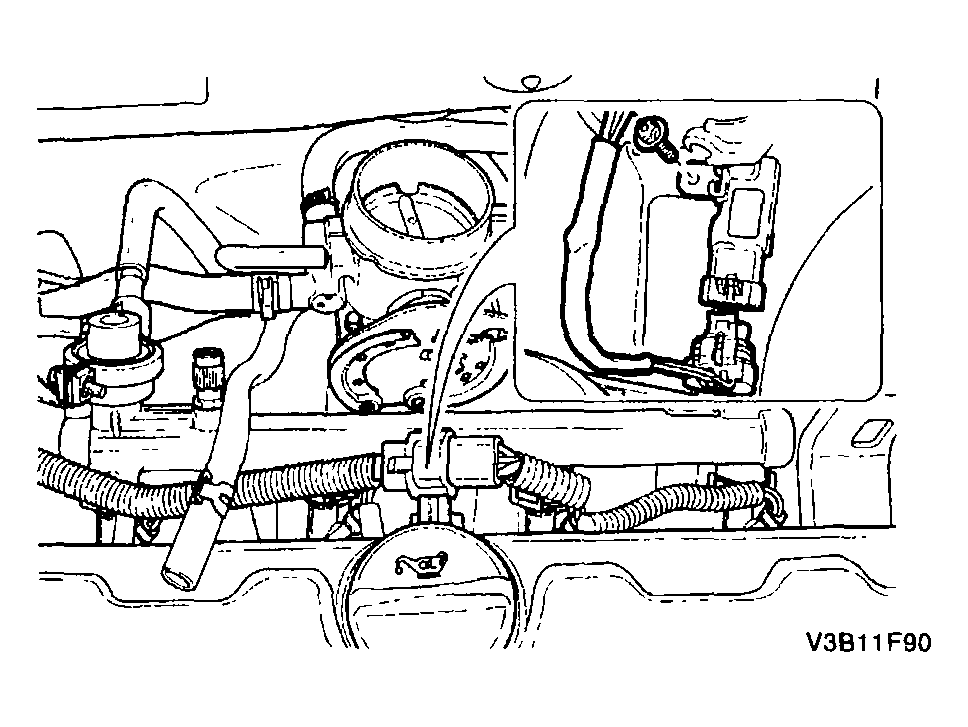

- Disconnect the manifold absolute pressure (MAP) sensor connector from the MAP sensor.
- Remove the MAP sensor retaining bolt.
- Remove the MAP sensor from the intake manifold.
